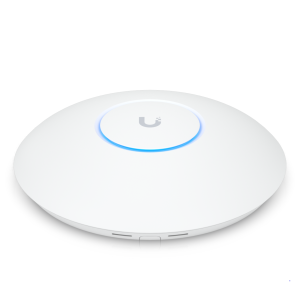

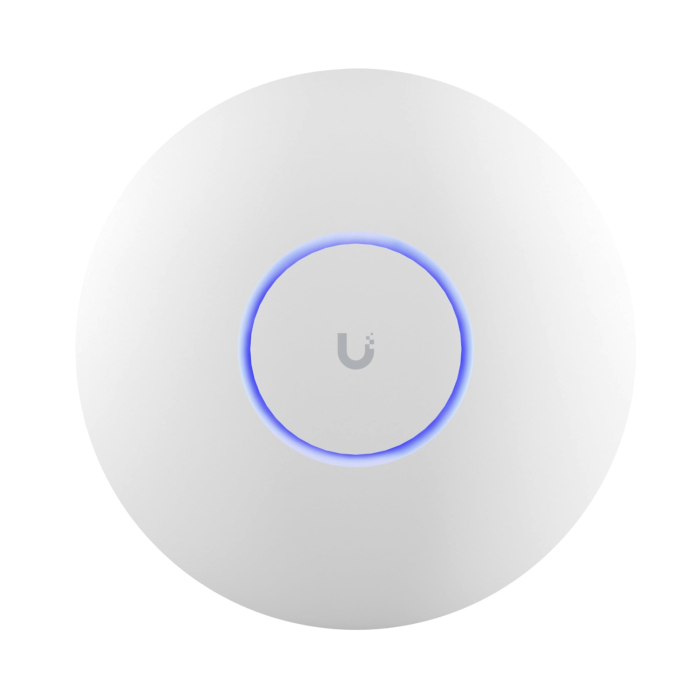

Ubiquiti U7-Pro-Max: Maximum Density, Maximum Performance
The U7-Pro was the entry into WiFi 7 – the U7-Pro-Max is the perfection. It was developed specifically for environments where "many devices" doesn't mean 20, but 200 or more.
Thanks to the extended antenna configuration (4x4 MIMO), it can process significantly more data streams simultaneously than the standard model.
The Invisible Guardian: Dedicated Spectral Radio
The feature that network pros will love: The U7-Pro-Max has an additional, dedicated radio unit just for analysis.
While the main radios shovel data, this extra radio permanently scans the entire frequency spectrum for interference, radar signals, or congested channels. The AP thus optimizes itself without your users feeling even a millisecond of interruption.
Performance Stats Breaking Boundaries
We are talking about a theoretical total capacity of **15.1 Gbps**.
* 6 GHz (4x4 MIMO): Up to 5,765 Mbps.
* 5 GHz (4x4 MIMO): Up to 8,648 Mbps – massive bandwidth for legacy devices.
* 2.4 GHz (2x2 MIMO): 688 Mbps for IoT and legacy.
To feed this AP, a 2.5 GbE Switch (PoE+) is mandatory – anything else would be a bottleneck.
Detailed Technical Data
| General & Mechanical | |
| Manufacturer / Model: | Ubiquiti / U7-Pro-Max |
| Dimensions: | Ø 206 x 46 mm |
| Weight: | 680 g |
| Enclosure Material: | Polycarbonate, Metal |
| Mounting: | Wall or Ceiling (Bracket included) |
| Operating Temperature: | -30°C to +60°C |
| Hardware & Connectivity | |
| Network Interface: | 1x 1/2.5 GbE RJ45 Port |
| Power Supply: | PoE+ (802.3at) |
| Power Consumption: | Max. 21 Watt |
| Special Feature: | Dedicated Spectral Scanning Radio |
| WiFi Specifications | |
| WiFi Standards: | 802.11a/b/g/n/ac/ax/be (WiFi 7) |
| Total Throughput: | 15.1 Gbps (Aggregate) |
| Frequency Bands: | 2.4 GHz / 5 GHz / 6 GHz |
| MIMO Configuration: | 2.4 GHz: 2x2 5 GHz: 4x4 6 GHz: 4x4 |
| Antenna Gain: | 2.4 GHz: 4.0 dBi 5 GHz: 6.0 dBi 6 GHz: 5.8 dBi |
| Max. Throughput Rate: | 2.4 GHz: 688 Mbps 5 GHz: 8,648 Mbps 6 GHz: 5,765 Mbps |
| TX Power: | 2.4 GHz: 22 dBm 5 GHz: 26 dBm 6 GHz: 23 dBm |
| Channel Widths: | Up to 320 MHz (in 6 GHz band) |
| Software & Features | |
| Security: | WPA-PSK, WPA-Enterprise (WPA2/WPA3) |
| BSSID: | Up to 8 per radio |
| VLAN: | 802.1Q |
| Concurrent Clients: | 500+ |
Scope of Delivery
| 1 x Ubiquiti U7-Pro-Max Access Point |
| 1 x Mounting Plate (Metal) for Ceiling/Wall |
| 1 x Screw Kit & Anchors |
| Note: PoE Injector is NOT included! |
