Your Unwavering Partner for Extreme Outdoor Projects
Are you looking for a Network solution that can withstand even the toughest conditions? The Teltonika OTD140 is exactly what you need! This rugged outdoor router has been specially developed to ensure reliable 4G 4G Cat 4 connectivity under demanding environmental conditions. Imagine operating construction sites, agricultural businesses, or remote measuring stations without worrying about the internet connection. The IP55 protection rating housing effectively protects it from dust and water jets, while the wide operating temperature range of -40 °C to 75 °C ensures it performs equally well in heat and cold.
Maximum Reliability for Critical Applications
Is an uninterrupted connection crucial for your projects? The OTD140 offers you unbeatable redundancy thanks to its Dual-SIM function and intelligent failover. Should a mobile Network weaken or fail, the cellular router automatically switches to the second SIM card. This means for you: no downtime, no data loss, just continuous connectivity. This function is particularly valuable for M2M and IoT applications, where every second counts and reliable data transmission is essential.
Easy Installation and Flexible Power Supply thanks to PoE
Forget complicated Cabling and searching for power outlets! The Teltonika OTD140 significantly simplifies your installation through its integrated PoE functionality. It can not only be powered itself via Power over Ethernet (PoE-In) but also offers a PoE-Out port. This allows you to power end devices such as IP Cameras or external WiFi Access Points directly via the same Ethernet cable. This saves you additional cables, power supplies, and installation effort, especially in hard-to-reach locations. Perfect in combination with our PoE Injectors / Power Supplies.
Versatile Applications and Smart Remote Management
Wherever you need a robust and reliable connection, the OTD140 is your partner. Whether for monitoring construction sites, networking wind and solar farms, or data transmission in agriculture – this industrial router masters every challenge. With the powerful RutOS and the Teltonika Remote Management System (RMS), you always maintain full control. Manage your devices remotely, perform firmware updates, and monitor the status – all conveniently from your desk. This minimizes maintenance trips and optimizes your operational processes.
Strengths & Notes at a Glance
- Pro: Extreme Weather Resistance (IP55): The robust IP55 housing made of PC+ASA plastic effectively protects the router from dust, water jets, and adverse weather conditions such as rain, snow, and sandstorms, ensuring reliable outdoor operation.
- Pro: Reliable Connectivity through Dual-SIM and Failover: With two SIM card slots and automatic switching mechanisms (in case of weak signal, data limit, roaming, etc.), the OTD140 ensures an uninterrupted 4G 4G connection, which is essential for critical applications.
- Pro: Integrated PoE Functionality (In/Out): The router features a PoE-In port for its own power supply and a PoE-Out port to power end devices such as IP Cameras or external WiFi Access Points directly via the Ethernet cable (up to 15W), which simplifies installation and eliminates the need for additional power sources.
- Note: No integrated WiFi: The OTD140 itself does not offer a WiFi function for direct wireless connection for end devices. For WiFi connectivity, a separate WiFi Access Point must be connected, which can be powered via the router's PoE-Out port if required.
- Note: 4G 4G Cat 4 (no 5G): Although 4G Cat 4 is sufficient for many applications, the router does not support the latest 5G mobile communication standards. This could be a limiting factor for future applications with very high bandwidth requirements.
Specifications & Features
| Manufacturer: | Teltonika |
| Model: | OTD140 |
| Cellular Module: | 4G (4G Cat 4), 3G, 2G |
| 4G Cat 4 Download: | up to 150 Mbps |
| 4G Cat 4 Upload: | up to 50 Mbps |
| 3G Download: | up to 21 Mbps |
| 3G Upload: | up to 5.76 Mbps |
| 2G Speeds: | up to 236.8 kbps (DL/UL) |
| SIM Cards: | 2 x Mini-SIM slots (2FF), 1.8 V/3 V |
| SIM Switching: | Automatic (signal, data limit, roaming, etc.) |

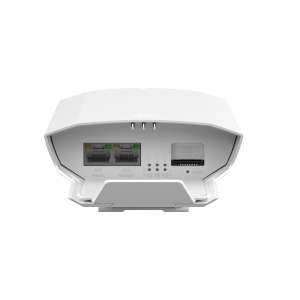

| Ethernet Ports: | 2 x RJ45, 10/100 Mbps (configurable as WAN/LAN) |
| PoE-In Standard: | IEEE 802.3af/at (PD - Powered Device) |
| PoE-In Voltage Range: | 42.5 – 57.0 VDC |
| PoE-In Max. Power Consumption: | 21 W |
| PoE-Out Standard: | IEEE 802.3af (PSE - Power Source Equipment), Alternative B |
| PoE-Out Voltage Range: | 42.5 – 57.0 VDC |
| PoE-Out Max. Power per Port: | 15 W |
| CPU: | Mediatek, 580 MHz, MIPS 24KEc |
| RAM: | 128 MB |
| Flash Memory: | 16 MB |
| Antennas: | 2 x internal omnidirectional |
| Antenna Frequency Range: | 698-960 MHz / 1710-2690 MHz |
| Antenna Impedance: | 50 Ω |
| Antenna VSWR: | <3.5 (698-960 MHz), <3 (1710-2690 MHz) |
| Antenna Gain: | <3 dBi (698-960 MHz), <4.5 dBi (1710-2690 MHz) |
| Operating System: | RutOS (based on OpenWrt Linux OS) |

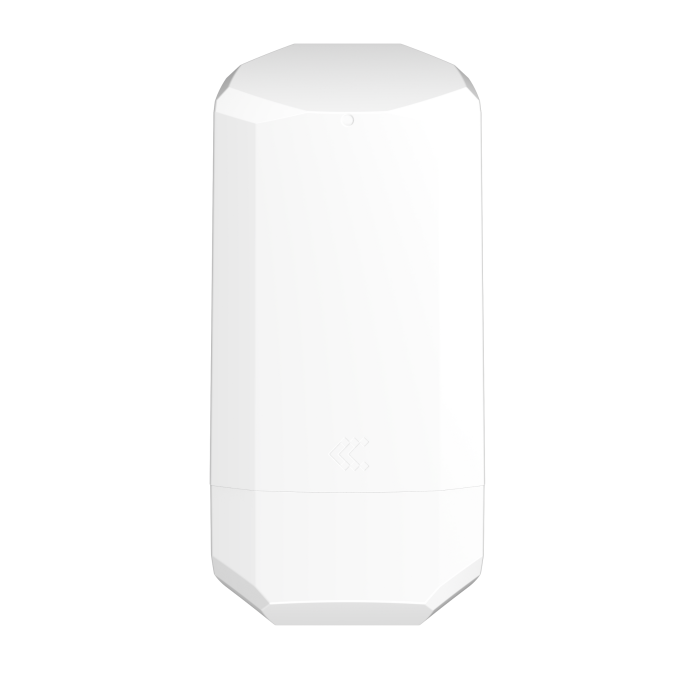

| Housing Material: | Plastic (PC+ASA), IP55 certified |
| Dimensions (W x H x D): | 110 x 49.3 x 235 mm |
| Weight: | 855 g |
| Operating Temperature: | -40 °C to 75 °C |
| Operating Humidity: | 10% to 90% non-condensing |

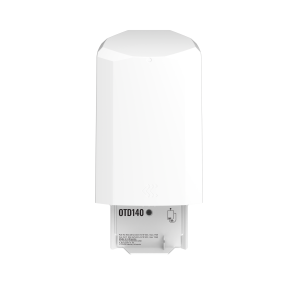

| Mounting Options: | Integrated bracket for vertical surface or pole mounting |
| Power Consumption (Max. with PoE-Out): | < 21 W |
| VPN Support: | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc |
| Management: | WEB UI, FOTA, SSH, SMS, RMS |
Scope of Delivery
| 1 x Teltonika OTD140 |
| 1 x QSG (Quick Start Guide) |
| 1 x Mounting Kit |
Frequently Asked Questions (FAQ)
What does the IP55 certification of the Teltonika OTD140 mean?
The IP55 certification means that your OTD140 is protected against harmful amounts of dust and against water jets from any angle. This makes it ideal for outdoor use, where it must withstand various weather conditions.
Can the Teltonika OTD140 power other devices?
Yes, your OTD140 is a PoE+ router and features a PoE-Out port that can power other end devices such as surveillance cameras or Wi-Fi access points with up to 15W of power via the Ethernet cable.
How is the Teltonika OTD140 powered?
Your OTD140 is powered via PoE-In (802.3af/at) through an Ethernet cable. A suitable PoE power supply or PoE injector is usually not included and must be purchased separately.
Does the Teltonika OTD140 support dual SIM cards for increased reliability?
Yes, your OTD140 features two Mini-SIM slots and supports dual SIM with automatic failover. This means it can automatically switch to the second SIM card in case of a weak signal, data limit, or Network outage, to ensure a continuous connection.
What management options does the Teltonika OTD140 offer?
You can manage your OTD140 via a Web User Interface (WEB UI), SSH, SMS, and the Teltonika Remote Management System (RMS). RMS allows for comprehensive remote monitoring and management of all your Teltonika devices, even without public IP addresses.
Is the Teltonika OTD140 suitable for 5G networks?
No, your Teltonika OTD140 supports 4G LTE Cat 4, 3G, and 2G mobile networks. It is not designed for 5G networks.
