The Problem: Poor Reception and Unreliable Outdoor Connections
You know the scenario: Outside, 5G reception is excellent, but as soon as you enter the building, performance drops or the connection becomes unstable. Thick walls, modern insulation, or simply the distance to the nearest cell tower can be the cause. Conventional indoor routers are not designed for such challenges and often do not deliver the required bandwidth or stability you need for business-critical applications or demanding private use.
The Solution: Zyxel FWA710 – Your Outdoor Gateway to High-Speed 5G
The Zyxel FWA710 Outdoor 5G Router is the answer to these problems. As a weather-resistant device with IP68 certification, it is installed exactly where reception is best: outdoors. Its powerful, integrated 4x4 MIMO directional antennas with up to 9 dBi gain capture the 5G signal directly from the cell tower and transmit it reliably into your building via a single Ethernet cable – thanks to Power over Ethernet (PoE). This way, you completely bypass signal blockages and benefit from maximum speed and stability.
Impressive Details: Performance, Management, and Robustness
The FWA710 supports both 5G NR and LTE Cat 19, delivering theoretical download rates of up to 4.67 Gbit/s and upload rates of up to 2.5 Gbit/s. Integration into the Zyxel Nebula Cloud enables easy remote management and monitoring, significantly simplifying network administration and reducing operating costs. With its 2.5 Gigabit Ethernet Port and support for Bridge or Router mode, it is extremely flexible, whether as a primary internet source or as a reliable failover for your existing infrastructure. The robust design with industrial-grade components ensures reliable operation in a wide temperature range from -40°C to 60°C.
Your Advantage: Future-Proof Connectivity, Simple and Reliable
With the Zyxel FWA710, you invest in a future-proof network solution that offers you maximum performance and reliability not only today but also tomorrow. Easy installation via the Zyxel Air App and plug-and-play functionality reduce installation effort and costs. Whether for your business, home office, or remote locations – the FWA710 ensures that you are always optimally connected and can unleash the full potential of 5G.
Technical Specifications
| Manufacturer: | Zyxel |
| Model: | FWA710 (FWA-710-EU0102F) |
| Product Type: | Outdoor 5G NR Router |
| Mobile Standard: | 5G NR (Sub-6 GHz), LTE Cat 19 |
| 5G NR Download (max. theoretical): | Up to 4.67 Gbit/s |
| 5G NR Upload (max. theoretical): | Up to 2.5 Gbit/s |
| LTE Download (max. theoretical): | Up to 1.6 Gbit/s |
| Antenna Type: | Integrated 4x4 MIMO High-Gain Directional Antennas |
| Antenna Gain: | Up to 9 dBi per element |
| WLAN (for Management): | 802.11n, 2.4 GHz, 300 Mbit/s (2x2 internal) |

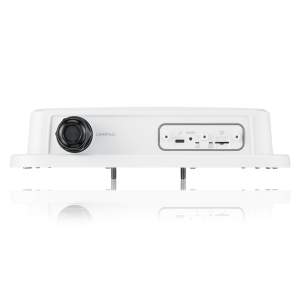

| Ethernet Ports: | 1 x 2.5 Gigabit Ethernet (RJ-45, PoE capable) |
| SIM Card Slot: | 1 x Micro-SIM (3FF) |
| Management: | Nebula Cloud Management, Web GUI, Zyxel Air App |
| IP Rating: | IP68 (Dust and waterproof) |
| Lightning Protection: | K.21 Enhanced Mode, 6 KV |
| Operating Modes: | Router Mode, Bridge Mode (IP Passthrough) |
| IPv4/IPv6: | Dual Stack Support |
| Operating Temperature: | -40°C to 60°C |
| Dimensions (WxDxH): | 255 x 256 x 58 mm |
| Power Supply: | PoE (802.3af/at), PoE Injector included |
Package Contents
| 1 x Zyxel FWA710 Outdoor 5G Router |
| 1 x Standard 802.3af/at Power over Ethernet (PoE) Injector |
| 1 x Ethernet Cable (1.8 m, yellow, 8P8C) |
| 1 x PG19 Cable Gland |
| 1 x Wall/Pole Mount Kit |
| 1 x Quick Start Guide |
| 1 x Warranty Card |
| 1 x DoC and Safety Instructions |
Häufig gestellte Fragen (FAQ)
What is the main advantage of the Zyxel FWA710 over an indoor 5G router?
The Zyxel FWA710 is specifically designed for outdoor use and features IP68 certification, making it dustproof and waterproof. Its powerful high-gain directional antennas enable optimal signal reception directly from the cell tower, bypassing signal blockages caused by building walls and achieving significantly higher speeds and a more stable connection compared to indoor devices.
What speeds can I expect with the Zyxel FWA710?
The Zyxel FWA710 supports 5G NR with theoretical download speeds of up to 4.67 Gbps and upload speeds of up to 2.5 Gbps. In LTE mode (Cat 19), download rates of up to 1.6 Gbps are possible. However, actual speeds depend heavily on the mobile carrier and local network conditions.
Can I manage the Zyxel FWA710 via the cloud?
Yes, the Zyxel FWA710 is fully integrated into the Zyxel Nebula Cloud platform. This allows for easy and flexible remote management, monitoring, and deployment of the device from anywhere, simplifying network administration and reducing operating costs. A mobile app for iOS and Android is also available.
Is Power over Ethernet (PoE) included with the Zyxel FWA710 and how does it work?
Yes, the Zyxel FWA710 is powered via PoE (Power over Ethernet), and a suitable PoE injector is included in the scope of delivery. This means that both data and power are transmitted over a single Ethernet cable, significantly simplifying outdoor installation as no separate power outlet is needed near the device.
What are the application possibilities of the Zyxel FWA710?
The Zyxel FWA710 is extremely versatile. It can serve as a primary 5G internet connection for businesses or households, as a reliable failover for existing networks, or as a transparent 5G modem in bridge mode for professional gateways and firewalls (e.g., Ubiquiti UDM). Its robustness and high speeds make it ideal for demanding environments and applications.
