Maximum Performance through Zero-Loss Design
The decisive advantage of the QuSpot AX09S lies in its unique design. Instead of connecting an external Antenna via a long, attenuating Coaxial Cable to your router, you install your Teltonika RUTX09 directly into the weatherproof Enclosure. The signal from the integrated Antennas is thus transmitted to the router's modem via the shortest possible path, virtually loss-free. This Teltonika RUTX09 signal amplification without cable loss leads to significantly better signal quality (SINR), higher speeds, and a more stable connection, especially in areas with weak Network coverage.
Built for Extremes: IP67 Protection for Boats, Motorhomes & Co.
Whether on a mast, on the house wall, or on the roof of your vehicle – the QuSpot AX09S is designed for tough outdoor use. The Enclosure made of robust ABS plastic meets protection class IP67, meaning it is completely dustproof and even protected against temporary submersion. Rain, snow, spray, or extreme temperatures from -40 °C to +75 °C cannot harm your valuable router. Power is supplied cleverly via Passive PoE (Power over Ethernet), so a single Network Cable is sufficient for data and power. This makes installation flexible and uncomplicated.
Omni-directional Antenna with GPS for Full Flexibility
Forget the tedious alignment of Antennas. The QuSpot AX09S is a powerful IP67 Omni-directional Antenna for mobile 4G deployment. It receives signals from all directions (360°), what makes it the perfect solution for fixed and mobile applications. Whether you want to improve your internet in a motorhome or establish a reliable connection on your boat – the AX09S consistently delivers good results. Additionally, a dedicated GPS Antenna is integrated, so you can use the location functions of your RUTX09 for fleet management or navigation without restrictions.
Strengths & Notes at a Glance
- Pro: Direct router integration prevents signal loss due to Antenna Cables.
- Pro: Extremely robust and weatherproof IP67 Enclosure reliably protects the electronics.
- Pro: Simplified installation with just one Ethernet Cable thanks to Passive PoE.
- Pro: Integrated GPS Antenna enables location services for mobile applications.
- Pro: 360° omni-directional characteristic makes alignment with transmission masts unnecessary.
- Note: The enclosure does not have integrated WiFi Antennas.
- Note: The Teltonika RUTX09 Router is not included and must be purchased separately.
Specifications & Features
| Manufacturer: | QuWireless |

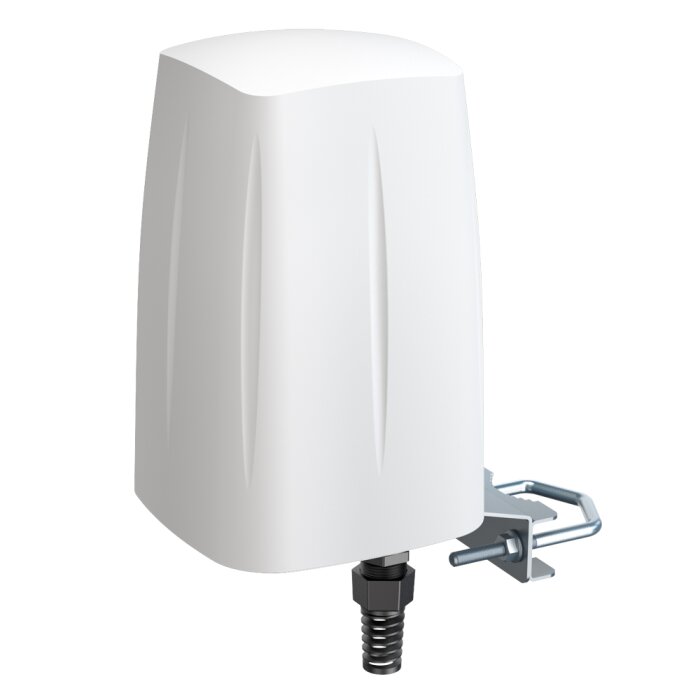

| Model: | QuSpot AX09S |
| Manufacturer Part Number (MPN): | AX09S |
| EAN: | 5907772035047 |
| Product Classification: | Integrated Antenna System in an Enclosure (Accessory) |
| Compatible Routers: | Teltonika RUTX09, Teltonika RUTM09 |
| Number of 4G Antennas: | 2 (for 2x2 MIMO) |
| 4G Antenna Type: | Multiband Omni-directional Antenna |
| Frequency Range 1 (4G): | 694 - 960 MHz |
| Antenna Gain Range 1: | 2 dBi |
| Frequency Range 2 (4G): | 1700 - 2200 MHz |
| Antenna Gain Range 2: | 2 dBi |
| Frequency Range 3 (4G): | 2200 - 2700 MHz |
| Antenna Gain Range 3: | 4 dBi |
| Polarization (4G): | Vertical |
| Horizontal Radiation Pattern: | 360° |
| Vertical Radiation Pattern: | 35° (+/- 5°) |
| Impedance: | 50 Ω |
| VSWR (694-960 MHz): | <1.70, max <2.00 |
| VSWR (1700-2700 MHz): | <1.60, max <2.00 |
| Integrated GPS Antenna: | Yes, dedicated GPS Antenna available |
| Power Supply: | Passive PoE (Power over Ethernet) |
| Protection Class (Ingress Protection): | IP67 (dustproof, protected against temporary submersion) |
| Impact Resistance Rating: | IK08 |
| Housing Material: | ABS, Aluminum, PTFE |
| Color: | White |
| Operating Temperature: | -40 °C to +75 °C |
| Area of Application: | Outdoor area, fixed and mobile installations |
| Dimensions: | 160 x 160 x 240 mm |
| Weight: | 1.5 kg |
Scope of Delivery
| 1 x QuSpot AX09S Antenna Enclosure |
| 1 x Mast Mounting Kit |
| 1 x QuRJ45 (waterproof RJ45 socket) |
| 1 x 8mm Wrench |
Frequently Asked Questions (FAQ)
Do I need to align the antenna with a transmission mast?
No, the QuSpot AX09S is an omnidirectional antenna. It receives signals from all horizontal directions (360°), which significantly simplifies installation as no precise alignment with a specific cell tower is required. This makes it an ideal choice for various Antennas and 4G / LTE Outdoor Antennas setups.
What does protection class IP67 mean for practical use?
IP67 means that the Enclosures are completely dust-tight and can withstand temporary immersion in water. In practice, it reliably protects the internal 4G / 5G Routers from all weather conditions such as heavy rain, snow, and spray.
Why is the signal quality better with this system than with a normal outdoor antenna?
The decisive advantage is the avoidance of Antenna Cables losses. In conventional setups, the long cable between the outdoor Antennas and the 4G / 5G Routers leads to signal attenuation. With the QuSpot system, the router is integrated directly into the antenna unit, meaning the signal is transmitted to the modem without loss.
Can I also receive or send a WiFi signal with this enclosure?
No, the AX09S model is exclusively equipped with 4G and GPS Antennas. It does not have integrated WiFi Antennas and is designed for the Teltonika RUTX09, which does not have WiFi. For other Teltonika 4G / 5G Routers with WiFi, a different solution would be needed.
What additional Accessories do I need for installation?
You absolutely need the Teltonika RUTX09 Router, an outdoor-suitable Ethernet Cables, and a Passive PoE Injectors / Power Supplies if your Ethernet Switch does not provide a corresponding PoE output.
Is the assembly complicated?
No, the assembly is relatively simple. The Enclosures come with a complete mast Mounting Systems kit. Since only an Ethernet Cables needs to be connected and no alignment is necessary, the installation is easily manageable even for laypersons, making Antenna Mounting Accessories straightforward.
