Your Home, Your Seamless Wi-Fi Experience

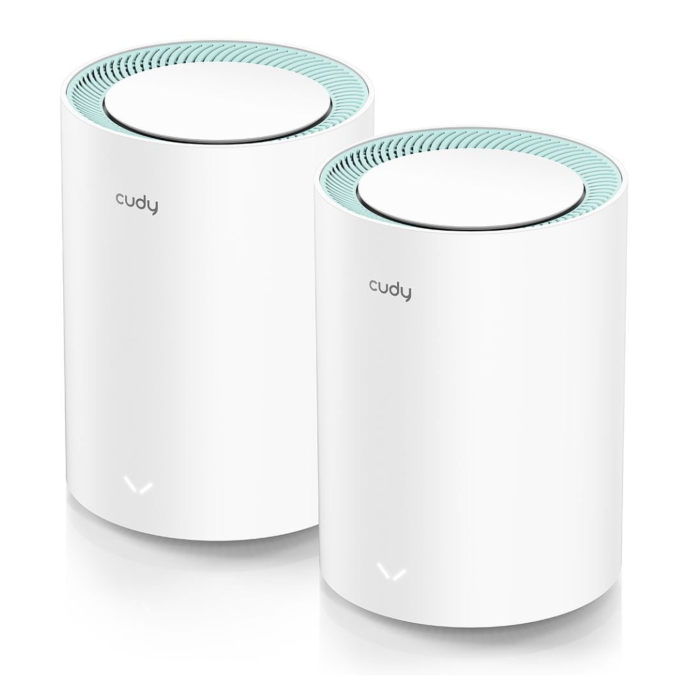

Forget frustrating Wi-Fi dead zones and slow connections! The Cudy M1300 AC1200 Dual-Band Wi-Fi Mesh System in a 2-pack is your solution for truly seamless Whole Home Coverage. With this system, you create a single, strong Network that intelligently adapts to your needs. Thanks to Wi-Fi 5 (802.11ac) and AC1200 Dual-Band Wi-Fi, you enjoy fast and stable connections everywhere in the house, whether you're streaming, working, or gaming. Seamless Roaming ensures that your devices are always connected to the strongest signal without you noticing – just smooth Wi-Fi.
Security and Control in Your Hands
The Cudy M1300 offers you far more than just fast Wi-Fi. It's a real security hub for your home Network. With integrated VPN Client/Server functions (supports PPTP, L2TP, OpenVPN, WireGuard, IPSec, Zerotier), you protect your privacy and securely access your home Network, even when you're on the go. Easily set up a separate Guest Network for visitors to isolate your main network. Comprehensive Parental Controls with schedules and web filtering give you full control over what and when your children do online. Additionally, support for DNS encryption via Cloudflare and NextDNS provides even more online security.
Maximum Performance, Maximum Flexibility
Each unit of the Cudy M1300 is equipped with two Gigabit Ethernet ports. This means not only full speed for your wired devices like smart TVs or game consoles, which you connect directly via an Ethernet Cable, but also the option of a wired backhaul. Especially in homes with many thick walls or across multiple floors, a wired backhaul can significantly improve the performance and stability of your Wi-Fi Mesh System, as the full wireless bandwidth remains available for your end devices. Technologies like MU-MIMO and Beamforming optimize data transmission to multiple devices simultaneously and ensure efficient signal distribution. The powerful Dual-Core Processor ensures smooth performance.
Effortless Setup, Limitless Expansion
Setting up your Cudy M1300 Mesh System is incredibly easy. Whether via the intuitive Cudy App (Cloud Control) on your smartphone or the classic web interface – your new, powerful Wi-Fi Mesh System is ready for use in just a few minutes. Each M1300 unit can be flexibly configured as a main router or satellite. And if your home gets even bigger, you simply expand your Network with additional individual devices. This way, your Wi-Fi always remains exactly as large as you need it to be. DDNS (Dynamic DNS) is also supported to simplify external access.
Strengths & Notes at a Glance
- Pro: Cost-effective and extensive Wi-Fi coverage for medium to large households.
- Pro: Comprehensive security and management functions such as VPN Client/Server, Guest Network, and Parental Controls.
- Pro: Flexible and easy setup via the Cudy App, as well as scalability by adding further units.
- Note: For internet speeds above 500 Mbps to 1000 Mbps, the wireless performance of the AC1200 specification can be a bottleneck.
- Note: The advertised range can vary greatly due to structural conditions (thick walls, multiple floors); a wired backhaul can provide a remedy here.
Specifications & Features
| Manufacturer: | Cudy |
| Model Name: | M1300 (2-Pack) |
| Product Type: | Wi-Fi Mesh System |
| Wi-Fi Standard: | Wi-Fi 5 (IEEE 802.11ac/n/a for 5GHz, IEEE 802.11n/b/g for 2.4GHz) |
| Total Wi-Fi Speed: | AC1200 |
| Wi-Fi Speed 5 GHz: | 867 Mbit/s |
| Wi-Fi Speed 2.4 GHz: | 300 Mbit/s |
| Frequency Bands: | Dual-Band (2.4 GHz & 5 GHz) |
| Processor: | 880 MHz Dual-Core (MIPS1004Kc) |
| Flash Memory (ROM): | 16 MB NOR |
| RAM: | 128 MB DDR3 |
| Antennas per Unit: | 4x internal Antennas |
| Antenna Gain 5 GHz (Max): | 6.04 dBi |
| Antenna Gain 2.4 GHz (Max): | 4.22 dBi |
| Wi-Fi Streams 5 GHz: | 2T2R (2x2 MIMO) |
| Wi-Fi Streams 2.4 GHz: | 2T2R (2x2 MIMO) |
| Wi-Fi Efficiency: | MU-MIMO (on 5GHz), Beamforming |
| Max. Wi-Fi Channel Width: | 80 MHz |
| Wi-Fi Security: | WPA, WPA2, WPA3, WPA-PSK/WPA2-PSK |
| Ethernet Ports per Unit: | 2x Gigabit Ethernet (10/100/1000 Mbps) |
| VPN Support (Client & Server): | WireGuard, OpenVPN, IPSec, ZeroTier, PPTP, L2TP |
| DNS Security: | DNS over TLS (Cloudflare, Google, Quad9) |
| DDNS Compatibility: | Over 15 providers |
| Guest Network: | Yes (2.4 GHz and 5 GHz) |
| Management: | Cudy App (iOS/Android), Web Interface, Cloud Control |
| Coverage (Indoor Reference 2-pack): | approx. 160 m² (1700 sq ft) |
| Power Supply: | Input: 100-240V~, 50/60Hz AC; Output: 12V⎓1A DC |
| Max. Power Consumption: | ≤11.5 W |
| Dimensions per Unit: | Φ110×154.5 mm (Φ4.33×6.08 inches) |
Scope of Delivery
| 2x Cudy M1300 AC1200 Dual-Band Wi-Fi Mesh System Units |
| 2x Power Adapters |
| 1x Ethernet Cable |
| 1x Quick Installation Guide |
Frequently Asked Questions (FAQ)
What is the difference between a Mesh system and a regular Wi-Fi router?
A Mesh system like the Cudy M1300 uses multiple units that work together to create a single, seamless Wi-Fi network, covering a larger area and eliminating dead zones. A regular router broadcasts Wi-Fi from a single point, often leading to poor coverage in more distant areas of your home.
How fast is the Cudy M1300 Mesh System?
Your Cudy M1300 offers a combined Wi-Fi speed of up to 1200 Mbps (AC1200). This consists of 867 Mbps in the 5 GHz band and 300 Mbps in the 2.4 GHz band.
Can I use the Cudy M1300 with my existing internet connection?
Yes, your Cudy M1300 is compatible with most internet providers. You simply connect one of the M1300 units to your existing modem or router via an Ethernet cable to set up your Mesh network.
Does the Cudy M1300 support parental controls?
Yes, your Cudy M1300 Mesh system supports parental control features. You can set schedules for online usage and manage access to inappropriate websites via the Cudy App.
How many devices can the Cudy M1300 connect simultaneously?
Your Cudy M1300 is designed to connect up to 100 devices and can provide stable performance for 4K streaming, web browsing, and smart home devices.
Is the Cudy M1300 difficult to install?
No, installing your Cudy M1300 is easy. You can set up the system either via the Cudy App (for iOS and Android) or through a web interface. One unit is configured as the main router, while the Others automatically synchronize as satellites.
Homepage: https://www.cudy.com
