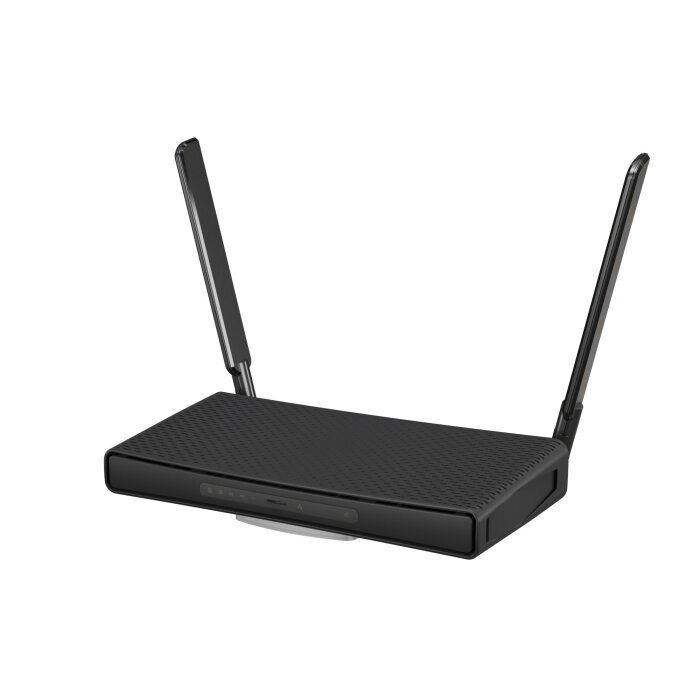

Your Smart Home, Perfectly Connected – Without Compromises
Imagine all your Smart Home devices, gaming consoles, and streaming services running simultaneously, without stuttering or dropouts. The MikroTik hAP ac3 makes this possible! With its Dual-Band AC1200 technology and powerful external Antennas, it creates a stable and fast WiFi that reaches every corner of your home. The intelligent PoE-Out function on the fifth port even allows you to directly power compatible Smart Home components like IP Cameras. This means fewer cables, more flexibility, and a tidier home. Your Home Access Point becomes the central hub for your connected life.
Your Office, Secure and Efficient – No Matter Where You Are
Whether it's a small office or a demanding home office, the hAP ac3 is your reliable partner. Thanks to RouterOS Level 4, you can precisely segment your Network, set up secure VPN support for remote access, and define detailed firewall rules to protect sensitive data. The five Gigabit Ethernet ports guarantee lightning-fast connections for workstations and servers, while the powerful WiFi enables efficient wireless collaboration. With this WiFi Router, you create a professional and secure working environment that leaves nothing to be desired.
Limitless Range, Easy Expansion – Your WiFi Everywhere
Are you struggling with dead zones in larger buildings? The MikroTik hAP ac3 is the solution. It can not only serve as a primary WiFi Router but also as a powerful WiFi Access Point or repeater to optimize the range of your existing Network. The external Antennas are not only powerful but also interchangeable, allowing you to perfectly adapt the coverage to your spatial conditions. In addition, the PoE-In function allows for flexible placement of the device, even where no power outlet is nearby – ideal for uncomplicated Network configuration in large houses or offices.
RouterOS – Your Network, Your Rules
The heart of the MikroTik hAP ac3 is the legendary RouterOS with License Level 4. This operating system offers unparalleled control and flexibility that goes far beyond conventional consumer routers. With the intuitive interface, you can create complex firewall rules, prioritize Quality of Service (QoS) for critical applications, set up VLANs for network segmentation, or configure comprehensive VPN support. Whether you are an experienced network engineer or simply want full control over your network – RouterOS provides you with the tools to design your network exactly as you envision it.
Strengths & Notes at a Glance
- Pro: Powerful Quad-Core CPU and 256 MB RAM for demanding network applications.
- Pro: Excellent connectivity with Dual-Band AC1200 WiFi, five Gigabit Ethernet ports, and USB Port.
- Pro: Flexible PoE-In/Out support for simplified installation and Power Supply for other devices.
- Pro: Comprehensive configuration options and functions (VPN support, firewall, QoS) thanks to RouterOS Level 4.
- Pro: External high-gain Antennas for improved WiFi range and coverage.
- Pro: Robust design and flexible mounting options (vertical, horizontal, wall mount).
- Note: The enormous flexibility of RouterOS requires a certain learning curve for beginners without network experience.
- Note: In some scenarios, the 5GHz-WiFi signal strength through walls may be weaker than with some competing products.
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | hAP ac3 |
| Product Code: | RBD53iG-5HacD2HnD |
| Architecture: | ARM 32bit |
| CPU: | IPQ-4019 |
| CPU Cores: | 4 |
| CPU Nominal Frequency: | 716 MHz (automatic 448-896 MHz) |
| RAM: | 256 MB |
| Storage Size: | 128 MB |
| Storage Type: | NAND |
| Operating System: | RouterOS |
| RouterOS License Level: | 4 |
| Ethernet Ports: | 5x 10/100/1000 Mbit/s Gigabit Ethernet (RJ45) |
| USB Ports: | 1x USB-A 2.0 (Full-size) |
| WiFi Standards 2.4 GHz: | 802.11b/g/n (Wi-Fi 4) |
| WiFi Standards 5 GHz: | 802.11a/n/ac (Wi-Fi 5) |
| WiFi Max. Data Rate 2.4 GHz: | 300 Mbit/s |
| WiFi Max. Data Rate 5 GHz: | 867 Mbit/s |
| Antenna Gain 2.4 GHz: | 3 dBi (external) |
| Antenna Gain 5 GHz: | 5.5 dBi (external) |
| PoE-In: | Passive PoE (Ether1), 18-28 V DC or DC jack 12-28 V DC |
| PoE-Out: | Passive PoE (Ether5) |
| Max. Power Consumption: | 30 W |
| Max. Power Consumption without Attachments: | 12 W |
| Operating Temperature: | -40°C to 70°C |
| Dimensions: | 251 x 129 x 39 mm |
| IP Protection Class: | IP20 |
Scope of Delivery
| 1 x MikroTik hAP ac3 (RBD53iG-5HacD2HnD) |
| 1 x 24V 1.5A Power Adapter |
| 1 x Stand Base and Pads |
| 1 x K-47 Mounting Set (Wall Mount) |
| 1 x HGO Indoor Antenna Kit (external antennas) |
Frequently Asked Questions (FAQ)
What is the difference between MikroTik hAP ac2 and hAP ac3?
The hAP ac3 is the successor to the hAP ac2 and offers you a newer processor, more RAM, and more storage. A key difference is the hAP ac3's external high-gain antennas, which provide you with improved range and coverage, while the hAP ac2 has internal antennas. However, the maximum throughput rate is often similar.
Can the MikroTik hAP ac3 be used as a VPN server or client?
Yes, thanks to RouterOS, the MikroTik hAP ac3 can provide you with extensive VPN functionalities. You can configure it as both a VPN server (e.g., for accessing your home network remotely) and a VPN client (to route all your network traffic through a VPN provider). RouterOS supports various VPN protocols such as IPsec.
How is the MikroTik hAP ac3 powered and what PoE functions does it have?
You can power the hAP ac3 via an external AC/DC power adapter or via Passive PoE on the first Ethernet port (PoE-IN). Additionally, it features a PoE-Out port (Ethernet port 5) that can supply Passive PoE to power your other PoE-compatible devices such as IP Cameras or additional Access Points.
Is the MikroTik hAP ac3 suitable for gaming?
Yes, the hAP ac3 is well-suited for gaming due to its quad-core processor, 256 MB RAM, and Gigabit Ethernet ports. The ability to configure Quality of Service (QoS) in RouterOS allows you to prioritize gaming traffic to minimize latencies and ensure a smooth online gaming experience.
Can I expand the storage of the MikroTik hAP ac3?
Yes, the hAP ac3 features a USB-A 2.0 port that you can use to expand storage, for example, by connecting a USB stick or an external hard drive. This can be useful for your additional configurations, backups, or other data.
Which Wi-Fi standards does the MikroTik hAP ac3 support and what speeds does it achieve?
The hAP ac3 supports dual-band Wi-Fi according to the 802.11b/g/n standards in the 2.4 GHz band (Wi-Fi 4) and 802.11a/n/ac in the 5 GHz band (Wi-Fi 5). Your maximum data rate is 300 Mbit/s in the 2.4 GHz band and 867 Mbit/s in the 5 GHz band, resulting in a combined AC1200 speed.
