No More Makeshifts: The Professional IP68 Solution for Your Outdoor Router

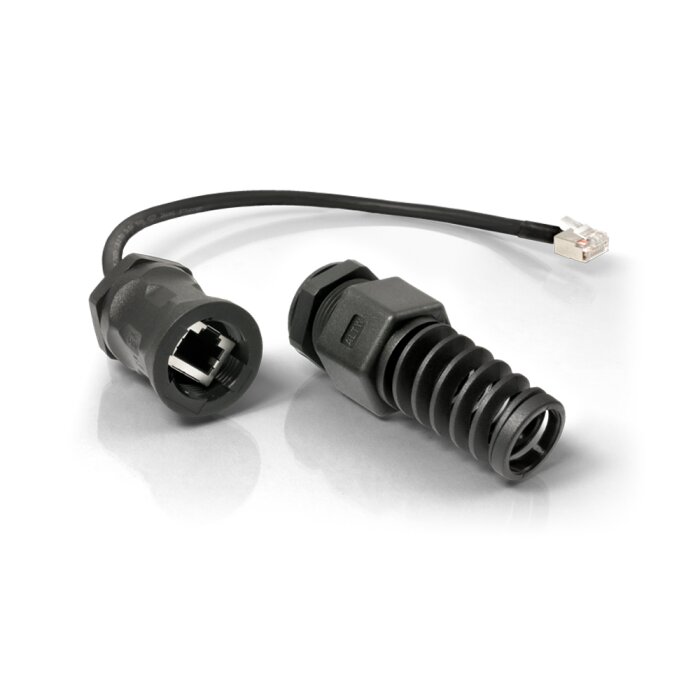

Anyone who has ever installed a router outdoors knows the constant worry about the elements. A single drop of water in the wrong place can spell the end for expensive hardware. The QuWireless QuRJ45 puts an end to this worry once and for all. It was specially developed to create a waterproof RJ45 feed-through for Teltonika routers that are mounted directly within the protection of the Antenna Enclosure. Instead of improvising with tape and silicone, this adapter allows you to create a mechanically stable and IP68-certified, completely sealed connection. This keeps your setup reliable, secure, and durable.
No Signal Loss, Full Gigabit Power
The biggest advantage of an integrated Antenna solution is the drastic reduction of signal loss. Instead of routing the sensitive cellular signal to the router via long, attenuating coaxial cables, the router sits directly at the signal source. The QuRJ45 ensures that the data connection to the rest of the Network also meets this high standard. The short, high-quality shielded (STP) CAT5E cable ensures that the full Gigabit bandwidth (1000 Mbps) of your router is transmitted without loss. This is crucial for utilizing the high speeds of modern 4G and 5G applications without compromise.
Custom-Made for the QuWireless & Teltonika Ecosystem
This is not a universal adapter, but a highly specialized component for professionals. The QuRJ45 is the perfect addition if you want to mount a Teltonika RUT in an outdoor Enclosure – specifically, in the Antenna Enclosures from QuWireless. The dimensions of the screw fitting are precisely matched to the openings of the QuSpot and QuMax series. This guarantees not only easy installation but also the complete seal of the entire system. If you value a clean, reliable, and perfectly coordinated installation, this adapter is indispensable.
Strengths & Notes at a Glance
- Pro: The IP68 certification offers the highest protection against dust and water for maximum reliability in outdoor use.
- Pro: By integrating the router into the antenna and using a short connection, signal loss is minimized, leading to higher data rates.
- Pro: Custom-designed for QuWireless antenna Enclosures and Teltonika routers, ensuring an easy and sealed installation.
- Pro: Support for Gigabit Ethernet makes the adapter future-proof for high-performance 4G/5G applications.
- Note: The product is a niche accessory and is primarily suitable only for the combination of QuWireless Antennas and Teltonika routers.
- Note: The adapter itself does not improve reception; it only enables a professional and weatherproof installation of the system components.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuRJ45 |
| Manufacturer Part Number (MPN): | QRJ45 |
| EAN: | 5907772035191 |
| Product Type: | Waterproof RJ-45 Socket Adapter for Outdoor Use |
| Ingress Protection Rating: | IP68 (dust-tight, protection against permanent submersion) |
| Supported Network Speeds: | 10/100/1000 Mbps (Gigabit Ethernet) |
| Total Length: | 160 mm |
| Cable Specification: | CAT5E, STP (Shielded Twisted Pair) |
| Wire Construction: | Stranded |
| Wire Gauge: | 24AWG |
| Connectors: | 2x 8P8C Plugs (RJ45) |
| Contact Surface: | Gold |
| Housing Material: | Weather-resistant plastic |
| PoE Compatibility: | Yes, PoE pass-through (all 8 wires connected) |
| Primary Compatibility: | Dedicated for all Teltonika routers in combination with QuWireless antenna Enclosures (e.g., QuSpot, QuMax) |
Scope of Delivery
| 1 x QuWireless QuRJ45 Waterproof RJ-45 Adapter (160mm) |
Frequently Asked Questions (FAQ)
Is the QuWireless QuRJ45 compatible with every router?
No, the QuRJ45 is specifically designed as a waterproof feed-through for the enclosures of QuWireless Antennas and is optimized for direct connection to Teltonika routers. It is not intended for use with other brands.
What exactly does the IP68 protection class mean?
IP68 means that the adapter is completely dust-tight (first digit 6) and protected against the effects of continuous immersion in water under conditions specified by the manufacturer (second digit 8). This is the highest common protection class for such components.
Do I need special tools to install the QuRJ45?
No, special tools are generally not required for installation. The adapter is passed through a designated opening in the antenna Enclosure and hand-tightened with a locknut to compress the seal.
Can I use PoE (Power over Ethernet) with this adapter?
Yes, the standard QuRJ45 model passes through an existing PoE voltage, as all 8 wires of the CAT5E cable are connected. For Teltonika routers without passive PoE support, QuWireless offers special versions with an integrated PoE splitter.
Why should I use this adapter instead of a normal cable gland?
A normal cable gland only seals the cable. The QuRJ45 provides a ready-made, tested, and IP68-certified solution with a permanently integrated patch cable. This minimizes potential installation errors and ensures a reliable, sealed connection between the router inside the enclosure and the external Network cable.
Is the adapter also suitable for 5G applications?
Yes, absolutely. Since the adapter supports Gigabit Ethernet (1000 Mbps), its bandwidth is more than sufficient to transmit the speeds achieved by current 4G/LTE and 5G routers without performance loss.
