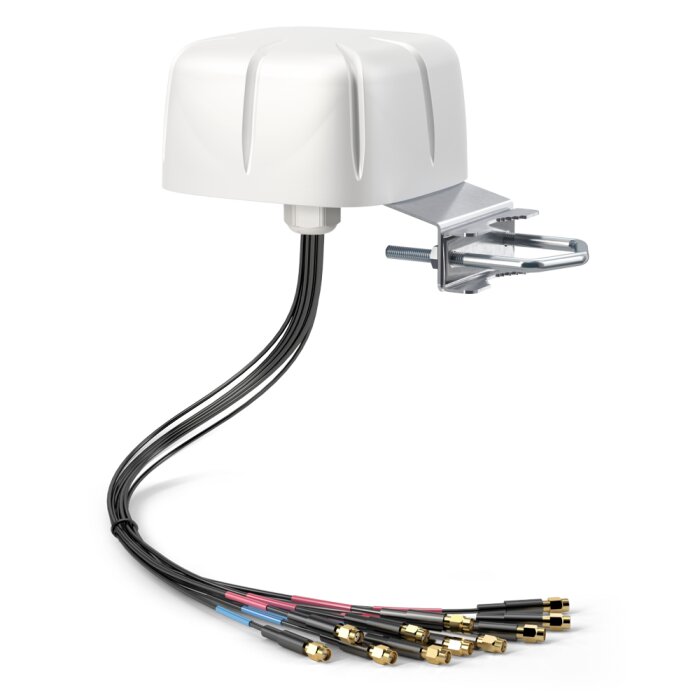

One Antenna for All Networks: 5G, Wi-Fi 6E & GPS Combined
End the Antenna jungle on the roof of your vehicle or on board your yacht. The QuWireless QuShell 46G integrates all the connectivity you need for demanding applications into a single, sleek Enclosure. Whether for public transport, emergency services, or the maritime sector, this Antenna drastically simplifies installation and ensures a clean setup. The combination of 4x4 MIMO for 5G/4G, 6x6 MIMO for the latest Wi-Fi 6E, and an active GPS antenna makes it the ultimate Vehicle Antenna with Wi-Fi 6E and GPS for every application, enhancing your Network capabilities.
Built for Extremes: IP67 Protection for Marine and Industry
The QuShell 46G is not only powerful but also extremely resilient. With its IP67 certification, it is completely dustproof and protected against temporary submersion – perfect for use at sea or in the most adverse weather conditions. The robust ABS Enclosure and the wide operating temperature range of -40°C to +80°C guarantee reliable function, whether in arctic cold or desert heat. This weatherproof 5G 4x4 MIMO Marine Antenna is an investment in durable and stable connectivity, ideal for Yacht / Camper / Motorhome use.
Full Performance for High-End Routers
To unleash the enormous potential of the QuShell 46G, you need a suitable router. The antenna is the perfect accessory for high-end mobile routers, such as Teltonika 4G / 5G Routers, that have the corresponding 11 external antenna connectors. Only then can the advanced MIMO technologies (Multiple Input, Multiple Output) unfold their full effect and offer you maximum data rates and superior connection stability. It is an ideal, powerful outdoor antenna for Teltonika routers of the latest generation or comparable 4G / 5G Routers and WiFi Routers.
Strengths & Notes at a Glance
- Pro: Exceptional integration of 11 Antennas in a compact, robust Enclosure.
- Pro: Future-proof support for 5G and Wi-Fi 6E with extremely wide frequency coverage, including Dual-Band / WiFi 6E / WiFi 7 Antennas.
- Pro: IP67-certified and designed for extreme temperatures, ideal for mobile and maritime deployments.
- Pro: Comprehensive Mounting Systems kit for diverse installation scenarios already included.
- Note: The standard cable length of 50 cm requires router-proximate mounting.
- Note: Requires a high-end router with 11 external antenna connectors to unleash its full potential.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuShell 46G |
| Manufacturer Part Number (MPN): | ASL46G |
| EAN: | 5905868602357 |
| Product Type: | Integrated 12-in-1 Multiband Omni-Directional Antenna |
| Applications: | Industry, Transportation, Maritime, Public Sector, IoT (M2M / IoT Antennas - 4G, 5G, WiFi) |
| Housing Material: | ABS |
| Color: | White |
| Protection Class: | IP67 |
| Operating Temperature: | -40°C to 80°C |
| Dimensions: | 175 x 165 x 95 mm |
| Weight: | 1.2 kg |
| Country of Manufacture: | Europe |
| Connectors (Cables): | 11 x High-Performance Coaxial Cables |
| Standard Cable Length: | 50 cm |
| 5G/4G Antennas (4x4 MIMO) | |
| Frequency & Gain: | 2 dBi @ 617-960 MHz |
| Frequency & Gain: | 4 dBi @ 1.7-2.7 GHz |
| Frequency & Gain: | 5 dBi @ 3.3-3.8 GHz |
| Frequency & Gain: | 6 dBi @ 4.2-6.0 GHz |
| Supported Technologies: | 5G, 4G, 3G, 2G |
| Polarization (4G): | Vertical |
| Impedance (4G): | 50 Ω |
| VSWR (4G): | < 2.00 |
| Wi-Fi 6E Antennas (6x6 MIMO) | |
| Frequency Bands (Wi-Fi): | 2.4 - 2.5 GHz & 5.0 - 7.2 GHz |
| Gain (Wi-Fi): | 2 dBi @ 2.4-2.5 GHz |
| Gain (Wi-Fi): | 5 dBi @ 5.0-7.2 GHz |
| Supported Standards: | Wi-Fi 6E, Wi-Fi 6, 802.11a/b/g/n/ac/ax |
| Polarization (Wi-Fi): | Vertical |
| Radiation Pattern: | 360°/25° (Omni-directional) |
| Impedance (Wi-Fi): | 50 Ω |
| VSWR (Wi-Fi): | < 2.50 |
| Max Input Power: | 50 W |
| DC Grounding: | Yes |
| GPS/GNSS Antenna | |
| Technology: | Active GPS/GNSS Antenna |
| Frequency: | 1575.42 MHz (L1) |
| Integrated Amplifier (LNA): | 18 dB Gain |
| Power Supply: | 3.3 - 5.0 V DC |
| Current Consumption: | < 20 mA |
Scope of Delivery
| 1 x QuWireless QuShell 46G Antenna |
| 1 x Mounting kit for surface, mast/wall, and marine mounting |
Frequently Asked Questions (FAQ)
What does '12-in-1 antenna' mean for the QuShell 46G?
Technically, 11 antenna elements are integrated: four for 5G/4G (4x4 MIMO), six for WiFi (6x6 MIMO), and one for GPS/GNSS. The '12' is a marketing term, likely resulting from an alternative counting method or a rounding up, highlighting the comprehensive Antennas capabilities.
Do I need a special router to operate the QuShell 46G?
Yes, to unleash its full potential, you need a router with 11 external antenna connections: four for mobile communication (4G / 5G Routers), six for WiFi (WiFi Routers), and one for GPS. Only then can you utilize the MIMO capabilities for maximum speed with this advanced Network antenna.
Is the antenna suitable for use on a moving motorhome or truck?
Absolutely. The QuShell 46G is designed as a mobile antenna. Its robust, weather-resistant design (IP67) and omni-directional characteristic make it ideal for Vehicle Antennas - 4G, 5G, WiFi, as it can receive signals from all directions without needing to be re-aligned. This is perfect for Yacht / Camper / Motorhome use, providing reliable 5G Antennas / Outdoor Antennas connectivity.
What is the main advantage of Wi-Fi 6E in this antenna?
Wi-Fi 6E utilizes the 6 GHz frequency band, which is less congested than the 2.4 GHz and 5 GHz bands. This leads to higher speeds, lower latencies, and less interference, making it ideal for demanding applications. This is a key feature for Dual-Band / WiFi 6E / WiFi 7 Antennas, offering superior WiFi Antennas performance.
Can I extend the Antenna Cables if needed?
Yes, with high-quality, low-loss extension cables. However, be aware that every extension and additional connector leads to a slight signal attenuation. For optimal performance, the Antenna Cables should be as short as possible. We offer WiFi Antenna Cables and 4G / 5G Antenna Cables, as well as Customized Antenna Cables.
Is the antenna installation complicated?
The physical mounting is relatively simple thanks to the included, versatile mounting set. The challenge lies in correctly connecting the 11 cables to the router and ensuring clean, waterproof Cabling. We also provide Antenna Mounting Accessories to facilitate the process.
