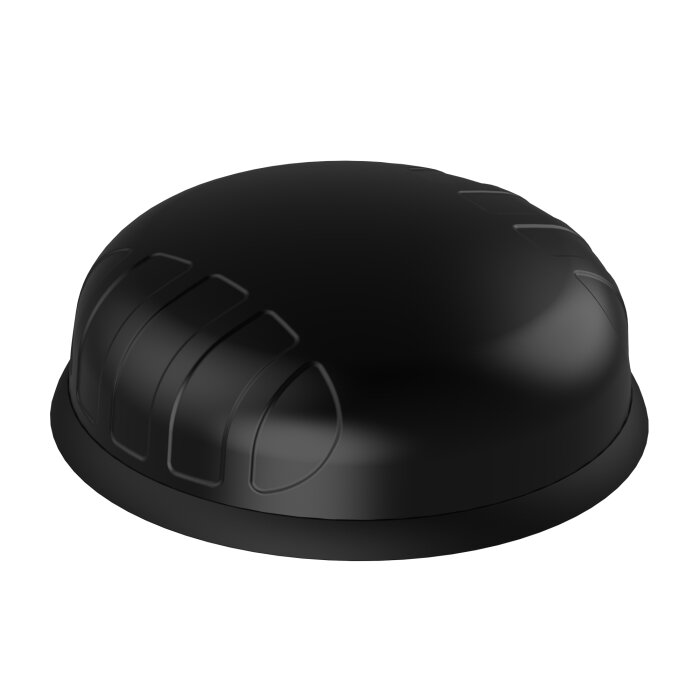

Built to Last: The Indestructible 5G Vehicle Antenna
The Poynting PUCK-4 v2 was developed for the most demanding environments. Whether on the roof of your Camper / Motorhome, on the railing of your Yacht, or on an industrial container – this Antenna can handle anything. With the highest protection class IP69K, it is absolutely dustproof and even protected against cleaning with high-pressure or steam jet devices. The IK10 certification attests to its extreme impact resistance, making it vandal-resistant. The UV-stable ASA housing and resistance to salt spray guarantee exceptional durability, even with permanent outdoor use at sea. This Antenna is the definition of reliability.
5G-Ready: Maximum Performance from 617 to 6000 MHz
Be prepared for the future of mobile internet. The PUCK-4 v2 covers an enormous frequency spectrum from 617 to 6000 MHz. This means it not only supports all common 2G, 3G, and 4G bands but is also perfectly prepared for powerful 5G Antennas / Outdoor Antennas. The 2x2 MIMO technology is the key to higher data rates and a more stable Network connection, as two data streams are processed simultaneously. In combination with a powerful 5G Routers, such as the Teltonika 4G / 5G Routers models, you unleash the full potential of your mobile internet access for smooth streaming, fast downloads, and reliable IoT communication.
One Antenna, Six Mounting Options: Flexibility Redefined
Poynting understands that every installation is unique. That's why the PUCK-4 v2 comes with a complete set of Antenna Mounting Accessories that gives you maximum freedom. You don't necessarily have to drill: use the strong magnetic base for steel roofs or the high-strength 3M adhesive pad for GRP, aluminum, or plastic surfaces. For permanent installation, a threaded stud Mounting Systems (in two lengths), screw mounting, and a bracket for masts, walls, or a horizontal railing are available. No matter the vehicle or application, the PUCK-4 v2 can always be installed perfectly and securely.
Ideal for Campers, Boats, and Demanding IoT Applications
The combination of compact design, extreme robustness, and excellent reception performance makes the PUCK-4 v2 the first choice for a variety of applications. It is one of the best options in the field of Vehicle Antennas - 4G, 5G, WiFi. Improve reception in your Camper / Motorhome for the perfect vacation, ensure a stable internet connection on your boat, or equip your fleet of commercial vehicles for reliable data transmission and GPS Trackers. This inconspicuous and powerful antenna is also the ideal solution for stationary M2M / IoT Antennas - 4G, 5G, WiFi applications, such as vending machines, charging stations, or surveillance systems.
Strengths & Notes at a Glance
- Pro: Extremely robust and durable thanks to IP69K, IK10, and saltwater resistance.
- Pro: Excellent future-proofing through ultra-wide frequency band (617-6000 MHz) for all 5G Networks.
- Pro: Very compact and inconspicuous design with high transmission and reception power.
- Pro: Maximally flexible installation through six included Antenna Mounting Accessories for almost any surface.
- Note: In rural areas with very weak signals, larger Antennas may achieve better performance in the lower frequency bands.
- Note: The permanently installed 2-meter Antenna Cables may require extensions, which can lead to slight signal loss.
Specifications & Features
| Manufacturer: | Poynting |
| Model: | PUCK-4 v2 |
| EAN: | 6009710928295 |
| Manufacturer SKU: | A-PUCK-0004-V2-01 |
| Product Type: | Passive external antenna system |
| Application: | 5G/4G & GPS/GLONASS |
| Cellular Antennas | |
| Number of Antennas: | 2 (2x2 MIMO) |
| Frequency Bands: | 617 - 6000 MHz |
| Compatibility: | 2G, 3G, 4G, 5G |
| Peak Gain: | 6.5 dBi |
| Voltage Standing Wave Ratio (VSWR): | ≤ 2.5:1 over 85% of bands |
| Polarization: | Linear (Vertical + Horizontal) |
| Radiation Pattern: | Omni-Directional |
| Impedance: | 50 Ohm |
| Max. Input Power: | 10 W |
| GPS/GLONASS Antenna | |
| Number of Antennas: | 1 (Active) |
| Frequency GPS: | 1575.42 MHz |
| Frequency GLONASS: | 1600 MHz |
| Peak Gain: | 21 dBi |
| Power Supply: | 2.7 - 3.3 V |
| Current Consumption: | 7 - 15 mA |
| Noise Figure: | ≤ 1.5 dB |
| Polarization: | Right-Hand Circular (RHCP) |
| Physical Properties | |
| Dimensions: | Ø 99.3 mm x 36 mm |
| Weight: | approx. 300 g |
| Housing Material: | ASA (UV-stable) |
| Color: | Black |
| Environmental Specifications | |
| Protection Class: | IP69K (Dust and high-pressure water jet tight) |
| Impact Resistance Class: | IK10 (Vandalism-resistant) |
| Fire Resistance: | Yes |
| Salt Spray Resistance: | Yes (Suitable for marine use) |
| Operating Temperature: | -40°C to +80°C |
| Humidity: | Up to 98% |
| Cabling & Connectors | |
| Cellular Cable Type: | 2x Twin HDF 195 |
| GPS/GLONASS Cable Type: | 1x RTK-031 |
| Cable Length: | 2 Meters (fixed) |
| 5G/4G Connectors: | 2x SMA-Male |
| GPS/GLONASS Connector: | 1x SMA-Male |
Scope of Delivery
| 1 x Poynting PUCK-4 v2 Antenna with 2m Cable |
| 1 x 35mm Threaded Stud for Mounting |
| 1 x 75mm Threaded Stud for Mounting |
| 1 x 3M Adhesive Pad for Surface Mounting |
| 1 x Magnetic Base for Mounting |
| 1 x Mast/Wall Bracket |
| 1 x Railing Bracket (horizontal) |
Frequently Asked Questions (FAQ)
Is the Poynting PUCK-4 v2 a complete internet solution?
No, the PUCK-4 v2 is a passive antenna. It improves reception and transmission quality. To establish an internet connection, it must be connected to a compatible 5G or 4G Router (e.g., from Teltonika LTE / 5G Routers or Cradlepoint).
Can I use the antenna on my motorhome or boat?
Yes, absolutely. Thanks to its IP69K certification, UV and saltwater resistance, and omni-directional characteristic, it is ideal for use on vehicles, motorhomes, trucks, and boats. This makes it a great choice for Yacht / Camper / Motorhome applications, improving your Network connectivity with Vehicle Antennas - LTE, 5G, WiFi.
Do I have to drill holes for mounting?
Not necessarily. The scope of delivery also includes Mounting Systems options without drilling, such as a magnetic base mount for steel roofs and a high-strength 3M adhesive pad for other surfaces like GRP or aluminum. These Antenna Mounting Accessories provide flexibility.
Does the antenna also improve my WiFi signal?
The PUCK-4 v2 is primarily designed for mobile communication signals (5G/4G) and GPS. Although its frequency coverage also includes WiFi bands (2.4 GHz Components & 5 GHz Components), it is not optimized for this. For dedicated WiFi Antennas improvement, Poynting offers other models like the PUCK-5, which are specialized WiFi Routers or WiFi Access Points.
What does "2x2 MIMO" mean and why is it important?
MIMO stands for "Multiple Input, Multiple Output". The antenna has two separate mobile communication antenna elements that can simultaneously send and receive data streams. This significantly increases the data transfer rate and connection stability, which is crucial for 4G / LTE Outdoor Antennas and especially for 5G Antennas / Outdoor Antennas.
Is the antenna compatible with every 5G Router?
The antenna is compatible with any 5G Router that has two external mobile communication antenna connections of type SMA female and a GPS connection of type SMA female. This applies to most common industrial and vehicle Routers, including many Teltonika LTE / 5G Routers.
