Built for Extremes: Your Connection That Withstands Anything

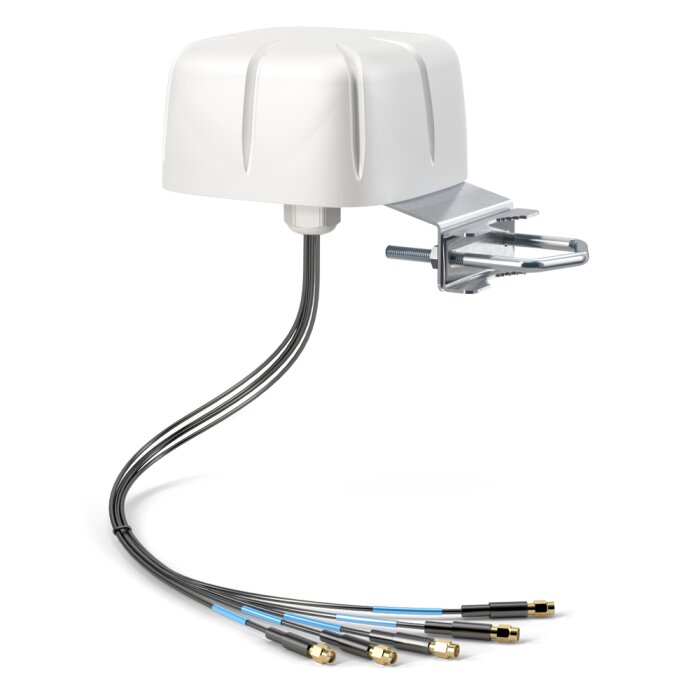

When your internet connection is absolutely critical, you need an Antenna that makes no compromises. The QuWireless QuShell 40G was developed precisely for this. Its housing is IP67-certified, meaning it is not only immune to heavy rain and dust but can even withstand temporary submersion. Combined with an extreme operating temperature range of -40°C to +80°C, this Antenna is the first choice for maritime applications, construction vehicles, emergency services, or any outdoor installation that must brave the elements.
One Housing, Five Antennas: Maximum Performance, Minimum Effort
Forget complicated installations with multiple individual Antennas. The QuShell 40G integrates everything you need for a high-end mobile Network connection. Four dedicated Antenna elements enable true 4x4 MIMO for 5G and 4G-Advanced Networks. The result: significantly higher speeds, a more stable connection, and better performance, especially in areas with weak reception. Additionally, a separate, active GPS/GNSS antenna is installed, providing precise location data – perfect for fleet management or GPS Trackers. This 5G Antenna is the ideal complement for powerful 4G / 5G Routers, such as those from Teltonika.
Global Connectivity: Ready for Every Network, Everywhere
The QuShell 40G is a true world traveler. With its coverage of the frequency spectrum from 617 MHz to 6000 MHz, it is equipped for practically all 4G and 5G bands (Sub-6 GHz) around the globe. This makes it an extremely future-proof investment and the perfect companion for international travels with a Yacht / Camper / Motorhome or for use on ships traveling worldwide. No matter where you are, this Antenna extracts the maximum from the available Network.
Thoughtful Installation for Professional Demands
As an omnidirectional Antenna, the QuShell 40G receives signals from all directions simultaneously. This saves you the need to precisely align it with a cell tower – a decisive advantage in any mobile application. For optimal performance, it should only be mounted as high as possible and free from obstacles. The included, robust Mounting Systems material made of galvanized steel offers you all the freedom for secure attachment to a mast, a wall, or directly on the roof of your vehicle.
Strengths & Notes at a Glance
- Pro: Extremely robust and weatherproof IP67 Enclosures, ideal for the harshest environments.
- Pro: Compact 5-in-1 solution minimizes installation effort and space requirements.
- Pro: Very wide frequency band for global 4G and 5G Antennas compatibility.
- Pro: Omnidirectional characteristic is perfect for mobile applications on vehicles or ships, making it an excellent choice for Vehicle Antennas - 4G, 5G, WiFi.
- Note: The standard Cable length of 50 cm is short and often requires additional Extension Antenna Cables.
- Note: The Antenna gain is naturally lower than that of an aligned directional antenna.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuShell 40G |
| Manufacturer Part Number (HAN/MPN): | ASL40G |
| EAN: | 5905868602326 |
| Product Type: | Passive 5-in-1 Multiband Antenna |
| Application Area: | Mobile, Stationary, Maritime |
| 5G / 4G Antennas (4x) | |
| Technology: | 4x4 MIMO |
| Frequency Range 1: | 617 - 960 MHz |
| Gain @ 617-960 MHz: | 2 dBi |
| Frequency Range 2: | 1.7 - 2.7 GHz |
| Gain @ 1.7-2.7 GHz: | 3-4 dBi |
| Frequency Range 3: | 3.3 - 3.8 GHz |
| Gain @ 3.3-3.8 GHz: | 5 dBi |
| Frequency Range 4: | 4.2 - 6.0 GHz |
| Gain @ 4.2-6.0 GHz: | 6 dBi |
| Polarization: | Vertical |
| Radiation Characteristic: | Omnidirectional (All-round) |
| Horizontal Beamwidth: | 360° |
| Vertical Beamwidth: | 35° ±5° |
| Impedance: | 50 Ω |
| VSWR: | <1.20 (max. <2.50) |
| GPS / GNSS Antenna (1x) | |
| Technology: | Active |
| Frequency: | 1575.42 MHz (GPS), 1602 MHz (GLONASS) |
| Gain (LNA): | 26 dB |
| Polarization: | RHCP (Right-Hand Circular) |
| Impedance: | 50 Ω |
| VSWR: | <1.5 |
| Cables & Connectors | |
| Number of Cables: | 5 |
| Cable Type: | LMR100 (or equivalent) |
| Standard Cable Length: | 50 cm |
| Connectors: | 5 x SMA-Male |
| Mechanics & Environment | |
| Housing Material: | ABS Plastic |
| Protection Class: | IP67 |
| Color: | White |
| Dimensions (L x W x H): | 160 x 160 x 90 mm |
| Weight (Antenna only): | 1.5 kg |
| Weight (Mounting Kit): | 0.4 kg |
| Operating Temperature: | -40°C to +80°C |
| Origin: | Made in Europe (Poland) |
| Mounting | |
| Mounting Options: | Mast, Wall, Surface Mounting |
| Supported Mast Diameter: | 40 - 60 mm |
| Mounting Kit Material: | Galvanized Steel |
Scope of Delivery
| 1 x QuWireless QuShell 40G Antenna (ASL40G) |
| 1 x Mounting Kit for Mast/Wall/Surface Mounting |
Frequently Asked Questions (FAQ)
Is the QuWireless QuShell 40G antenna weatherproof?
Yes, absolutely. It is IP67 certified, meaning it is completely dustproof and protected against temporary immersion in water. It is designed for permanent outdoor use in all weather conditions, ensuring reliable Network performance.
Do I need a separate router for this antenna?
Yes, the QuShell 40G is a passive antenna and absolutely requires a compatible 4G / 5G Routers or a modem with four external antenna connections (SMA type) for mobile communication and ideally a GPS connection. The antenna itself cannot establish an internet connection. Consider Teltonika LTE / 5G Routers for optimal compatibility.
Can I improve my WiFi signal with this antenna?
No, this specific model (ASL40G) is designed exclusively for receiving 5G, 4G / LTE, and GPS/GNSS signals. It does not feature WiFi Antennas. However, QuWireless offers other models that include integrated WiFi Antennas, suitable for enhancing WiFi Routers or WiFi Access Points.
Does the antenna need to be aligned with a cell tower?
No, as an omni-directional antenna, it receives signals from all horizontal directions. Precise alignment is not required, which significantly simplifies installation and mobile use. However, for optimal performance, it should be positioned as freely and high as possible, making it an excellent choice for 4G / LTE Outdoor Antennas or 5G Antennas / Outdoor Antennas.
Is the antenna suitable for use on a boat or ship?
Yes, it is very well suited for maritime environments. The robust, IP67-certified Enclosure protects against saltwater and harsh weather conditions. Its omni-directional characteristic is ideal for the constant movements and changes in direction of a vessel, making it a perfect Vehicle Antennas - LTE, 5G, WiFi solution.
What advantages does 4x4 MIMO offer over 2x2 MIMO?
A 4x4 MIMO antenna like the QuShell 40G can send and receive four simultaneous data streams, as opposed to two with a 2x2 MIMO antenna. This leads to significantly higher data speeds and a more stable connection in compatible 5G and 4G-Advanced networks, enhancing the capabilities of your 4G / LTE Outdoor Antennas or 5G Antennas / Outdoor Antennas.
