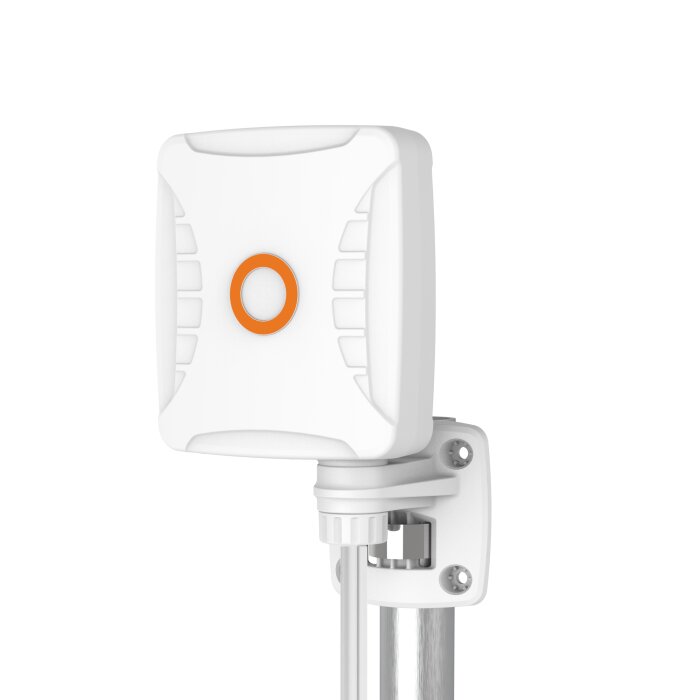

The Ultimate 5G Antenna for Stable Reception
No more slow internet and connection drops. The Poynting XPOL-1-5G PLUS v3 is your professional solution to get the most out of your mobile Network. As a passive Outdoor Antenna, it captures 4G and 5G signals much more effectively than the small, internal Antennas of your router. Thanks to clever 2x2 MIMO technology, two separate data streams are processed simultaneously, which massively increases not only the speed but also the reliability of your connection. Whether in the home office, for streaming, or in rural areas – this Antenna provides a stable foundation for your digital world.
Future-Proof from 410 to 6000 MHz: The XPOL-1-5G v3
What truly distinguishes this antenna is its extremely wide frequency band. It covers not only all currently used 4G and 5G frequencies but is also perfectly equipped for future bands and technologies. From the low frequencies around 450 MHz, which are important for long range in rural areas, to the high 6 GHz bands – the XPOL-1-5G v3 is a true multi-talent. This makes it the perfect complement for modern Teltonika 4G / 5G Routers and an investment that pays off for years.
Robustness Meets Performance: IP65 and IK10 Certified
An Outdoor Antenna must withstand a lot. Poynting has therefore built the XPOL-1-5G v3 to last. The housing made of UV-stabilized ASA plastic is IP65 certified, meaning it is absolutely dustproof and protected against strong water jets. Rain, snow, and sun cannot harm it. Additionally, the IK10 certification guarantees extreme impact resistance, protecting it even from vandalism. With a wind load tolerance of up to 160 km/h and an operating temperature range of -40°C to +80°C, you can rely on this antenna under all circumstances.
Easy Installation, Maximum Impact: Your MIMO Antenna
Complicated installations are a thing of the past. Since it is an omnidirectional antenna, tedious and precise alignment with a transmission mast is eliminated. The main thing is to find the highest and clearest possible mounting position. And everything you need is included: a robust mast clamp, screws and wall plugs for wall mounting, and even suction cups for temporary window attachment. The two 5-meter long, low-loss HDF 195 cables with SMA connectors are connected directly to the 'Main' and 'Aux' ports of your router. These well-designed 5G Antennas / Outdoor Antennas are the perfect choice for anyone who wants to improve their internet reception without complications.
Strengths & Notes at a Glance
- Pro: Exceptionally wide frequency band (410-6000 MHz) makes the antenna extremely future-proof.
- Pro: With 6 dBi peak gain, almost twice as powerful as the previous model.
- Pro: Very robust construction (IP65 & IK10) for maximum durability in outdoor use.
- Pro: Well-designed 2x2 MIMO cross-polarization for maximum signal stability and throughput.
- Pro: Very flexible mounting options thanks to included Accessories for mast, wall, and window.
- Note: As an omnidirectional antenna in very rural areas with only one transmission mast, a directional antenna might achieve higher values.
- Note: The permanently installed 5-meter cables require lossy extensions if needed.
Specifications & Features
| Manufacturer: | Poynting |
| Model: | XPOL-1-5G PLUS v3 (A-XPOL-0001-V3-21) |
| EAN: | 600971092716 |
| Product Type: | Passive 2x2 MIMO Outdoor Antenna |
| Frequency Range: | 410–470 MHz, 617–960 MHz, 1427–1517 MHz, 1710–2700 MHz, 3300–4200 MHz, 4400–6000 MHz |
| Supported Standards: | 2G, 3G, 4G, 5G, Wi-Fi |
| Peak Gain: | 6 dBi |
| Gain at 617-960 MHz: | ~2 dBi |
| Gain at 1710-2700 MHz: | ~5 dBi |
| Gain at 3300-4200 MHz: | ~6 dBi |
| Gain at 4400-6000 MHz: | ~5.5 dBi |
| MIMO Configuration: | 2x2 MIMO |
| Polarization: | Cross-Polarized ±45° |
| Radiation Pattern: | Omnidirectional |
| VSWR: | ≤ 2:1 over 90% of bands |
| Impedance: | 50 Ohm |
| Maximum Input Power: | 10 W |
| Connectors: | 2 x SMA (male) |
| Cable Type: | HDF 195 (Low Loss) |
| Cable Length: | 5 Meters |
| Housing Material (Radome): | UV-stabilized ASA |
| IP Rating: | IP65 |
| IK Impact Rating: | IK10 |
| Operating Temperature: | -40°C to +80°C |
| Wind Load (Survival): | Up to 160 km/h |
| Certificates: | RoHS 2011/65/EU, ISO 9001:2015 |
| Dimensions: | 246 x 157 x 88 mm |
| Weight (estimated): | approx. 1.2 kg |
Scope of Delivery
| 1 x Poynting XPOL-1-5G PLUS v3 Antenna with 2x 5m Cables and SMA Connectors |
| 1 x Mast Mounting Set (Pipe Clamp) |
| 1 x Wall Mounting Set (Screws and Wall Plugs) |
| 4 x Suction Cups for Window Mounting |
Frequently Asked Questions (FAQ)
Do I need to buy two of these Antennas for 5G?
No. This single antenna already contains two separate antenna elements in one housing (2x2 MIMO). It connects with two cables to the corresponding ports of your 5G/4G Router to fully utilize MIMO technology.
Is the Poynting XPOL-1-5G v3 suitable for mobile use on a motorhome?
Yes, with conditions. Its robust design and omni-directional antenna characteristics make it very suitable for stationary use on a motorhome, for example, at a campsite. For use while driving, it should be secured or dismounted.
How do I best align the antenna?
Since this is an omni-directional antenna, precise horizontal alignment is not necessary. For the best reception, mount the antenna as high as possible with a clear line of sight in all directions to minimize obstacles.
Can I connect this antenna directly to my laptop?
No. The antenna is designed for connection to 4G/5G Routers or modems with external SMA antenna connectors. A laptop does not typically have such connectors.
What is the difference between the 2x2 MIMO and 4x4 MIMO versions?
This 2x2 MIMO model has two antenna elements and cables. The 4x4 MIMO version has four antenna elements and cables for high-end 4G/5G Routers with four ports, potentially enabling even higher speeds.
Does this antenna also improve my WiFi signal?
Indirectly. The antenna improves the 4G/5G signal that your Router receives. The Router then distributes this stronger internet signal via WiFi. The range of your internal WiFi Network is not directly increased by this.
