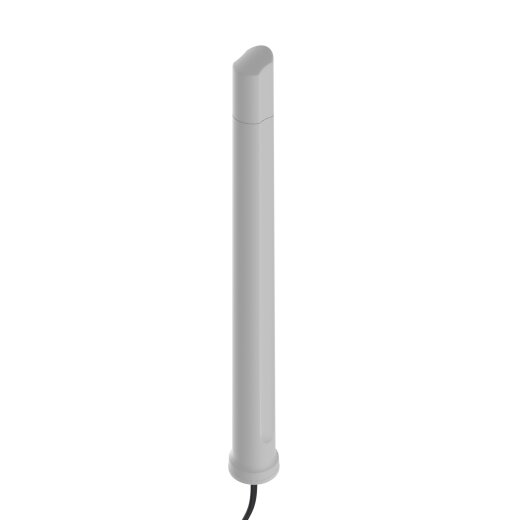

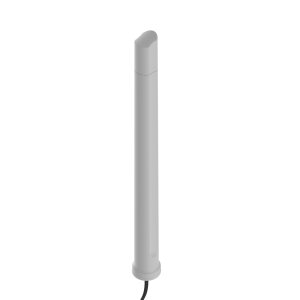

No More Dead Zones: Your Connection, Everywhere!
Imagine you're on the road in your motorhome, at sea with your yacht, or working in a remote rural area, and still have a lightning-fast and stable internet connection. This is exactly what the Poynting OMNI-600-5G enables you to do. This outstanding Omni-Directional Antenna is your key to boundless connectivity, even where Others give up. It is ideal for improving connectivity in rural or remote areas, as its wide frequency coverage (up to 410 MHz) enables long-range connectivity. This allows you to significantly improve data transmission reliability and stability for your mobile office or industrial applications by communicating with multiple base stations simultaneously. With this antenna, frustrating disconnections are a thing of the past – you always stay online, no matter where your adventure takes you.
Technology That Moves You Forward: 2x2 MIMO & Ultra-Broadband
The OMNI-600-5G is a true powerhouse of connectivity. It uses advanced 2x2 MIMO Antenna (Multiple-Input, Multiple-Output) technology, where two separate antenna elements simultaneously send and receive two data streams. This significantly increases data throughput and Network efficiency, leading to faster and more stable connections. Support for Carrier Aggregation (CA) additionally maximizes bandwidth. With an ultra-wide frequency range from 410 MHz to 4200 MHz, it covers all important bands for 5G Antennas / Outdoor Antennas, 4G / 4G Outdoor Antennas, and 2.4 GHz WiFi. This means you are not only well-equipped for current mobile communication standards but also for future technologies. You only need this one antenna to supply both mobile connections of your 4G / 5G Routers, allowing for a clean and space-saving installation.
Built for Extremes: Robustness You Can Count On

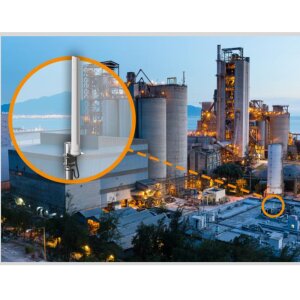

Whether scorching sun, pouring rain, or icy cold – the Poynting OMNI-600-5G will not let you down. Its housing is IP65 dust and waterproof, UV-stable, and shock-resistant (IK08), ensuring exceptional reliability under the harshest weather conditions. The robust antenna is saltwater resistant (MIL-STD 810G/ASTM B117) and functions reliably in a temperature range from -40°C to +80°C. These features make it the perfect choice for demanding applications such as monitoring solar parks, wind turbines, or EV charging infrastructures – wherever M2M / IoT Antennas - 4G, 5G, WiFi require continuous and reliable data transmission. Rely on an antenna built to last.
Easy Installation, Maximum Flexibility
The installation of the Poynting OMNI-600-5G is extremely straightforward. Thanks to the included stainless steel L-bracket, you can flexibly mount the Outdoor Antennas on a wall or mast (up to Ø50 mm). As a WiFi Omni-Directional Antennas, it receives signals from all directions, eliminating the need for precise alignment to a specific base station. This saves you time and effort during installation and offers maximum flexibility in placement. With the appropriate Antenna Mounting Accessories, your new antenna is ready to use in no time and provides you with a stable connection.
Strengths & Notes at a Glance
- Pro: Ultra-broadband coverage from 410 MHz to 4200 MHz for 5G, 4G/4G, 2.4 GHz WiFi, and CBRS bands, ensuring comprehensive compatibility and future-proofing.
- Pro: High performance through 2x2 MIMO and support for Carrier Aggregation (CA) maximizes data throughput and Network efficiency with vertically separated elements.
- Pro: Robust construction (IP65 certified, UV-stable, IK08 shock-resistant, saltwater resistant) ensures high reliability under adverse weather conditions and in demanding environments.
- Pro: Easy installation thanks to included mounting material for wall and mast mounting, without the need for precise alignment.
- Pro: High gain of up to 6.2 dBi improves signal strength and stable reception even in difficult reception areas.
- Note: Lower point gain compared to directional antennas, which could offer stronger, more focused reception to a *specific* cell in extremely remote areas with very weak signals.
- Note: Potentially higher interference in RF-noisy environments, as an omnidirectional antenna receives signals from all directions, although the OMNI-600-5G features superior pattern control due to its design.
Specifications & Features
| Manufacturer: | Poynting Antennas (Pty) Ltd. |
| Model: | OMNI-600-5G (A-OMNI-0600-V2-01) |
| Product Type: | Omni-Directional Antenna |
| Technologies: | 5G, 4G/4G, WiFi (2.4 GHz), CBRS |
| MIMO Configuration: | 2x2 MIMO |
| Frequency Bands: | 410 – 470 MHz, 617 – 960 MHz, 1427 – 1517 MHz, 1710 – 2170 MHz, 2300 – 2700 MHz, 3400 – 4200 MHz |
| Peak Gain: | 6 dBi (up to 6.2 dBi at 4G frequencies) |
| Gain (410-470 MHz): | ~3 dBi |
| Gain (617-960 MHz): | ~4 dBi |
| Gain (1427-1517 MHz): | ~5 dBi |
| Gain (1710-2700 MHz): | ~6 dBi |
| Gain (3400-4200 MHz): | ~6.2 dBi |
| Polarization: | Linear Vertical |
| VSWR: | <3:1 over 90% of bands |
| Nominal Impedance: | 50 Ohm |
| Max. Input Power: | 10 W |
| Cable Type: | Twin Siamese HDF 195 |
| Cable Length: | 5 m (16.4 ft) |
| Connector Type: | SMA (M) - Male |
| Mounting Options: | Wall or Mast Mounting (up to Ø50 mm mast diameter) |
| Housing Material: | UV-stable ABS Plastic |
| Color: | White |
| Dimensions (without bracket): | 646 mm (Length) x Ø71 mm (Diameter) |
| Operating Temperature Range: | -40°C to +80°C |
| Storage Temperature Range: | -40°C to +80°C |
| Ingress Protection (IP): | IP65 (Dust and Water Protected) |
| Salt Spray Resistance: | MIL-STD 810G/ASTM B117 |
| Wind Survival: | ≤160 km/h |
| Impact Resistance: | IK08 |
| Housing Flammability Rating: | UL 94-HB |
| Certifications/Compliance: | CE, RoHS, ISO 9001:2015 |
| Country of Origin: | China |
Scope of Delivery
| 1 x Poynting OMNI-600-5G Omni-Directional Antenna |
| 1 x Stainless Steel L-Bracket for Wall or Mast Mounting |
| 1 x Mounting Kit |
Frequently Asked Questions (FAQ)
What does 2x2 MIMO mean for the Poynting OMNI-600-5G antenna?
2x2 MIMO (Multiple-Input, Multiple-Output) means that your antenna uses two separate antenna elements to simultaneously send and receive two data streams. This significantly increases your data throughput and Network efficiency, leading to faster and more stable connections for you.
Is the Poynting OMNI-600-5G antenna weatherproof?
Yes, your Poynting OMNI-600-5G is very robust and weatherproof. It is IP65 dust and water resistant, UV stable, and has an impact resistance of IK08, making it suitable for your outdoor use in adverse conditions.
Which frequency bands does the Poynting OMNI-600-5G cover?
Your antenna covers an ultra-wide frequency range from 410 MHz to 4200 MHz. This includes the most important bands for 5G, 4G/LTE (e.g., 410-470 MHz, 617-960 MHz, 1710-2700 MHz, 3400-4200 MHz) as well as 2.4 GHz Wi-Fi and the 3.5 GHz CBRS band, which you can use.
Can the OMNI-600-5G also be used for Wi-Fi?
Yes, your antenna can also be used for 2.4 GHz Wi-Fi applications, as it covers this frequency range.

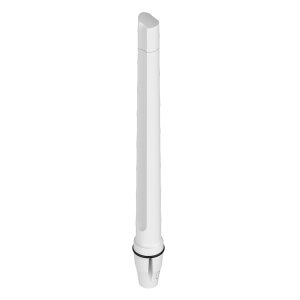

What is the difference between the Poynting OMNI-600 and the OMNI-402?
Both antennas share similar electrical characteristics and are 2x2 MIMO antennas. The main difference lies in their primary application area and robustness: Your OMNI-600 is designed for urban and general inland applications (IP65), while the OMNI-402 was specifically developed for marine and coastal applications and features higher saltwater resistance and an IP68 rating.
Is the installation of the Poynting OMNI-600-5G complicated?
No, the installation is relatively easy for you. Your antenna is designed for wall or mast mounting and comes with the necessary mounting material (e.g., stainless steel L-bracket). As an omnidirectional antenna, it does not require precise alignment with a specific base station.
