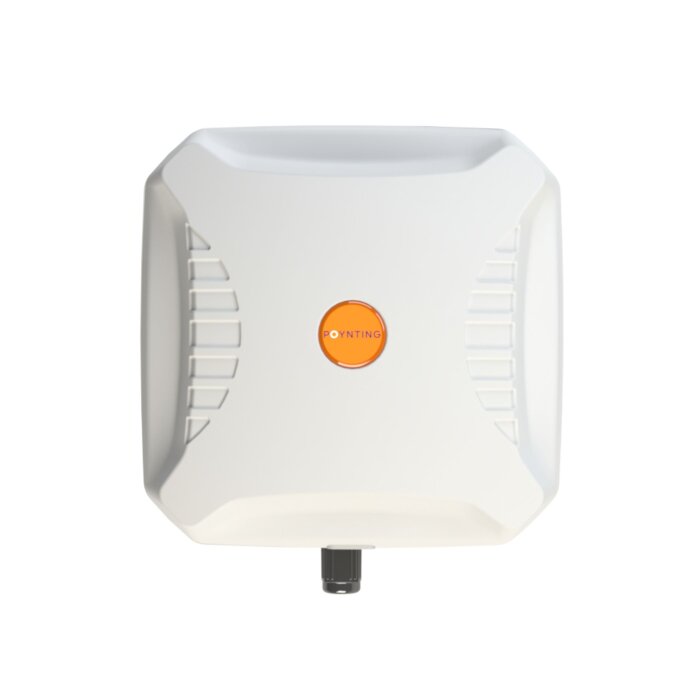

The Poynting EPNT-2 is a powerful combination of a 4x4 MIMO 5G/4G directional antenna and a 2x2 MIMO WiFi omnidirectional antenna, designed specifically for modern networking needs. With its innovative Artificial Magnetic Conductor (AMC) technology, it offers outstanding broadband coverage from 617 to 960 MHz and 1710 to 4200 MHz. This makes it ideal for 4G and 5G deployments where stable connections and high data throughput are required. Its 4x4 MIMO compatibility ensures optimal performance with up to 11 dBi gain for 5G/4G and 5 dBi in the WiFi range.

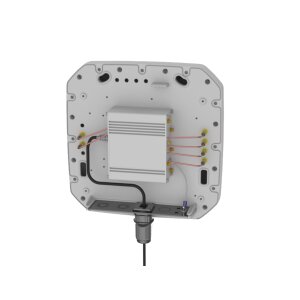

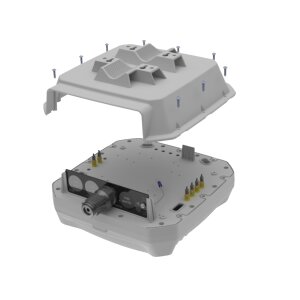

In addition to its cellular capabilities, the EPNT-2 integrates two dual-band WiFi antennas for 2.4 GHz and 5-7 GHz frequency ranges. This provides 2x2 MIMO support for stable and fast WiFi connections, making it ideal for extending networks in demanding environments. The housing accommodates router modules up to a size of 185 x 145 x 45 mm³, allowing you to easily pair the antenna with your preferred 4G/5G router to create a full-featured Customer Premises Equipment (CPE).

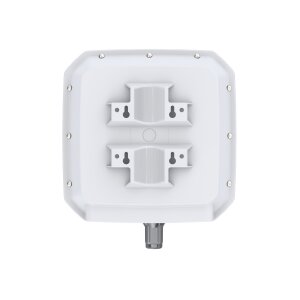

The EPNT-2 is not only powerful but also robust. With its IP65 protection rating, the housing is weatherproof and waterproof, ensuring reliable operation even under challenging outdoor conditions. The antenna can also be flexibly mounted on either a wall or a pole. The combination of innovative antenna technology, flexible deployment options, and durability makes the Poynting EPNT-2 the perfect solution for professional and private network installations.
Please note that the router's power supply must be via PoE. Suitable PoE injectors and power supplies are available in our range.
Technical Specifications 4G / 5G:
| Antenna Type: | 4x4 MIMO 5G/4G directional antenna and 2x2 WiFi omnidirectional antenna |
| Frequency Range 5G / 4G: | 617 - 960 MHz 1427 - 1517 MHz 1710 - 2700 MHz 3400 - 4200 MHz |
| 5G Bands: | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256 |
| 4G Bands: | B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B85, B103, B106 |
| Gain 5G / 4G: | 11 dBi |
| Protection Rating: | IP65 |
| Impedance: | 50 Ohms |
Technical Specifications WiFi:
| Antenna Type: | WiFi 2x2 MIMO omnidirectional antenna (SMA) |
| Frequency Range: | 2400 MHz and 5000-7200 MHz |
| Gain: | 5 dBi |
| Impedance: | 50 Ohms |
Mechanical Data:
| Material: | ASA |
| Application Area: | Indoor and outdoor (IP65) |
| Operating Temperature: | -40° to 80°C |
| Dimensions: | 368 x 211 x 95 mm |
| Max Router Dimensions: | 185 x 145 x 45 mm |
| Weight: | 2.17 kg |
Package Contents:
| 1 x Poynting EPNT-2 Antenna Enclosure |
| 1 x Mounting Accessories |
