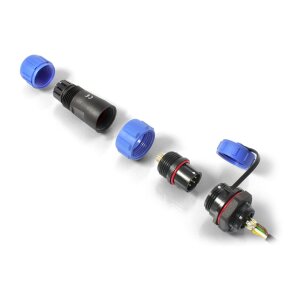

QuWireless QuPS4: The Pro Interface for Your Enclosure
QuWireless "All-in-One" antennas are great because the router sits safely inside. But a problem often arises: How do I access the 4-pin power connector of the Teltonika router when the case is closed?
By default, the router is powered via the network cable (PoE). However, in industrial plants, boats, or RVs, a direct power supply (9-30V DC) is often preferred or more stable. Additionally, Teltonika routers offer valuable "Digital Inputs" (e.g., starting the router via ignition or triggering alarms), which are lost when using PoE.
The Solution: The Waterproof Feedthrough
The QuPS4 solves both issues. It screws into one of the free M25 openings of the antenna enclosure.
* Inside: A short cable (15cm) with the original 4-pin Molex connector plugs directly into the Teltonika router.
* Outside: You get a robust industrial socket. Using the included plug (which you solder/screw to your own power cable), you create an absolutely waterproof connection.
Pin Assignment (4 Pins)
The adapter passes through all 4 pins of the Teltonika power connector: 1. Power (+): For direct power supply. 2. Ground (-): Ground. 3. Input/Output: For digital signals (configurable depending on router model). 4. Input/Output: For digital signals.
Detailed Technical Data
| Design & Protection | |
| Product Type: | Outdoor Power & I/O Connector Set |
| IP Rating: | IP67 (Waterproof when screwed tight) |
| Mounting Hole: | M25 x 1.5 (Standard for QuWireless enclosures) |
| Material: | UV-resistant plastic / Brass contacts (Gold plated) |
| Electrical Properties | |
| Number of Pins: | 4 Pins (2x Power, 2x Data/IO) |
| Max. Voltage / Current: | Up to 200V / 5A (Limited by the router!) |
| Internal Connector: | 4-Pin Micro-Fit 3.0 (Fits Teltonika Power Socket) |
| Cable Length (Internal): | approx. 15 cm |
| Compatibility | |
| Enclosures: | All QuWireless QuMax / QuSpot / QuOmni enclosures |
| Routers: | Teltonika RUT240, RUT241, RUT950, RUT955, RUTX09, RUTX11, RUTX12, RUTX14, RUTX50 (All models with 4-pin power socket) |
Scope of Delivery
| 1 x QuPS4 Outdoor Socket (with cable for router) |

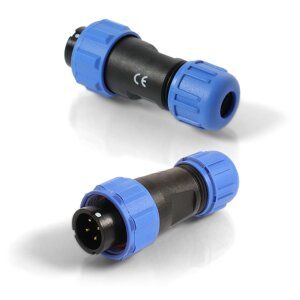

| 1 x QuPS4 Outdoor Plug (field installable) |
| 1 x Protective Cap (for socket when not in use) |
