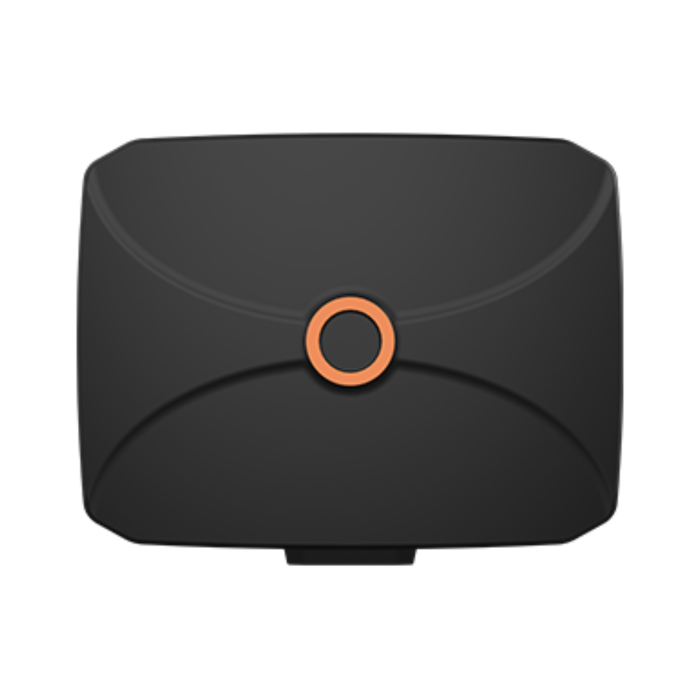

Your High-Speed Office on the Go: The Poynting PANL-401
No more dead zones and slow connections while traveling! The Poynting PANL-401 is your ultimate solution for reliable high-speed internet, no matter where you are. Many vehicles shield cellular signals – a common problem that the PANL-401 elegantly solves. As a powerful Vehicle Antenna, it is easily attached to your window without tools, optimally capturing the signal. Experience how your mobile connectivity reaches a new level with this advanced 5G Antenna and 4G Antenna.
4x4 MIMO & GNSS: The Complete Package for Your Connectivity
The Poynting PANL-401 is not just an antenna, but a true 5-in-1 powerhouse. It integrates four 4x4 MIMO cellular Antennas, offering you maximum data throughput and unparalleled signal stability – ideal for modern 4G / 5G Routers. Thanks to Cross-Polarization, interference is minimized and performance is optimized, even when you're on the move. Additionally, a high-precision dual-band GNSS Antenna (GPS) is on board, ensuring exact positioning and reliable navigation services. This way, you are always perfectly connected and oriented.
Robust, Flexible, Ready for Use: Your Partner for Any Environment
This Omnidirectional Antenna was developed for demanding everyday use. Its Low-Profile Design and robust housing are IP65 Weather Protection and IK08 Vandalism Protection certified, making it extremely resistant to dust, water, and impacts. The flexible Window Mount with suction cups or hook-and-loop fasteners allows for quick and uncomplicated installation on vehicle or building windows, without drilling or damage. Whether in mobile health clinics, for networking smart city infrastructure, or for remote monitoring in the energy industry – the PANL-401 is your reliable companion.
Future-Proof Performance for Your Mobile Projects
Invest in a solution that grows with your requirements. The Poynting PANL-401 offers Ultra-Broadband coverage from 410 to 6000 MHz, making it perfectly equipped not only for today's 4G/4G networks but also for future 5G technologies. This future-proof technology is perfect for demanding applications in the field of IoT (Internet of Things) and M2M (Machine-to-Machine) communication, where stable and fast connections are crucial. With the PANL-401, you are always one step ahead.
Strengths & Notes at a Glance
- Pro: Excellent connectivity and performance through 5-in-1 solution with 4x4 MIMO (5G/4G) and dual-band GNSS for high data throughput and precise positioning.
- Pro: Ultra-Broadband coverage (410-6000 MHz) and future-proof thanks to full compatibility with existing 4G/4G and future 5G technologies up to 6 GHz.
- Pro: Robust and flexible installation thanks to IP65 Weather Protection and IK08 Vandalism Protection, as well as easy, non-invasive Window Mount on vehicle or building windows.
- Note: Performance may be affected by certain window materials (e.g., metal-coated panes) or positioning inside the vehicle, as the antenna is designed for window mounting.
- Note: The fixed 2m long RTK031 4G / 5G Antenna Cables require the end device to be placed within reach and may necessitate cable routing through window seals or body parts.
Specifications & Features
| Manufacturer: | Poynting Antennas |
| Model: | PANL-401 (A-PANL-0401-V1-01) |
| Antenna Type: | Multifunctional Panel Antenna (5-in-1) |
| Antenna Characteristic: | Omnidirectional |
| Mobile MIMO: | 4x4 MIMO (4G/5G) |
| GNSS Type: | Dual-Band Active GNSS (GPS L1/L5) |
| Polarization: | Cross-Polarized (linear vertical & horizontal) |
| Mobile Frequency Range: | 410 – 6000 MHz (Ultra-Broadband) |
| Mobile Frequency Band 1: | 410 – 470 MHz |
| Mobile Frequency Band 2: | 617 – 960 MHz |
| Mobile Frequency Band 3: | 1427 – 1517 MHz |
| Mobile Frequency Band 4: | 1710 – 2700 MHz |
| Mobile Frequency Band 5: | 3300 – 4200 MHz |
| Mobile Frequency Band 6: | 5000 – 6000 MHz |
| GNSS Frequency L1: | 1575.42 MHz ± 25 MHz |
| GNSS Frequency L5: | 1176.45 MHz ± 25 MHz |
| Peak Gain (410–470 MHz): | 0.5 dBi (max) |
| Peak Gain (617–960 MHz): | 4 dBi (max) |
| Peak Gain (1710–2700 MHz): | 5 dBi (max) |
| Peak Gain (3400–4200 MHz): | 7.8 dBi (max) |
| Peak Gain (5000–6000 MHz): | 7 dBi (max) |
| VSWR: | ≤ 2:1 over 85% of supported bands |
| Impedance: | 50 Ohm |
| Cable Type: | 5x RTK031 Coaxial Cable |
| Cable Length: | 2 Meters (6.6 Feet) |
| Mobile Connectors: | 4x SMA (male) |
| GNSS Connectors: | 1x SMA (male) |
| Product Dimensions: | 267 mm × 210 mm × 31 mm |
| Weight (Product): | 0.88 kg |
| Radome Material: | UV-stable ASA |
| Mounting Options: | Self-adhesive hook-and-loop fasteners, Screw suction cups (Window Mounting) |
| Protection Class: | IP65 (Weather, Dust, and Water Resistant) |
| Impact Resistance: | IK08 (Vandalism Resistant) |
| Wind Resistance: | Up to 160 km/h |
| Operating Temperature Range: | -40°C to +80°C |
| Compliance: | RoHS 2011/65/EU compliant, ISO 9001:2015 |
Scope of Delivery
| 1 x Poynting PANL-401 Antenna (4x4 MIMO + GNSS) |
| 1 x Set of Screw Suction Cups (for Window Mounting) |
| 1 x Set of Self-Adhesive Hook-and-Loop Fasteners |
Frequently Asked Questions (FAQ)
Is the Poynting PANL-401 suitable for 5G networks?
Yes, the Poynting PANL-401 is a 5G-capable antenna that covers an ultra-wideband frequency range from 410 to 6000 MHz, making it compatible with current and future 5G technologies up to 6 GHz. So you can use it without hesitation for 5G networks.
What type of Antennas are integrated into the PANL-401?
The PANL-401 is a 5-in-1 antenna that includes four 4x4 MIMO cellular antennas (for 4G/LTE and 5G) and a dual-band GNSS antenna for precise positioning (GPS L1/L5). This provides you with a comprehensive solution in one device.
Can the Poynting PANL-401 also be used in bad weather?
Yes, the antenna features a robust, IP65-certified housing that makes it resistant to weather, dust, and vandalism. So you can rely on consistent performance under harsh conditions. It is also UV-stable and wind-resistant up to 160 km/h.
What mounting options does the PANL-401 offer?
The PANL-401 is designed for easy and non-invasive window mounting. You can securely attach it to vehicle or building windows using self-adhesive hook-and-loop strips or screw-on suction cups.
What advantages does 4x4 MIMO technology offer in this antenna?
The 4x4 MIMO technology with cross-polarized antennas enables higher data throughputs (faster speeds) and more stable connectivity. You particularly benefit in moving environments such as vehicles, as it supports multiple signal polarizations and improves performance.
What type of cables and connectors does the PANL-401 use?
The antenna comes with five 2-meter long RTK031 coaxial cables. Four of them have SMA connectors (male) for the cellular connection, and one cable has an SMA connector (male) for the GNSS connection. This allows you to connect it directly.
