Your WiFi Signal, Bundled Like a Laser Beam
The Cyberbajt YAGI 24-12 is no ordinary Antenna. Its Yagi-Uda design functions like an acoustic horn for radio signals. It collects energy from a very specific direction and bundles your transmission power just as precisely there. The result is an enormous 12dBi gain, enabling you to build stable WiFi bridges over distances where your router's signal would have long given up. Perfect for connecting two buildings, from your house to your workshop, or for receiving a camera signal from the furthest corner of your property.
Built for All Weather: Robust Outdoor Performance
Forget compromises. This Antenna was developed for continuous outdoor use. The housing is hermetically sealed, so neither rain nor snow has a chance to reach the sensitive electronics inside. Additionally, the plastic is UV-resistant and will not become brittle even after years of direct sunlight. With this weatherproof 2.4 GHz Yagi Antenna, you build a reliable connection that works 365 days a year, no matter what the weather forecast says.
Maximum Control for an Interference-Free Connection
In densely populated areas, the 2.4 GHz band is often crowded. This is where the YAGI 24-12 plays its greatest strength. Due to the narrow beamwidth of only approx. 35° horizontal and 30° vertical, the antenna 'hears' only what it should: the signal from your counterpart. Interfering Network signals from neighbors are effectively filtered out. Additionally, by mounting it (horizontally or vertically), you can change the polarization. This is a pro trick to minimize interference from signal reflections and guarantee a crystal-clear point-to-point connection.
Easy Installation, Professional Result

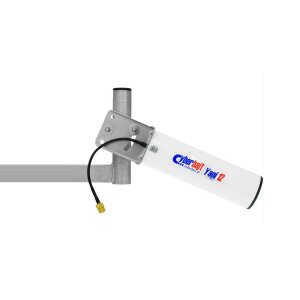

The antenna comes with everything you need for mounting on a mast (30-50 mm diameter). Thanks to its low weight and compact dimensions, installation is quick. The critical part is precise alignment. Take your time to align the antenna exactly with the counterpart to unleash its full performance. Connect it via a high-quality, low-loss Antenna Cable to your WiFi Router, WiFi Access Point, or a WiFi Repeater with an external antenna connection to minimize signal loss on the way to the device.
Strengths & Notes at a Glance
- Pro: High directivity bundles the signal and increases range and stability.
- Pro: Excellent weather resistance due to hermetically sealed, UV-resistant housing.
- Pro: Compact and discreet design for a 12dBi Yagi Antenna.
- Pro: Flexible mounting option for horizontal or vertical polarization to avoid interference.
- Note: Very precise alignment to the counterpart is absolutely necessary for full performance.
- Note: Performance strongly depends on the quality and length of the additionally required Antenna Cable.
Specifications & Features
| Manufacturer: | Cyberbajt |
| Model: | YAGI 24-12 |
| MPN: | YAGI 24-12 |
| EAN: | 5907776046254 |
| Antenna Type: | Yagi-Uda Directional Antenna |
| Frequency Range: | 2.4 - 2.485 GHz |
| Supported WiFi Standards: | IEEE 802.11b, 802.11g, 802.11n |
| Gain: | 12 dBi |
| Impedance: | 50 Ohm |
| Polarization: | Linear (Mountable Horizontally or Vertically) |
| Beamwidth (Horizontal): | 35° |
| Beamwidth (Vertical): | 30° |
| VSWR: | < 1.4 |
| Connector: | N-female |

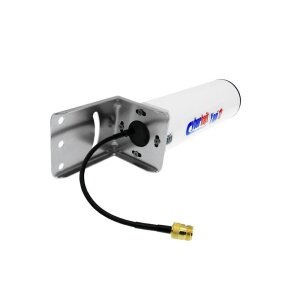

| Integrated Cable: | Yes, 0.25 Meter Pigtail |
| Housing Material: | Robust, UV-resistant Plastic |
| Weather Resistance: | Yes, hermetically sealed |
| Application Area: | Indoor & Outdoor |
| Mounting Type: | Mast or Wall Mount |
| Compatible Mast Diameter: | 30 - 50 mm |
| Dimensions (L x W): | 24.5 cm x 7.5 cm |
| Weight (incl. bracket): | 862 g |
| Color: | White |
Scope of Delivery
| 1 x Cyberbajt YAGI 24-12 Antenna |

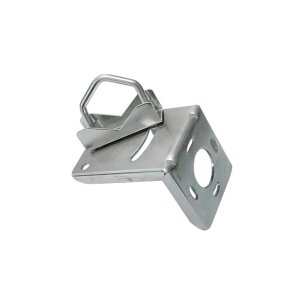

| 1 x Mounting Bracket |
| 1 x Mast Clamp (U-bolt) |
Frequently Asked Questions (FAQ)
Do you need one or two of these Antennas for a WiFi Bridge?
Yes, for a stable point-to-point WiFi Bridge, you always need two of these Antennas. One acts as a transmitter, the other as a receiver. Align both precisely with each other to get the best and fastest connection.
Can you connect the Antenna directly to your laptop?
No, unfortunately, you can't connect it directly. The Antenna requires an active WiFi device. However, you can use it perfectly with a WiFi USB Adapter that has an external antenna connector. For that, you'll just need the appropriate connection cable.
What does the 35°/30° beamwidth mean for you in practice?
Imagine the beamwidth like the light cone of a flashlight. Within this narrow area, your signal is super strong. Outside of it, it quickly diminishes. This means for you: aim the Antenna very precisely at the receiving end to utilize its full power.
Does this Antenna also work with my 5 GHz WiFi?
No, absolutely not. This Antenna is purely a 2.4 GHz specialist. Unfortunately, you cannot use it for your 5 GHz Network, as it's not built for that and wouldn't establish a connection.
Do you need to ground the Antenna when mounting it outdoors?
In most cases, you don't need to ground it separately, as the grounding occurs via the Antenna Cable and your connected device. However, if you mount the Antenna in a very exposed location, for example, on a tall mast, we strongly recommend professional grounding. This way, you optimally protect your devices.
Does the weather affect the performance of your Antenna?
The Antenna itself is absolutely weatherproof, so you don't need to worry. However, your WiFi signal can be slightly attenuated during extremely heavy rain or dense snowfall. Thanks to the strong 12 dBi gain, your connection has an excellent 'weather reserve,' so dropouts would only occur during severe storms.
