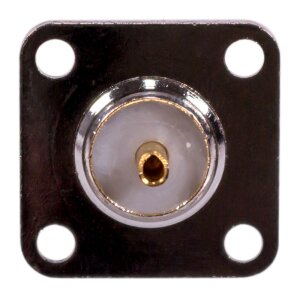

Built for Eternity: Your Rock-Solid N-Interface
When you create a connection, you want it to last. Forever. This N-Panel Mount Jack with 4-Hole Flange is made for exactly that. Forget wobbly central screw connections – the four mounting points guarantee an absolutely twist- and vibration-proof installation on your device housing, an Antenna base, or a control cabinet panel. Once mounted, it provides an extremely robust and reliable interface that withstands mechanical stresses. This is professional device construction as it should be.
Maximum Performance: Signal Transmission Without Compromises
In the high-frequency range, every detail counts. This Coaxial Adapter is specified with a precise impedance of 50 ohms and for a frequency range up to 11 GHz. For you, this means: minimal signal reflections (low VSWR) and extremely low insertion loss. Your signals arrive clean and strong, whether you're transmitting high data rates in WiFi, performing precise measurements, or working with high transmission power. This adapter is not a compromise, but a performance guarantee.
Only the Best: High-Quality Materials for Professional Demands
Quality is in the details. The housing made of nickel-plated brass offers excellent shielding and corrosion resistance. The inner conductor made of gold-plated beryllium copper ensures maximum conductivity and protects against oxidation – even after years. The core, the insulator made of PTFE (Teflon), not only withstands high temperatures during soldering but also ensures excellent electrical properties across the entire frequency range. An RF Coaxial Connector designed for continuous use.
Your Project, Your Rules: The Standard for Flexible Solutions
The N-connector is a globally established standard for robust radio applications. This gives you the freedom to choose from a huge selection of Cabling, Antennas, and devices. While mounting this jack requires some preparation – drilling the appropriate holes – the result is a clean, professional, and durable solution. The solder connection on the back gives you full control over the connection of your coaxial cable. Ideal for the robust N-connector for outdoor use on DIY Antennas or special RF assemblies, including 4G Outdoor Antennas and 5G Antennas.
Strengths & Notes at a Glance
- Pro: The four-hole flange ensures extremely stable, vibration-proof Mounting Systems on Enclosures and panels.
- Pro: Designed for high frequencies up to 11 GHz and high power transmission, ideal for professional applications.
- Pro: High-quality materials such as gold-plated contacts and PTFE dielectric guarantee durability and corrosion protection.
- Pro: As an established N-standard (MIL-STD-348), universally compatible with a variety of Cabling and devices.
- Note: Mounting requires precise drilling for the flange and the central passage, which increases installation effort.
- Note: The design is larger and heavier compared to smaller Coaxial Connectors like SMA.
Specifications & Features
| EAN/GTIN: | 4251028601526 |
| Manufacturer Item Number (HAN/MPN): | N-14-11-TGN |
| Shop SKU: | ART6283 |
| Product Type: | Coaxial Adapter, Panel Mount Jack |
| Connector A: | N-Jack (Female) |
| Connector B: | Solder Connection (Tab/Pin-Terminal) |
| Mounting Type: | Four-Hole Flange Mounting (Panel Mount) |
| Characteristic Impedance (Impedance): | 50 Ohm |
| Frequency Range: | DC to 11 GHz |
| Insulation Resistance: | ≥ 5.000 MΩ |
| Dielectric Withstanding Voltage: | up to 2.500 Vrms |
| Operating Voltage: | up to 1.000 Vrms |
| VSWR (Voltage Standing Wave Ratio): | Typ. ≤ 1.30 |
| Insertion Loss: | Typ. ≤ 0.15 dB |
| RF Leakage: | Typ. -90 dB @ 3 GHz |
| Housing Material: | Brass, nickel-plated |
| Center Contact: | Beryllium Copper or Brass, gold-plated |
| Dielectric (Insulator): | PTFE (Polytetrafluoroethylene) |
| Coupling Mechanism: | Threaded Coupling 5/8-24 UNEF |
| Flange Dimensions: | approx. 25 mm x 25 mm |
| Hole Spacing (Center-to-Center): | approx. 18 mm - 18.6 mm |
| Drill Diameter (Flange): | approx. 3 mm - 3.2 mm |
| Mating Cycles: | ≥ 500 |
| Operating Temperature Range: | -55 °C to +155 °C |
| Weather Resistance (mounted): | High Protection, often IP67 (with suitable mating connector) |
| RoHS Compliance: | Yes |
| Weight: | approx. 31 g |
Scope of Delivery
| 1 x Coaxial Adapter N-Jack with Four-Hole Flange (N-14-11-TGN) |
Frequently Asked Questions (FAQ)
Do you need special tools to mount your N-panel jack?
Yes, for a clean and stable installation, you need the right tools. You'll need a drill for the four mounting holes, a suitable screwdriver, and for connecting your Cabling, a soldering iron and a steady hand.
Is your N-jack waterproof for outdoor use, for example, on an Antenna?
Absolutely! The N-connection is very weather-resistant due to its design with sealing rings, often to IP67 standard, especially when you screw it together with a suitable N-connector. It's important that you properly install the jack into your Enclosures. Our tip: An additional seal between the flange and your housing wall ensures maximum protection, enhancing your Mounting Systems.
Can I also use this 50-ohm jack for my 75-ohm SAT cable?
We strongly advise you against it! This jack is specifically designed for 50 ohms, as is common with WiFi, 4G, or radio technology. Your SAT or TV system uses 75 ohms. Mixing them leads to significant signal loss and, in the worst case, can even damage your device's transmitter. Ensure you use appropriate Antenna Cables for your Cabling needs.
What is the white insulator inside made of and why is that important for me?
The insulator is made of high-quality PTFE, better known as Teflon®. This is super important for you because this material ensures extremely low-loss signal transmission even at high frequencies. Furthermore, it is so heat-resistant that it won't melt when you solder your Cabling.
How much power in watts can your N-jack handle?
This jack is a real powerhouse. N-connectors are designed for high power, often several hundred watts in the 2.4 GHz Components range. So, for all common applications like WiFi, 4G, or amateur radio, you are more than safe with it, making it ideal for your 4G / LTE Routers and 2.4 GHz Antennas.
Does every N-connector fit this panel jack?
Yes, as long as you use a standardized 50-ohm N-connector, it will fit perfectly. The N-standard ensures that Coaxial Connectors and jacks from different manufacturers are compatible. You just need to be careful not to accidentally pick up a rare 75-ohm connector. Check our Accessories for compatible Coaxial Adapters.
