No More Dead Zones: Increase WiFi Range in Your Home

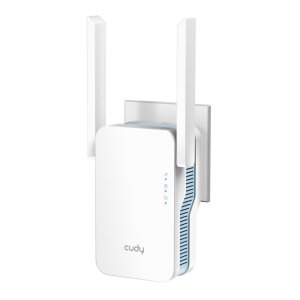

Do you know the feeling? WiFi reception is perfect in the living room, but just one floor up or in the garden, the connection constantly drops. The Cudy RE1200 was developed precisely for this. As a powerful WiFi Repeater, it picks up your router's signal, amplifies it, and reliably sends it to previously underserved areas. Thanks to the intelligent signal LED, you can easily find the optimal place for installation – simply plug it into the power outlet and observe the LED color. Blue means a perfect connection, so you can immediately surf, stream, and work at full power.
More Than Just an Extender: Flexible Access Point Mode
The RE1200 is more than just a simple signal booster. Do you already have a Network cable in a room, but no WiFi? No problem. Switch the RE1200 to Access Point mode. Simply connect it via cable to your existing Network, and it will immediately set up a new, stable WiFi hotspot. This makes it the perfect solution to provide devices in an office, workshop, or guest room with fast WiFi and use it as an Access Point for wired Network. The entire configuration is OS-independent and conveniently possible via any web browser.
Seamless Roaming: Your Entry into the Cudy Mesh World
Experience the future of home networking. In combination with a Cudy Mesh router, the RE1200 transforms into a full-fledged Mesh satellite. Instead of several different WiFi names (-EXT), you only have a single, seamless network (SSID) throughout the house. Your devices, such as smartphones or tablets, automatically switch to the strongest signal point without noticeable interruption as you move freely. This means annoying connection drops during video calls or streaming are finally a thing of the past. The RE1200 is your affordable entry into the world of professional WiFi Repeaters with Mesh technology.
Child's Play Installation: Online in Minutes Thanks to WPS & Signal LED
Complicated network configurations are a thing of the past. Setting up the Cudy RE1200 is incredibly easy. The fastest method is via WPS: Press the WPS button on your router and then on the RE1200. The devices will connect automatically within two minutes. Alternatively, an intuitive web interface guides you step-by-step through the configuration. The RE1200 is a versatile WiFi Repeater with LAN port that is compatible with any standard router and immediately simplifies your digital life. A reliable device for your entire Network.
Strengths & Notes at a Glance
- Pro: Extremely flexible due to 3-in-1 function (Repeater, AP, Mesh).
- Pro: Very easy setup via WPS button, ideal for beginners.
- Pro: Compatible with Cudy Mesh for a seamless WiFi experience.
- Pro: Intelligent signal LED facilitates optimal positioning.
- Note: The Ethernet port is limited to 100 Mbps (Fast Ethernet).
- Note: Supports Wi-Fi 5 (802.11ac) standard, not Wi-Fi 6.
Specifications & Features
| Manufacturer: | Cudy |
| Model: | RE1200 |
| EAN: | 6971690790165 |
| Device Type: | WiFi Mesh Repeater, Access Point |
| Chipset: | MediaTek MT7628A + MT7613B |
| CPU: | 580 MHz Single-Core, MIPS24KEC |
| Flash Memory: | 8 MB (64 Mbit) NOR |
| RAM: | 64 MB (512 Mbit) DDR2 |
| WiFi Standards: | IEEE 802.11ac/n/g/a/b (Wi-Fi 5) |
| Frequency Bands: | Dual-Band (2.4 GHz & 5 GHz) |
| Signal Rate 5 GHz: | up to 867 Mbps |
| Signal Rate 2.4 GHz: | up to 300 Mbps |
| Total Signal Rate: | AC1200 |
| Antennas: | 2x internal Antennas (2T2R MIMO) |
| Antenna Gain 5 GHz: | max. 6.24 dBi |
| Antenna Gain 2.4 GHz: | max. 3.49 dBi |
| WiFi Encryption: | WPA-PSK, WPA2-PSK, WPA3, OPEN |
| Ports: | 1x 10/100 Mbps Fast Ethernet RJ45 Port |
| Buttons: | WPS Button, Reset Button |
| LED Indicators: | Signal Strength (multi-color), WPS, Power |
| Special Features: | Cudy Whole Home Mesh, MU-MIMO (5 GHz), Beamforming |
| Power Supply: | AC Plug (100V ~ 240V) |
| Dimensions (H x W x D): | 129.6 × 80 × 48.6 mm |
| Weight: | approx. 205 g |
| Operating Temperature: | 0 °C ~ 40 °C |
| Certificates: | CE, FCC |

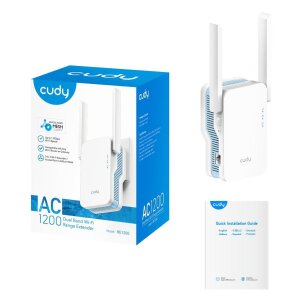

Scope of Delivery
| 1 x Cudy RE1200 WiFi Mesh Repeater |
| 1 x Quick Start Guide |
Frequently Asked Questions (FAQ)
What is the easiest way to set up the Cudy RE1200?
The easiest method is WPS setup. First, press the WPS button on your router and within two minutes, press the WPS button on the RE1200. The LEDs will indicate when the connection has been successfully established. Alternatively, you can connect to the 'Cudy-Extender' WiFi and perform the setup via the website http://cudyre.net in your browser.
What is the difference between Repeater and Access Point mode?
In Repeater mode (Range Extender), the RE1200 wirelessly receives your router's WiFi signal and retransmits it amplified. In Access Point mode, the RE1200 is connected to your router via an Ethernet Cable and creates a new, separate WiFi network. Access Point mode generally offers a more stable and faster connection.
What do the different colors of the signal LED mean?
The signal LED helps with optimal placement: Blue means a very good connection, Purple means a sufficient connection, and Red means a weak connection. If the LED is blinking red, there is no connection to the router.
Can I use the Cudy RE1200 with any router?
Yes, the Cudy RE1200 is universally compatible and works with any standard WiFi Router or gateway, regardless of the brand.
How do I reset the Cudy RE1200 to factory settings?
To reset the device, press and hold the 'Reset' button with a pointed object for about 2-5 seconds while the device is plugged in. The device will then restart with its factory settings.
Does the repeater create a new WiFi with a different name?
By default, yes, the new network names end with '-EXT2G' and '-EXT5G'. However, in a Cudy Mesh system, the repeater can adopt the same network name and password as the router to create a seamless network.
