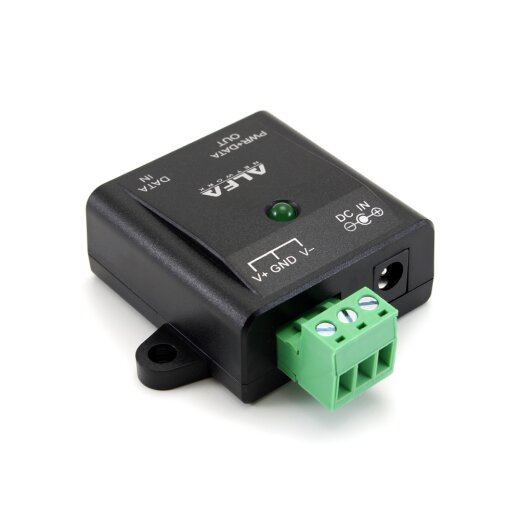

The Pro Injector for Industry & Installation
The ALFA APOE03G is more than just an adapter – it's a problem solver. While simple injectors often fail due to inflexible connectors, this model offers freedom. Want to wire an Access Point directly in the control cabinet? Use the Terminal Block. Only have a standard wall plug? Use the DC Jack.
Gigabit Speed without Compromise
Thanks to high-quality components, the APOE03G transmits data at up to 1000 Mbps. This is essential for modern applications like HD video surveillance or fast WiFi (WiFi 5 / WiFi 6), where Fast Ethernet injectors would become a bottleneck.
One Injector for All Voltages
From 5V single-board computers to 12V/24V camping hardware to 48V/57V pro equipment: This injector passes it all through.
Important: It is a passive injector (Input = Output). If your device needs 24V, you must feed in 24V.
Technical Data: Connectors
| LAN Port: | 1x RJ45 Gigabit (Data In) |
| PoE Port: | 1x RJ45 Gigabit (Data + Power Out) |
| Power Input 1: | DC Barrel Jack (Standard 5.5 / 2.1 mm) |
| Power Input 2: | 3-Pin Terminal Block (Screwable) |
Technical Data: Performance
| Voltage Range: | 5V DC to 57V DC |
| Max. Power: | Up to 48 Watts (depends on voltage) |
| Pinout: | Pins 4/5 (+) and 7/8 (-) |
| Data Rate: | 10/100/1000 Mbps |
Technical Data: General
| Manufacturer: | ALFA Network |
| Model: | APOE03G |
| Weight: | 40g |
| Temp. Range: | 0°C to 40°C |
Scope of Delivery
| 1x ALFA APOE03G PoE Injector |
| Note: Power supply not included! |
