Faster WiFi for your Home or Office

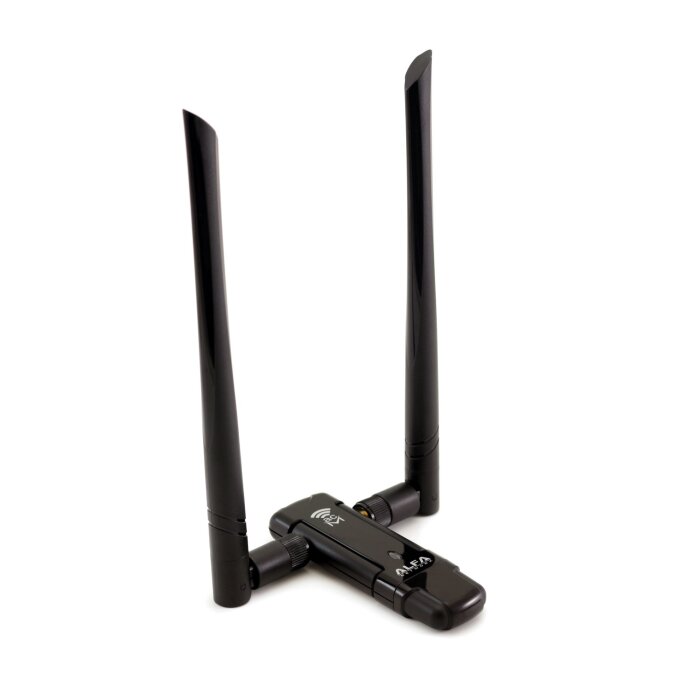

The ALFA Network AWUS036ACM is your ticket to a significantly faster and more stable WiFi experience. No more stuttering streams or long loading times! This WiFi USB Adapter uses the latest 802.11ac standard to deliver speeds of up to 1200 MBit/s. This means more bandwidth for all your online activities, be it HD streaming, online gaming, or video conferences. Simply plug it in and enjoy the benefits of a modern Network.
Dual-Band Power for Maximum Flexibility
With the AWUS036ACM's dual-band capability, you are perfectly equipped. You can choose between the 2.4 GHz band for greater range and better wall penetration, or the 5 GHz band for highest speeds and less interference. The 5 GHz band is ideal for bandwidth-intensive applications, while the 2.4 GHz band provides a solid foundation for everyday tasks. This way, you always have the optimal connection for your needs.
Optimal Range thanks to External Antennas
A special highlight are the two external, detachable WiFi Antennas. These give you full control over your reception. If the signal is weak, you can simply replace or reorient the Antennas to maximize performance. This is a huge advantage over adapters with internal antennas and makes the AWUS036ACM extremely versatile, especially in environments with many obstacles or greater distance to the WiFi Router.
Easy Installation and Broad Compatibility
Installing the ALFA Network AWUS036ACM is child's play. Simply plug the adapter into a free USB 3.0 port (backward compatible with USB 2.0), install the drivers – and you're online. It is compatible with a variety of operating systems, including Windows, macOS, and Linux, making it a flexible solution for almost any system. Whether you're looking for an upgrade for your old notebook or want to equip a new desktop PC with WiFi, this adapter is the perfect choice.
Strengths & Notes at a Glance
- Pro: High AC1200 Dual-Band speed for fast connections.
- Pro: External, detachable antennas for optimizable reception.
- Pro: USB 3.0 for maximum performance.
- Pro: Broad compatibility with common operating systems.
- Pro: Compact design, ideal for mobile use or fixed installation.
- Note: For full AC1200 speed, an 802.11ac WiFi Router is required.
- Note: Actual speed may vary depending on environmental conditions.
Specifications & Features
| Manufacturer: | ALFA Network |
| Model: | AWUS036ACM |
| Product Type: | WiFi USB Adapter |
| WiFi Standard: | IEEE 802.11ac/a/b/g/n |
| Speed: | Up to 1200 MBit/s (867 MBit/s on 5 GHz, 300 MBit/s on 2.4 GHz) |
| Frequency Bands: | 2.4 GHz and 5 GHz (Dual-Band) |
| Interface: | USB 3.0 (backward compatible with USB 2.0) |
| Antennas: | 2x external RP-SMA Antennas (detachable) |
| Chipset: | Realtek RTL8812AU |
| Security: | WEP, WPA, WPA2, WPA3, WPS |
| Operating Systems: | Windows XP/Vista/7/8/10/11, macOS 10.7-10.15, Linux |
| LED Indicator: | Activity/Link |
| Dimensions (without antennas): | approx. 85 x 26 x 10 mm |
| Operating Temperature: | 0°C to 40°C |
| Storage Temperature: | -10°C to 70°C |
| Humidity (Operating): | 10% to 90% (non-condensing) |
| Certifications: | CE, FCC |
Scope of Delivery
| 1 x ALFA Network AWUS036ACM WiFi USB Adapter |
| 2 x External RP-SMA Antenna |
| 1 x USB 3.0 Cable |
| 1 x Driver CD |
Frequently Asked Questions (FAQ)
What is the ALFA Network AWUS036ACM?
The ALFA Network AWUS036ACM is a powerful 802.11ac dual-band WiFi USB adapter that enables a wireless connection of up to 1200 Mbps.
What speeds does the AWUS036ACM achieve?
The adapter achieves speeds of up to 867 Mbps in the 5 GHz band and 300 Mbps in the 2.4 GHz band, resulting in a combined rate of 1200 Mbps.
Is the ALFA AWUS036ACM compatible with USB 2.0?
Yes, the ALFA AWUS036ACM is fully backward compatible with USB 2.0, but it works optimally with a USB 3.0 port for maximum performance.
Which operating systems are supported by the AWUS036ACM?
The AWUS036ACM supports common operating systems such as Windows (7/8/10/11), macOS, and various Linux distributions.
Can the AWUS036ACM be used for hacking or penetration testing?
Due to its chipset (Realtek RTL8812AU) and external antennas, it is popular among many users for such purposes, however, its primary function is to improve WiFi connectivity.
Do I need special drivers for the ALFA AWUS036ACM?
Yes, for full functionality and optimal performance, specific drivers are required, which can usually be found on the manufacturer's website or on the included CD.
Homepage: https://alfa.com.tw
