This SUNHANS high gain 2.4 GHz WiFi booster amplifies the TX output power of your WiFi device to 1000mW / 1 Watt / 30dBm and increases range, coverage, signal strenght and stability of your WiFi connection.
The Wi-Fi booster works bi-directional (TX/RX) and amplifies transmitter power (TX) and receiving sensitivity (RX) of your WiFi device.
You can either use this Wi-Fi amplifier on base stations like WiFi routers, Wi-Fi access points, WiFi repeaters or on client stations like WiFi USB dongles or WiFi PCI cards.
The WiFi booster allows you to build up WiFi conenctions on high distances or to cover large areas with your WiFi signal.
It is not necessary to install any driver or do any configuration. Just connect the WiFi booster to the to the external antenna connectir of your WiFi device. Very simple, very efective!
Technical Data:
| Manufacturer: | SUNHANS |
| Model: | AMP24-EU |
| Product: | WiFi Booster |
| Supported Standards: | IEEE 802.11b: 11Mbps IEEE 802.11g: 54Mbps IEEE 802.11n: 150Mbps (N Lite) |
| Frequency: | 2400 - 2485 MHz |
| Impedance: | 50 Ohm |
| RF Output power: | 1000mW [30dBm] |
| Transmit Gain: | 15dB |
| Receiver Gain: | 12dB |
| Input Trigger Power: | min. 5dBm max. 15 dBm (30mW) |
| Optimal Input Power: | 9dBm - 13 dBm |
| Noise factor: | 3.5 dB (typical) |
| Signal Input Connector: | 1 x SMA female Socket |
| Signal Output Connector: | 1 x RP-SMA male Socket |
| Application: | Indoor |
| Operating Temp.: | -40°C bis +70°C |
| Operating Humidity: | up to 95° rel. humidity |
| Casing: | Aluminium |
| Weight: | 560g |
| Dimensions: | 7.8 x 5.6 x 2.9cm |

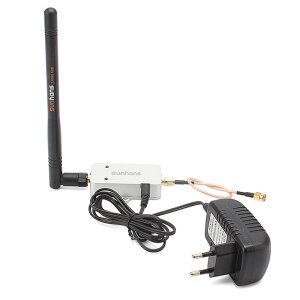

Scope of Delivery:
| 1 x SUNHANS AMP24-EU 2.4GHz 1000mW WiFi Booster |
| 1 x 5dBi 2.4GHz WiFi Antenna |
| 1 x 30cm RP-SMA Connection Cable |
| 1 x 12V / 2A Power Supply (EU) |
