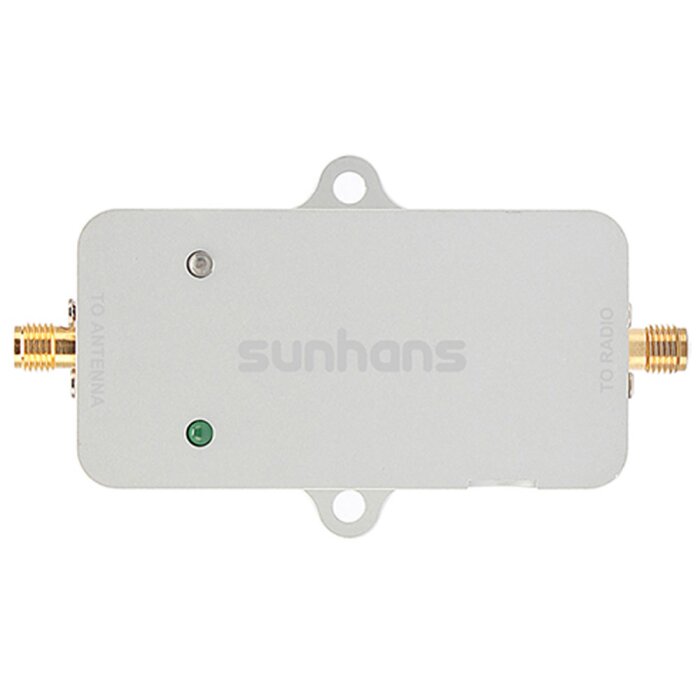

SUNHANS AMP24-EU | 2.4 GHz WiFi Booster / Amplifier, 1000mW / 30dBm, 5dBi Antenna

SUNHANS WiFi amplifier / booster for the 2.4 GHz frequency band with an output power of 1000mW / 30dBm. Increase the transmission power, reception sensitivity and the range of your WiFi network using this WiFi booster. A antenna with 5dBi performance gain and a suitable connection cable with RP-SMA connector is included.
ART5780 6958917600810 AMP24-EU
49,99 €
incl. 19% VAT , plus shipping costs (Standard)
pcs
  • Available immediately
  • Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)
  • SKU: ART5780
  • GTIN: 6958917600810
  • Manufacturers:
Description

This SUNHANS high gain 2.4 GHz WiFi booster amplifies the TX output power of your WiFi device to 1000mW / 1 Watt / 30dBm and increases range, coverage, signal strenght and stability of your WiFi connection.

The Wi-Fi booster works bi-directional (TX/RX) and amplifies transmitter power (TX) and receiving sensitivity (RX) of your WiFi device.

You can either use this Wi-Fi amplifier on base stations like WiFi routers, Wi-Fi access points, WiFi repeaters or on client stations like WiFi USB dongles or WiFi PCI cards.

The WiFi booster allows you to build up WiFi conenctions on high distances or to cover large areas with your WiFi signal.

It is not necessary to install any driver or do any configuration. Just connect the WiFi booster to the to the external antenna connectir of your WiFi device. Very simple, very efective!


Technical Data:

Manufacturer:SUNHANS
Model:AMP24-EU
Product:WiFi Booster
Supported Standards:IEEE 802.11b: 11Mbps
IEEE 802.11g: 54Mbps
IEEE 802.11n: 150Mbps (N Lite)
Frequency:2400 - 2485 MHz
Impedance:50 Ohm
RF Output power:1000mW [30dBm]
Transmit Gain:15dB
Receiver Gain:12dB
Input Trigger Power:min. 5dBm
max. 15 dBm (30mW)
Optimal Input Power:9dBm - 13 dBm
Noise factor:3.5 dB (typical)
Signal Input Connector:1 x SMA female Socket
Signal Output Connector:1 x RP-SMA male Socket
Application:Indoor
Operating Temp.:-40°C bis +70°C
Operating Humidity:up to 95° rel. humidity
Casing:Aluminium
Weight:560g
Dimensions:7.8 x 5.6 x 2.9cm


Scope of Delivery:

1 x SUNHANS AMP24-EU 2.4GHz 1000mW WiFi Booster
1 x 5dBi 2.4GHz WiFi Antenna
1 x 30cm RP-SMA Connection Cable
1 x 12V / 2A Power Supply (EU)

Average item rating
Share your experiences with other customers!

All reviews:

Total entries: 1
“ Breitband-Zweirichtungs-Verstärker (BDA Bi-Directional Amplifier), auch als Bi-Booster bezeichnet).
5 from 5
“ Breitband-Zweirichtungs-Verstärker (BDA Bi-Directional Amplifier), auch als Bi-Booster bezeichnet).

Ich hatte ein Funk-Türsprechanlagen-Empfangsschwächen-Problem (TSA-Anlage 2,4 bis 2,48 GHz ist standalone, vom WLAN unabhängig)!
Das Türgerät arbeite „Half Duplex” mit Zeitschlitze von ca. 400 µs)! Mit einer kurzen 8dbi-Koppelantenne direkt parallel über die obenliegende TSA-Antenne habe ich am Booster „To Radio“ (SMA Schraube Loch) verbunden (Schwellwert-Steuer-Eingang). Am Boosteranschluss „To Antenna“ (SMA Schraube Pin) ist ein 10 m Koax-Kabel WW50 Ohm mit einer 12dBi-Antenne im Haus verbunden. Jetzt funktioniert endlich die TSA und macht was sie soll. Dieser Booster hält was er verspricht!
