Your Network, Your Rules: Maximum Flexibility in Power Supply
Forget the search for power outlets! The Ubiquiti UniFi Switch Ultra 60W revolutionizes your Network infrastructure with its unique power supply option. This Gigabit Ethernet Switch can power itself via the PoE++ (802.3bt) input port. This means for you: You can install the switch in locations where a normal power outlet is scarce – be it in suspended ceilings, cramped server cabinets, or hidden behind furniture. This not only reduces cable clutter but also opens up entirely new possibilities for designing your Network. Installation becomes incredibly simple, and your devices are always optimally placed.
Power for Your Devices: Reliable PoE+ Supply
With the Ubiquiti UniFi Switch Ultra 60W, you have full control over the power supply of your network devices. With the included 60W AC adapter, a generous 52W PoE budget is available to you, distributed across seven PoE+ (802.3at) output ports. This is more than enough power to reliably supply your UniFi Access Points, high-resolution IP Cameras, or your VoIP Phones with power and data. No more separate power supplies, no cable clutter – just plug in and get started. For even more demanding setups, you can even extend the PoE budget to up to 202W with an optional 210W AC power supply, allowing you to operate even more devices simultaneously.
Intelligent Control: Layer 2 Management for Your Network
The USW-Ultra-60W is not just a simple distributor, but a full-fledged Layer 2 Managed Switch that offers you advanced control over your network. With features like VLANs (up to 256), STP/RSTP for loop prevention, Egress Rate Limiting, and Storm Control, you can precisely segment, optimize, and secure your network. Whether you want to set up guest networks, prioritize data traffic, or efficiently troubleshoot problems – this Ethernet Switch provides you with the tools you need for a stable and powerful network. Intuitive management is done centrally via the familiar UniFi Network Management.
Compact, Flexible, Unobtrusive: Your Switch for Any Environment
Its sleek design makes the Ubiquiti UniFi Switch Ultra 60W a true all-rounder in terms of placement. Whether you want to discreetly place it on your desk, mount it space-savingly on the wall, or even magnetically attach it to a metal surface – this compact PoE switch adapts perfectly to your needs. Its small dimensions and unobtrusive design ensure that it blends seamlessly into any environment without standing out. This keeps your network powerful and aesthetically pleasing at the same time.
Strengths & Notes at a Glance
- Pro: High PoE availability with 52W PoE budget (with 60W AC adapter) for access points, IP Cameras, and VoIP phones.
- Pro: Flexible power supply options via the included AC/DC adapter or via PoE++ (802.3bt) on the input port.
- Pro: Compact design and versatile mounting (desktop, wall, magnetic) for easy integration.
- Note: The maximum PoE budget of 52W is achieved with the 60W AC adapter; for up to 202W, a separately available 210W AC power supply is required.
- Note: As a pure Layer 2 switch, it does not offer Layer 3 routing functions, which may be relevant for very complex network requirements.
Specifications & Features
| Manufacturer: | Ubiquiti |

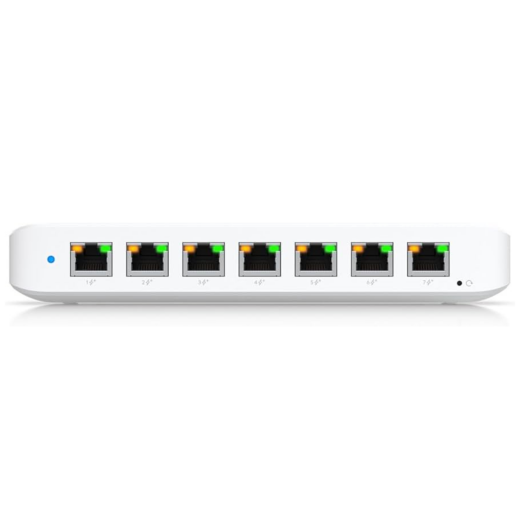

| Model: | UniFi Switch Ultra 60W (USW-Ultra-60W) |
| Product Type: | Gigabit Ethernet Switch |
| Number of Ports: | 8x Gigabit Ethernet RJ45 |
| PoE Output Ports: | 7x PoE+ (802.3at) |
| PoE Input Port: | 1x PoE++ (802.3bt) |
| PoE Budget (with 60W Adapter): | 52W |
| PoE Budget (with PoE++ Input): | 42W |
| PoE Budget (with optional 210W Adapter): | Up to 202W |
| Switch Type: | Layer 2 Managed Switch |
| Management: | UniFi Network Management |
| VLANs: | Up to 256 |
| Advanced Layer 2 Functions: | STP/RSTP, Egress Rate Limiting, Flow Control, Storm Control, Port Isolation, Port Mirroring |
| Mounting Options: | Desktop, Wall, Magnetic |
| Dimensions (W x D x H): | approx. 166 x 110 x 30 mm |
| Weight: | approx. 0.5 kg |
Scope of Delivery
| 1 x Ubiquiti UniFi Switch Ultra 60W (USW-Ultra-60W) |
| 1 x 60W AC Adapter |
| 1 x Mounting Material |
Frequently Asked Questions (FAQ)
What is the PoE budget of the Ubiquiti USW-Ultra-60W?
With the included 60W AC adapter, your PoE budget is 52W. If you use a PoE++ input, it is 42W, and with an optional 210W AC adapter, it can be up to 202W.
Can the Ubiquiti USW-Ultra-60W be powered via PoE itself?
Yes, the switch features a Gigabit Ethernet port that supports PoE++ (802.3bt) as a power input, allowing you to power the switch itself over Ethernet.
What type of ports does the Ubiquiti UniFi Switch Ultra 60W have?
It has a total of 8 Gigabit Ethernet RJ45 ports. Of these, 7 are PoE+ (802.3at) output ports and 1 is a PoE++ (802.3bt) input port, which also serves as your power input.
Is the Ubiquiti USW-Ultra-60W a Layer 2 or Layer 3 switch?
It is a Layer 2 switch, offering comprehensive Layer 2 management features such as VLANs, STP/RSTP, and Storm Control.
What applications is the Ubiquiti USW-Ultra-60W suitable for?
It is ideal if you want to power UniFi Access Points, IP Cameras, VoIP phones, and other PoE devices in your office, retail store, or smart home, especially in space-constrained environments.
What mounting options does the Ubiquiti USW-Ultra-60W offer?
The switch supports desktop, wall, and magnetic mounting options, allowing for flexible placement in various environments.
