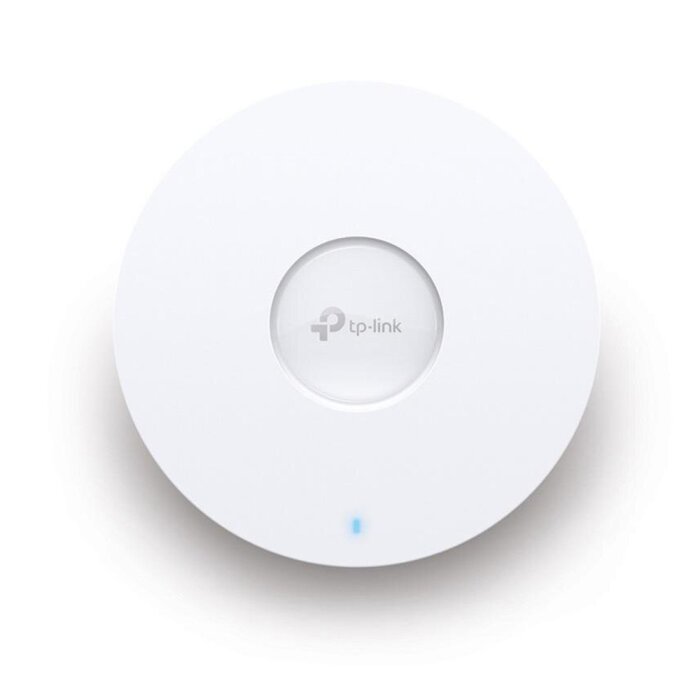

EAP653 UR: When Range Truly Matters
You know the problem: massive walls, expansive office spaces, or multiple floors, and the WiFi signal constantly drops. The TP-Link Omada EAP653 UR was developed precisely for this challenge. The 'UR' stands for Ultra-Range and is not an empty marketing promise here. Through the combination of internal high-gain Antennas (up to 5 dBi) and optimized transmit power, this WiFi Access Point penetrates obstacles significantly more effectively than standard models. The result is stable and far-reaching coverage that you can rely on in every corner of your business Network.
Next-Gen Wi-Fi 6 for High-Density Environments
In modern networks, countless devices compete for bandwidth. The EAP653 UR brings the necessary power and intelligence with Wi-Fi 6 (802.11ax) to manage this chaos. With features like OFDMA and MU-MIMO, data packets are distributed more efficiently to many clients simultaneously, drastically reducing latency and increasing the overall capacity of the Network. Support for the 160 MHz channel (HE160) is a real game-changer: it doubles the theoretical speed on the 5 GHz band and enables lightning-fast connections for data-intensive applications – ideal for video conferencing, large downloads, and cloud applications.
Seamless Integration into the Omada SDN Ecosystem
This WiFi Access Point is more than just a lone warrior – it's a team player in the TP-Link Omada ecosystem. Via the Software Defined Networking (SDN) platform, you manage all your Omada devices like Switches, Routers, and other WiFi Access Points centrally through a single interface. Whether via a hardware controller, software on your server, or directly from the cloud – you have full control. Set up seamless roaming, create a stable Mesh Network, or configure guest portals with a few clicks. This saves time, reduces administrative effort, and makes your network future-proof and scalable.
Maximum Flexibility in Power Supply and Mounting
Every installation environment is different. That's why the EAP653 UR offers you maximum flexibility. You can easily power it and provide data via a PoE+-enabled Ethernet Switch – a single cable is sufficient. Alternatively, 48V Passive PoE is also supported. If no PoE is available, you can connect a separate 12V power adapter. The included Mounting Kit allows for quick and clean installation on ceilings, walls, or directly on a junction box. Please note that separate PoE Injectors / Power Supplies are required for power, as these are not included in the scope of delivery.
Strengths & Notes at a Glance
- Pro: Excellent range and wall penetration thanks to Ultra-Range design.
- Pro: Full Wi-Fi 6 efficiency with HE160 support for maximum speed.
- Pro: Extremely flexible Power Supply options (PoE+, Passive PoE, DC).
- Pro: Seamless integration into the Omada SDN platform for centralized cloud management.
- Note: The Gigabit Ethernet Port can become a bottleneck during extremely high WiFi utilization.
- Note: No power adapter or PoE Injector included – must be purchased separately.
Specifications & Features
| Manufacturer: | TP-Link |
| Model: | Omada EAP653 UR |
| EAN: | 8885020620566 |
| Manufacturer Part Number (MPN): | EAP653 UR |
| Device Classification: | WiFi Access Point (AP) |
| WiFi Standards: | IEEE 802.11ax/ac/n/g/b/a |
| Frequency Bands: | Dual-Band (2.4 GHz & 5 GHz) |
| Max. Signal Rate (5 GHz): | Up to 2402 Mbps |
| Max. Signal Rate (2.4 GHz): | Up to 574 Mbps |
| WiFi Speed Class: | AX3000 |
| Ports: | 1 × Gigabit Ethernet (RJ-45) Port |
| Concurrent Clients: | 250+ |
| Number of SSIDs: | Up to 16 (8 per frequency band) |
| Antenna Type: | Internal, omni-directional Antennas |
| Antenna Gain (2.4 GHz): | 2 × 5 dBi |
| Antenna Gain (5 GHz): | 3 × 5 dBi |
| Transmit Power (CE, 2.4 GHz): | < 20 dBm |
| Transmit Power (CE, 5 GHz): | < 23 dBm (Band 1/2), < 29 dBm (Band 3) |
| Transmit Power (FCC, 2.4 GHz): | < 26 dBm |
| Transmit Power (FCC, 5 GHz): | < 27 dBm |
| Receive Sensitivity (5 GHz HE160): | -87dBm (MCS0) to -58dBm (MCS11) |
| Wi-Fi 6 Features: | OFDMA, MU-MIMO, 1024-QAM, HE160, 4x longer OFDM symbol |
| Advanced WiFi Features: | Omada Mesh, Seamless Roaming (802.11k/v/r), Band Steering, Load Balancing, Airtime Fairness, Beamforming |
| Management: | Centralized via Omada SDN Controller (Hardware, Software, Cloud) or Standalone Mode |
| QoS: | WMM (Wi-Fi Multimedia) |
| WiFi Encryption: | WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Authentication Methods: | Captive Portal (Guest Portal), 802.1X Authentication |
| Security Features: | MAC Address Filtering, Client Isolation, SSID to VLAN Mapping, Rogue AP Detection |
| Dimensions (W x D x H): | 160 × 160 × 33.6 mm |
| Weight: | approx. 730 g |
| Mounting: | Ceiling/Wall Mount, Junction Box Mount (Kits included) |
| Power Supply (PoE+): | 802.3at PoE+ |
| Power Supply (Passive PoE): | 48V Passive PoE |
| Power Supply (DC): | 12V DC / 1.5 A (Power Adapter not included) |
| Max. Power Consumption (EU): | 14.2 W |
| Max. Power Consumption (US): | 15.5 W |
| Operating Temperature: | 0–40 °C |
| Storage Temperature: | -40–70 °C |
| Operating Humidity: | 10–90% RH (non-condensing) |
| Certificates: | CE, FCC, RoHS |
Scope of Delivery
| 1 x TP-Link Omada EAP653 UR Access Point |
| 1 x Ceiling/Wall Mount Kit |
| 1 x Installation Guide |
Frequently Asked Questions (FAQ)
What is the main difference between the EAP653 and the EAP653 UR?
The main difference lies in the range, as 'UR' stands for Ultra-Range. The EAP653 UR features higher-gain Antennas (5 dBi) and optimized transmission power, allowing for better signal coverage and wall penetration within your Network. This makes it an excellent choice for a robust WiFi Access Point.
Do I need an Omada Controller to use the EAP653 UR?
No, not necessarily. The WiFi Access Point can be configured in standalone mode via a web interface or the Omada App. However, for advanced functions such as central management, seamless roaming, and Mesh functionality, a TP-Link Omada SDN Controller is required to optimize your Network.
Does the EAP653 UR support the 160 MHz channel?
Yes, the EAP653 UR supports HE160, which means a 160 MHz channel width on the 5 GHz Components band. This enables significantly higher transmission rates with compatible Wi-Fi 6 end devices, enhancing your Network's performance.
Can I operate the Access Point with a normal PoE Switch?
No, a Switch with PoE+ (802.3at standard) is required, as the power consumption of the WiFi Access Point can exceed the normal PoE standard (802.3af). Alternatively, a 48V passive PoE Injector / Power Supply or a 12V power adapter can be used for your Network setup.
Is the mounting material included?
Yes, the package includes a complete Mounting Systems kit for installation on ceilings or walls, including the mounting plate and necessary screws for your Network infrastructure.
How many devices can connect simultaneously to the EAP653 UR?
The WiFi Access Point is designed for over 250 simultaneous clients. Thanks to Wi-Fi 6 technologies like OFDMA and MU-MIMO, efficiency in Networks with many devices is significantly improved, making it a powerful WiFi Router alternative.
