Your Network, Your Rules: The Gigabit Switch with VLAN Function
The TL-SG105PE is no ordinary distributor. As an 'Easy Smart' Switch, it bridges the gap between simple Unmanaged Switches and complex Managed solutions. This means you get professional tools that are easy to use. With the Gigabit Switch with VLAN Function, you can divide your Network into logical areas – for example, a separate Network for your guests, one for your work devices, and another for your IP Cameras. This not only increases security but also performance. Via the web-based interface or the Windows tool, you can also configure Quality of Service (QoS) to always guarantee the necessary bandwidth for important applications such as video conferencing or streaming.

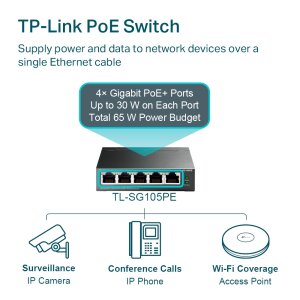

Full Power for Your Setup: 65W PoE+ for Cameras and Access Points
Forget countless power supplies and power strips. The four PoE+ ports of the TL-SG105PE are the powerhouse for your Network. With a generous total budget of 65 watts and up to 30 watts per port, you can effortlessly power even demanding devices like 4K PTZ cameras, modern WiFi Access Points, or VoIP phones with power and data over a single Ethernet Cable. The intelligent power management protects the system from overload. Should consumption exceed 65W, the port with the lowest priority is automatically shut down to secure the operation of the most important devices.
Maximum Reliability: PoE Auto Recovery for Stable Connections
What happens if a high-mounted surveillance camera crashes? With a normal Switch, you would have to manually disconnect the power. The TL-SG105PE does it for you. The ingenious PoE Auto Recovery function constantly monitors connected PoE devices. If the Switch detects that a device is no longer responding, it automatically restarts it. This professional feature ensures enormous reliability for your Network and saves you tedious maintenance – an invaluable advantage for all important and hard-to-reach installations.
Compact, Robust, and Absolutely Silent: Perfect for Any Environment
Performance doesn't have to be loud. Thanks to its well-thought-out, fanless design, the TL-SG105PE operates absolutely silently. This makes it the perfect partner for noise-sensitive environments like your home office, living room, or small offices. The robust metal housing not only looks high-quality but also dissipates heat efficiently and ensures a long lifespan. With its compact dimensions and mounting holes for wall installation, this powerful Ethernet Switch can be flexibly and discreetly placed wherever you need it.
Strengths & Notes at a Glance
- Pro: High PoE+ budget of 65W in a very compact, fanless housing.
- Pro: Essential management functions like VLAN and QoS for more control and Network stability.
- Pro: PoE Auto Recovery automatically restarts unresponsive devices – a feature for professionals.
- Pro: Absolutely silent operation thanks to fanless design, ideal for office and living areas.
- Note: The external Power Supply is necessary for high performance but is comparatively large.
- Note: The configuration software is only available for Windows; for macOS/Linux, the web interface remains.
Specifications & Features
| Manufacturer: | TP-Link |
| Model: | TL-SG105PE |
| EAN: | 6935364052744 |
| Device Type: | Layer-2 Easy Smart Network Switch |
| Ports: | 5 x 10/100/1000 Mbps RJ45 Ports |
| PoE+ Ports (RJ45): | Port 1 to 4 |
| PoE Standard: | IEEE 802.3af, IEEE 802.3at |
| PoE Total Power (Budget): | 65 Watts |
| PoE Power per Port: | Up to 30 Watts |
| Switching Capacity: | 10 Gbps |
| Packet Forwarding Rate: | 7.44 Mpps |
| MAC Address Table: | 2K Entries |
| Packet Buffer Memory: | 1.5 Mb |
| Jumbo Frame Support: | 16 KB |
| Transmission Method: | Store-And-Forward |
| Management: | Web-based GUI, Easy Smart Configuration Utility (Windows) |
| Quality of Service (QoS): | Port-based/802.1p/DSCP, 4 Priority Queues, Rate Limit, Storm Control |
| VLAN: | Supports up to 32 VLANs simultaneously (from 4K VLAN IDs), MTU/Port/Tag VLAN |
| L2 Features: | IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
| PoE Special Function: | PoE Auto Recovery |
| Housing: | Metal |
| Cooling: | Fanless Design |
| Mounting: | Desktop or Wall Mount |
| Dimensions (W x D x H): | 99.8 x 98 x 25 mm |

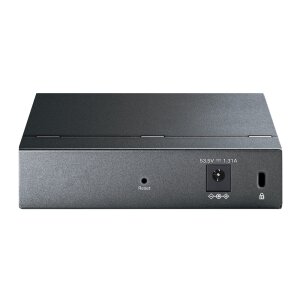

| Power Supply: | External Power Adapter (Output: 53.5 VDC / 1.3 A) |
| Max. Power Consumption: | 4.52 W (without PoE load), 75.16 W (with 65W PoE load) |
| Operating Temperature: | 0°C to 40°C |
| Certifications: | FCC, CE, RoHS |
Scope of Delivery
| 1 x TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch |
| 1 x External Power Adapter with Power Cable |
| 1 x Installation Guide |
| 1 x Rubber Feet |
Frequently Asked Questions (FAQ)
Can I also operate devices without PoE on this switch?
Yes, absolutely. All 5 ports of the switch automatically detect whether a connected device requires PoE or not. You can easily connect computers, printers, or other non-PoE devices to any port; only data will be transmitted then.
What happens if I connect devices that together require more than 65 watts of power?
The switch features intelligent power management. If the total power of 65W is exceeded, the switch automatically shuts down the port with the lowest priority (Port 4) to ensure Power Supply to the more important ports (Port 1-3).
Is the switch suitable for wall mounting?
Yes, the metal housing of the TL-SG105PE has corresponding mounting holes on the underside, allowing for easy wall mounting.
Do I need to configure the switch before I can use it?
No, the switch works 'Plug and Play' right out of the box. No configuration is necessary for basic network distribution. However, to use advanced features like VLANs or QoS, you need to connect via the web interface.
What does 'Easy Smart Switch' mean?
An 'Easy Smart' switch is a hybrid of an Unmanaged and a Fully Managed switch. It offers important management functions like VLAN and QoS but is easier to configure than a complex Fully Managed switch.
Does the switch support 2.5 GBit/s on its ports?
No, all five RJ45 ports support a maximum speed of 1 GBit/s (1000 MBit/s). The stated switching capacity of 10 GBit/s refers to the total internal bandwidth, not the port speed.
