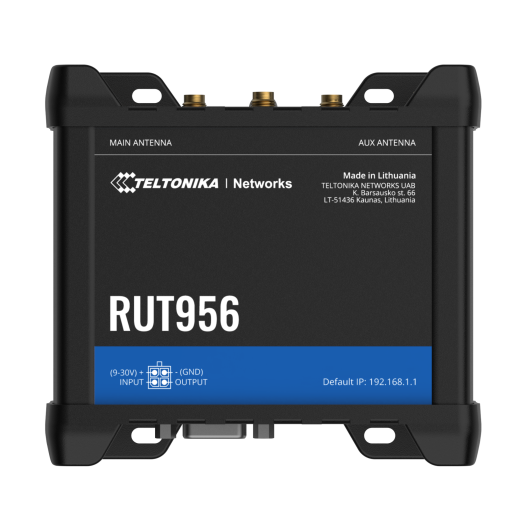

The TELTONIKA RUT956 is highly reliable and secure 4G router with I/O, GPS and RS232/RS485 for professional applications. The Router delivers high performance, mission-critical cellular communication. RUT956 is equipped with connectivity redundancy through dual SIM failover. External antenna connectors make it possible to attach desired 3G / 4G or WiFi antennas and to easily find the best signal location.
The RUT956 4G router allows you to set up a constant 4G or 3G internet connection with transfer rates of up to 100 Mbps downlink and 50 Mbps uplink in 4G mode and 42 Mbps download and 5.76 Mbps upload (DC-HSPA + standard) in 3G mode and set up a wireless / wired network to share the 4G or 3G connection.
The TELTONIKA RUT956 4G router has two SIM card slots. You can use two differend providers to build a redundant 4G or 3G connection with Failover and Fallback function.
The built-in WiFi access point allows to create your own wireless network to use an easy way of connecting your wireless client to the RUT956. The WiFI AP offers transfer rates of up to 300Mbps (Wireless N standard) with latest encryption and security standards such as WPA / WPA-2. Even the connection of wired devices or the integration into an existing wired network is not a problem. For this purpose, the RUT956 has an integrated 3-port 10/100Mbps Ethernet switch.
The RUT956 4G industrial router has two external 4G antennas and two external WiFi antennas which can be easily replaced by stronger antennas.
The user-friendly web interface allows all users to comfortably configure the router.
The rugged aluminum housing, solid engineering and the firmware ensure consistent performance and durability of TELTONIKA RUT956.
Technical Data:
| Manufacturer / Model: | TELTONIKA / RUT956 |
| Modes: | Router, NAT Router, Bridge, PPPoE Client, WiFi Client, WiFi Repeater |
| Processor: | Mediatek, MT7628, 580 MHz |
| Memory: | 128MB, DDR2 |
| FLASH memory: | 16MB SPI Flash |
| Frequency: | 4G FDD B1, B3, B5, B7, B8, B20 4G TDD: B38, B40, B41 UMTS, HSDPA, HSUPA, HSPA+, DC-HSPA+: 850, 900, 2100MHz GSM, GPRS, EDGE: 900, 1800 MHz |
| Bandwidth 4G: | Download: 150Mbps (CAT4) Upload: 50 Mbps |
| Bandwidth 3G: | Download: 42Mbps Upload: 5.76Mbps |
| 4G/3G Antenna: | 2 x 3dBi detachable omnidirectional antenna with 3,0 meter cable (SMA) |
| Features: | NAT, DHCP Server/Client, Virtual Server, DMZ Host, Firewall with IP-, MAC and Domain-Filter, RMS support, 4G/3G backup WAN function, OpenVPN, PPTP, L2TP, QOS, IPsec, Port Forwarding, VRRP, GRE Tunnel, SMS Control, DynDNS, Input Triggers, Samba Share, GPS |
| Industry Options: | 1 x 2/4 wire RS485, 1 x DB9 full-featured RS232 |
| Interfaces: | 1 x microSD Slot, 1 x USB 2.0 (A) |
| SIM Interface: | 2 x Standard Mini-SIM Slot |
| WAN Interface: | 1 x 10/100Mbps WAN Port |
| LAN Interface: | 3 x 10/100MMbps LAN Ports (Auto MDI-X, Auto-Negotiation) |
| WiFi Frequency: | IEEE 802.11b (11 Mbps) IEEE 802.11g (54 Mbps) IEEE 802.11n (300 Mbps) |
| Channels: | Europe: 13 USA: 11 |
| Security: | WPA2-Enterprise - PEAP, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation |
| WiFi Antenna: | 2 x 5dBi detachable Wi-Fi antenna with 1,5 meter cable (RP-SMA) |
| Power Supply: | 9-30V |
| Power consumption: | < 2W idle, < 7W Max. |
| Appliance: | Indoor |
| E-mark certification: | Yes |
| Dimensions: | 8 x 10.6 x 4.6 cm |
| Casing: | Aluminium |
| Weight: | 280g |
| Operating temperature: | -40°C to 70°C |
| Storage temperature: | -45° to +85° Celsius |
| Humidity: | 5% ~ 95% non condensing |
Scope of delivery:
| 1 x TELTONIKA RUT956 4G Router |
| 1 x Manual |
| 2 x 3dBi 3G/4G Antenna (SMA) |
| 2 x 5dBi WiFi Antenna (RP-SMA) |
| 1 x 1m CAT5e Ethernet cable |
| 1 x 9V/1A Power Supply with terminal block |
