Maximum Performance for Your Connectivity

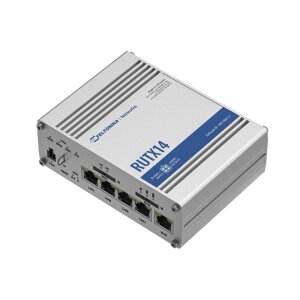

The Teltonika RUTX14 is not just a router; it's your guarantee for an uncompromisingly fast and stable internet connection. As the fastest single-modem 4G router in Teltonika's portfolio, it brings you impressive download speeds of up to 600 Mbps and uploads of up to 150 Mbps, thanks to 4G Cat 12 and Carrier Aggregation. This is crucial for applications requiring high bandwidth, such as live streaming of HD videos or transferring large amounts of data in real-time. With the Dual SIM function, you are always on the safe side: if the first SIM card fails or has a poor signal, the router automatically switches to the second. This keeps your connection stable and uninterrupted at all times – a real plus for critical infrastructures and mobile applications.
Comprehensive Interfaces for Every Requirement

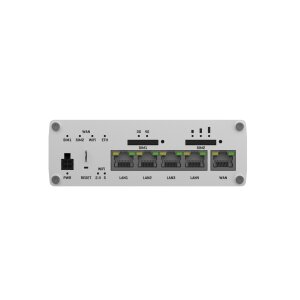

The RUTX14 leaves nothing to be desired when it comes to connectivity options. With five Gigabit Ethernet ports, it offers sufficient capacity for your wired Network. The integrated Dual-Band WiFi 5 (802.11ac Wave-2) allows you to provide up to 150 devices simultaneously with fast internet – ideal for offices, construction sites, or mobile deployment locations. But that's not all: Bluetooth LE and a USB interface further extend connectivity. Particularly noteworthy is the ability to connect older machines or sensors with serial interfaces (e.g., RS232/RS485) directly to your IoT Network via the USB interface and a USB-to-serial adapter. This allows you to modernize your systems without having to make expensive new investments.
Smart Solutions for Demanding Scenarios
This industrial 4G router was developed for the toughest conditions and offers innovative solutions that competitors often overlook. Imagine you are operating mobile video surveillance in public transport or on a construction site. The RUTX14 supports 4x4 MIMO and Carrier Aggregation (up to 3 bands) for 4G, enabling extremely high and stable upload bandwidth for multiple HD streams simultaneously. Conventional routers quickly reach their limits here. Furthermore, you can pair the RUTX14 with the Teltonika BAT120 backup power supply. This provides up to 6 hours of emergency power in case of a power outage and sends you SMS or email notifications. This intelligent power management and fail-safety is a decisive advantage for critical applications in remote areas or on a Yacht / Camper / Motorhome.
Security & Remote Management: Always in Control
In today's digital world, security is more important than ever. The Teltonika RUTX14 is equipped with a comprehensive security package that protects your data and your Teltonika 4G / 5G Routers Network. This includes various VPN Firewall Router protocols such as OpenVPN, IPsec, PPTP, L2TP, and DMVPN, as well as a robust firewall. This protects your business-critical applications from cyberattacks. Compatibility with the Teltonika RMS Remote Management System (RMS) is another highlight. It allows you to conveniently monitor, configure, and maintain all your Teltonika devices remotely. This saves you valuable time and significantly reduces IT support efforts, no matter where your routers are located.
Strengths & Notes at a Glance
- Pro: High speed and reliability thanks to 4G Cat 12 and Dual SIM with up to 600 Mbps download and 150 Mbps upload.
- Pro: Comprehensive connectivity with five Gigabit Ethernet ports, Dual-Band WiFi 5 (802.11ac Wave-2) for up to 150 clients, Bluetooth LE and USB.
- Pro: Robust security (VPN, Firewall) and easy remote management via the Teltonika RMS Remote Management System.
- Note: No integrated PoE on the Ethernet ports, which might require additional PoE Injectors / Power Supplies if needed.
- Note: No 5G support; for 5G applications, a 5G-capable model would have to be used.
Specifications & Features
| Manufacturer: | Teltonika Networks |
| Model: | RUTX14 |
| Product Type: | Industrial 4G Cat 12 Router |
| Cellular Standard: | 4G Cat 12 (4G) |
| Download Speed: | Up to 600 Mbps |
| Upload Speed: | Up to 150 Mbps |
| SIM Slots: | 2 (Dual SIM with Failover/Load Balancing) |
| WiFi Standard: | WiFi 5 (802.11ac Wave-2, Dual-Band 2.4/5 GHz) |
| WiFi Speed: | Up to 867 Mbps (5 GHz), 300 Mbps (2.4 GHz) |
| Ethernet Ports: | 5 x Gigabit Ethernet (10/100/1000 Mbps) |
| GNSS Support: | GPS, GLONASS, BeiDou, Galileo, QZSS |
| VPN Protocols: | OpenVPN, IPsec, PPTP, L2TP, DMVPN, GRE, SSTP, Stunnel |
| Remote Management: | Teltonika Remote Management System (RMS) |
| Power Supply: | 9-50 V DC (passive PoE on LAN1 port) |
| Operating Temperature: | -40 °C to +75 °C |
| Housing Material: | Robust Aluminum |
| Dimensions (WxHxD): | 115 x 32 x 95 mm |
Scope of Delivery
| 1 x Teltonika RUTX14 4G Cat 12 Router |
| 1 x Euro Power Supply |
| 2 x 4G Antennas (SMA) |
| 2 x WiFi Antennas (RP-SMA) |
| 1 x GNSS Antenna (SMA) |
| 1 x Ethernet Cable |
| 1 x QSG (Quick Start Guide) |
Frequently Asked Questions (FAQ)
What does LTE Cat 12 mean for the Teltonika RUTX14?
LTE Cat 12 (Category 12) means that the Teltonika RUTX14 can achieve download speeds of up to 600 Mbps and upload speeds of up to 150 Mbps over the mobile network. This is made possible by technologies like Carrier Aggregation, which utilize multiple frequency bands simultaneously.
Can the Teltonika RUTX14 use two SIM cards simultaneously?
Yes, the Teltonika RUTX14 has two SIM card slots. It can be configured for automatic failover (switching to the second SIM in case of a poor signal or data limit on the first) or for load balancing (simultaneous use of both connections for bandwidth aggregation) to ensure uninterrupted connectivity.
Which Wi-Fi standards does the Teltonika RUTX14 support?
The Teltonika RUTX14 supports the Wi-Fi 5 (802.11ac) Wave-2 standard in dual-band (2.4 GHz and 5 GHz) with data rates of up to 867 Mbps. It can manage up to 150 simultaneous connections.
Is the Teltonika RUTX14 suitable for industrial applications?
Yes, the RUTX14 is specifically designed as an industrial cellular router. It features a robust aluminum casing, advanced security functions (VPN, firewall), and is optimized for use in demanding environments such as industrial automation, transportation, and smart city infrastructures.
Does the Teltonika RUTX14 support GPS tracking? (Niche)
Yes, the Teltonika RUTX14 supports GNSS positioning, including GPS, GLONASS, BeiDou, Galileo, and QZSS. This makes it ideal for applications in fleet management, asset tracking, or telemetry.
Can the Teltonika RUTX14 be used as internet access for motorhomes or boats? (Niche)
Yes, due to its robust design, dual-SIM function for reliable failover, and support for 4x4 MIMO LTE antenna connections, the RUTX14 is an excellent choice for motorhomes, caravans, or boats to ensure a stable and fast internet connection on the go. The wide voltage supply (9-50V DC) is also advantageous for such mobile applications.
