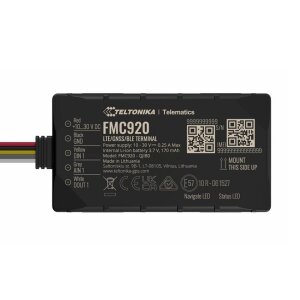

Your Vehicle, Always in View: The Teltonika FMC920
Say goodbye to old 2G trackers and embrace the future! The Teltonika FMC920 is your reliable companion in the 4G era. While Others are still struggling with outdated technology, you benefit from the stable and fast data transmission of the 4G 4G Cat 1 Network. And should your vehicle ever end up in a dead zone, the intelligent 2G fallback ensures that you never lose contact. This Teltonika 4G / 5G Routers in compact form is the perfect solution for modern vehicle tracking and security.
Invisible, Yet Unbeatably Secure

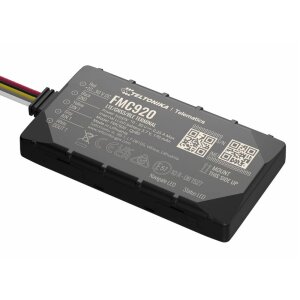

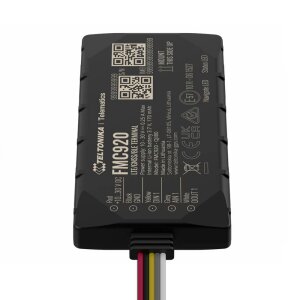

Do you want to protect your vehicle without the tracker immediately catching the eye? No problem! With its only 12 millimeters in height, the Teltonika FMC920 is extremely flat and can be easily hidden. Whether in the dashboard of your car, behind the door panels of a delivery van, or under the narrow seat of your motorcycle – this GPS Tracker disappears without a trace. The direct connection to the 10-30V on-board power supply makes it compatible with almost any vehicle type.
More Than Just Tracking: Active Protection When It Matters
Positioning is good, but active intervention is better! The FMC920 offers smart I/O interfaces that go far beyond simple tracking. For example, via the digital input, you can log the ignition status of your vehicle. The real highlight, however, is the digital output: Connect it to a car relay, and in the event of theft, you can block your vehicle's fuel pump or starter motor via SMS or server command. Together with the internal 170 mAh backup battery, which immediately sounds an alarm if the battery is disconnected, this tracker offers you maximum security and control.
Smart Features for Maximum Control
The Teltonika FMC920 is a true multi-talent. In addition to precise positioning via GPS, GLONASS, GALILEO, and BEIDOU, it offers a variety of intelligent functions. These include Eco Driving for monitoring driving behavior, reliable crash detection that informs you in the event of accidents, and towing detection that immediately sounds an alarm if your vehicle is moved without authorization. The Unplug-Detection warns you if the tracker itself is tampered with. With Bluetooth 4.0 LE, you can also integrate external sensors or beacons to collect even more data. Expand your Network of vehicle monitoring with this powerful device.
Strengths & Notes at a Glance
- Pro: Future-proof 4G 4G Cat 1 connectivity with intelligent 2G fallback.
- Pro: Extremely compact design (only 12 mm height) for inconspicuous installation.
- Pro: Active anti-theft protection through digital output control (immobilizer).
- Pro: Integrated 170 mAh backup battery for emergency alarms in case of power failure.
- Pro: Wide voltage supply (10-30V DC) compatible with motorcycles, cars, and trucks.
- Pro: Extensive special functions such as Eco Driving, crash, and towing detection.
- Note: Requires a fixed connection to the vehicle's electrical system.
- Note: A relay for the immobilizer is not included and must be purchased separately.
Specifications & Features

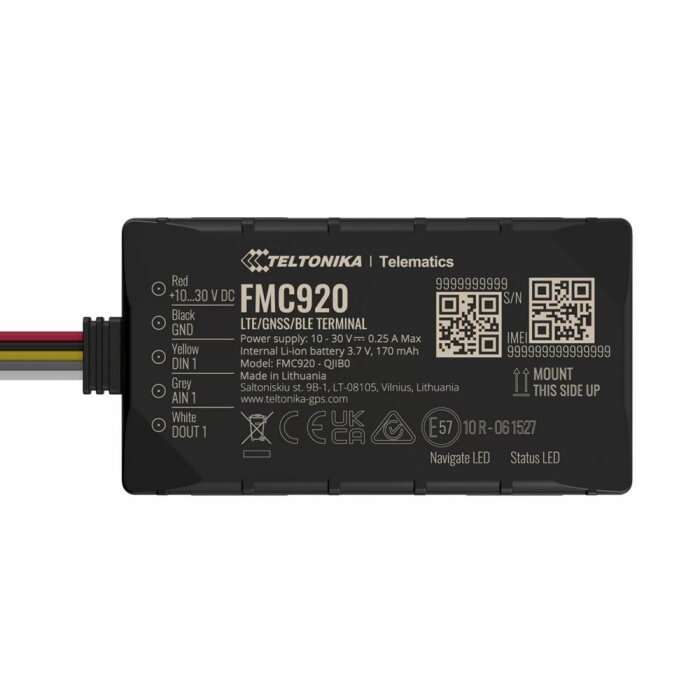

| Manufacturer: | Teltonika Telematics |
| Model: | FMC920 |
| Product Type: | 4G Vehicle GPS Tracker |
| Positioning: | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Cellular Network: | 4G 4G Cat 1 (with 2G/GSM Fallback) |
| Bluetooth Version: | 4.0 LE (Supports Sensors & Beacons) |
| Operating Voltage: | 10 - 30 V DC |
| Vehicle Compatibility: | Motorcycle, Car (12V), Truck (24V) |
| Digital Inputs: | 1x (Ignition) |
| Analog Inputs: | 1x |
| Digital Outputs: | 1x (for Immobilizer) |
| Configuration Interface: | Micro-USB 2.0 (for Setup & Firmware Updates only) |
| Backup Battery: | 170 mAh Li-Ion (0.63 Wh) |
| Special Functions: | Eco Driving, Crash Detection, Towing Detection, Unplug Detection, Immobilizer |
| Dimensions (LxWxH): | 79 x 43 x 12 mm |
| EAN: | 4779027310381 |
| Item Weight: | approx. 0.054 kg |
Scope of Delivery
| 1 x Teltonika FMC920 4G 4G Tracker |
| 1 x Hardwire Harness (Power & I/O Cable) |
| 1 x Quick Manual |
Frequently Asked Questions (FAQ)
What is the Teltonika FMC920?
The Teltonika FMC920 is a compact LTE vehicle GPS tracker specifically designed for tracking and monitoring vehicles such as cars and motorcycles. It provides precise location data and various telematics functions.
What are the advantages of the Teltonika FMC920 for vehicle tracking?
The FMC920 enables real-time tracking, theft protection through geofencing, logbook management, and monitoring of vehicle parameters. It increases the safety and efficiency of vehicle use.
Is the Teltonika FMC920 also suitable for motorcycles?
Yes, due to its compact size and robust design, the Teltonika FMC920 is ideal for installation in motorcycles to ensure reliable GPS tracking and monitoring.
How is the Teltonika FMC920 installed?
The installation of the Teltonika FMC920 is straightforward. It connects directly to the vehicle's power supply and can be discreetly mounted in the interior or under the paneling. A detailed manual is included with the device.
What functions does the Teltonika FMC920 offer beyond pure GPS tracking?
In addition to GPS tracking, the FMC920 offers functions such as an accelerometer for crash detection, geofencing, ignition status monitoring, and the ability for remote configuration via a mobile app or web platform.
Do I need a subscription to use the Teltonika FMC920?
For data transmission, the Teltonika FMC920 requires a SIM card with a data plan. The use of a tracking platform may incur additional costs, which vary depending on the provider. The device itself has no monthly basic fees.
