Maximum Discretion: The Invisible Guardian for Your Vehicle
The Teltonika FMB920 was developed for maximum inconspicuousness. Its extremely compact dimensions make it an ideal candidate if you want to hide a compact GPS Tracker in a car. Whether in the dashboard, under trim panels, or in other hard-to-reach places – the FMB920 can be installed discreetly, protecting not only your vehicle from theft but also itself from manipulation. The internal high-gain Antennas for GNSS and GSM ensure excellent reception without the need for visible external components.
Efficient Monitoring Without a Dead Battery
One of the biggest concerns when retrofitting electronics is the strain on the vehicle battery. Teltonika has masterfully solved this problem with the FMB920. Thanks to several intelligent sleep modes (Deep Sleep, Ultra Deep Sleep), extremely efficient Vehicle Tracking with Low Power Consumption is achieved. With a consumption of less than 2 mA in Ultra Deep Sleep mode, your vehicle can stand for weeks without the battery being noticeably drained. This makes the tracker perfect for seasonal vehicles, classic cars, or long-term use in fleets.
Full Control: Vehicle Tracking and Remote Immobilization
The FMB920 is more than just a tracking device. Via its digital output (DOUT), you can control an external relay and thus interrupt the ignition or fuel pump of your vehicle in an emergency. This remote immobilization function offers an invaluable advantage in theft protection. Simply send a command and immobilize the vehicle – a function particularly valued in professional fleet management and for high-value private vehicles. Such scenarios are conveniently configured via Teltonika software or SMS.
Smart Features for More Than Just Tracking
Thanks to the integrated accelerometer, the FMB920 opens up a world of smart analysis functions. Monitor your drivers' driving behavior with the Eco-Driving function, which detects harsh acceleration, abrupt braking, and sharp turns. Crash detection can automatically send a notification in the event of an accident. Features such as towing detection, jamming detection, and customizable geofencing complete the package, making this small tracker a powerful tool for safety and efficiency. As a professional GPS Tracker, it is an excellent choice.
Strengths & Notes at a Glance
- Pro: Extremely compact and discreet design for inconspicuous installation.
- Pro: High connectivity through precise GNSS, Bluetooth 4.0 LE, and versatile I/Os.
- Pro: Large internal memory secures data in case of missing Network connection.
- Pro: Very low power consumption protects the vehicle battery.
- Note: Exclusively uses the 2G Network, which leads to restrictions in countries with a switched-off 2G Network (e.g., Switzerland).
- Note: The configuration software is officially only available for Windows.
Specifications & Features
| Manufacturer: | Teltonika |
| Model: | FMB920 |
| EAN: | 4779027311753 |
| Device Class: | Client Device / Tracking Terminal |
| Module: | Teltonika TM2500 |
| Technologies: | GSM, GPRS, GNSS, Bluetooth |
| GNSS Systems: | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| GNSS Receiver: | 33 Channels |
| GNSS Sensitivity: | -165 dBM (Tracking) |
| Position Accuracy: | < 2.5 m CEP |
| Start Times (GNSS): | Hot < 1s, Warm < 25s, Cold < 35s |
| Cellular Technology: | 2G / GSM |
| 2G Frequency Bands: | Quad-Band 850 / 900 / 1800 / 1900 MHz |
| Data Transmission: | GPRS Multi-Slot Class 12 (up to 240 kbps), SMS |
| SIM Card: | Micro-SIM |
| Bluetooth: | Specification 4.0 + LE (Low Energy) |

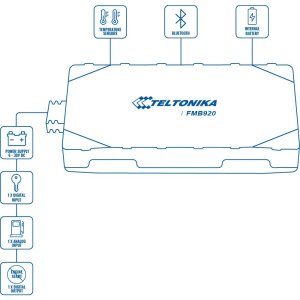

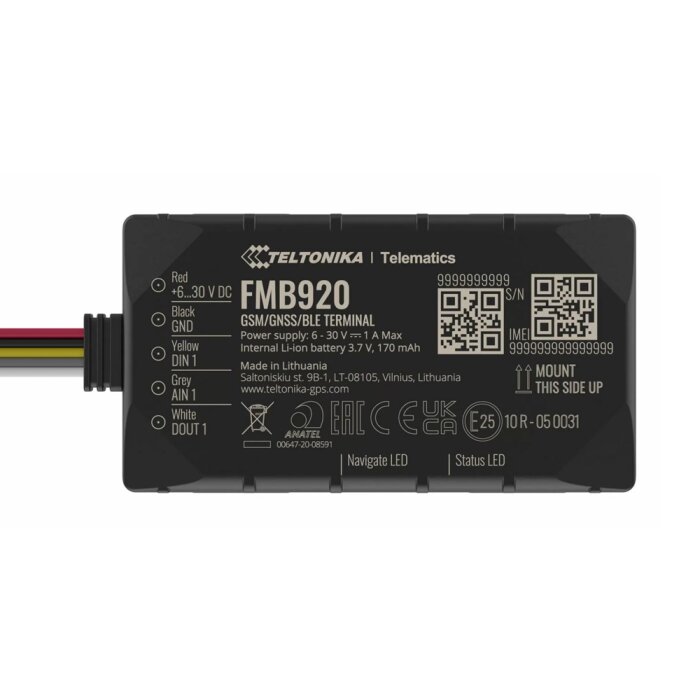

| Interfaces: | 1x Digital IN, 1x Analog IN, 1x Digital OUT, 1x Micro-USB 2.0 |
| Internal Memory: | 128 MB Flash (for approx. 422,400 data records) |
| Integrated Sensors: | Accelerometer |
| Input Voltage: | 6 - 30 V DC with Overvoltage Protection |
| Internal Battery: | 170 mAh Li-Ion (Emergency Power Supply) |
| Power Consumption: | < 2 mA in Ultra Deep Sleep Mode |
| Dimensions (L x W x H): | 79 x 43 x 12 mm |
| Weight: | 54 g |
| Protection Class: | IP54 (Dust and Splash Water Protected) |
| Operating Temperature: | -40 °C to +85 °C (without battery) |
| Certifications: | CE/RED, UKCA, E-Mark, EAC, RoHS, REACH |
Scope of Delivery
| 1 x Teltonika FMB920 GPS Tracker |
| 1 x USB Cable (Micro-USB) for Configuration |
Frequently Asked Questions (FAQ)
Is the Teltonika FMB920 waterproof?
The FMB920 has an IP54 certification. This means it is protected against dust in damaging quantities and against splashing water from all directions, but it is not completely waterproof. It should not be submerged or exposed to direct high-pressure water.
Does the FMB920 require a SIM card for operation?
Yes, an active Micro-SIM card with a data plan (GPRS) is mandatory for transmitting position data to a server. Without a SIM card, the device can record positions but cannot send them in real-time.
How long does the FMB920's internal battery last?
The internal 170 mAh battery serves as an emergency Power Supply if the external Power Supply from the vehicle is interrupted. It allows the device to continue sending data for a limited time, e.g., a theft alert, but it is not designed for continuous standalone operation.
Can I remotely shut off my vehicle's engine with the FMB920?
Yes, the digital output (DOUT) of the FMB920 can be used to control an external relay. This relay can interrupt the ignition or the fuel pump to remotely immobilize the vehicle. This should be installed by a qualified technician.
What data can the FMB920 collect besides position?
Thanks to the integrated accelerometer, the tracker can collect data on driving behavior such as harsh acceleration or abrupt braking (Eco-Driving). It can also perform crash detection and transmit status information such as 'ignition on/off' via the digital inputs.
Does the Teltonika FMB920 work worldwide?
The GNSS functionality (GPS, GLONASS, etc.) works worldwide. However, the cellular connection depends on the availability of a 2G network. Since the tracker supports quad-band GSM, it can be used in most countries with existing 2G infrastructure.
