Installation in Record Time: Your Vehicle Online in 5 Minutes

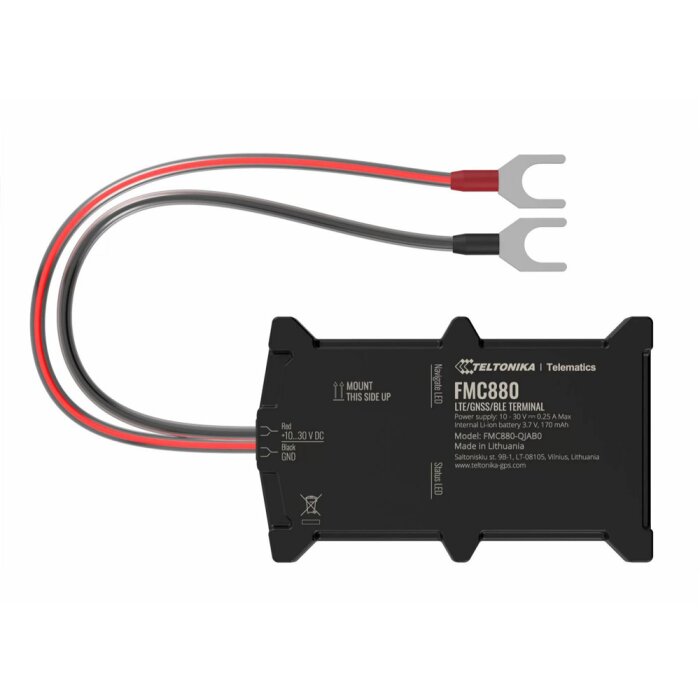

Forget complicated installation instructions and expensive workshop appointments. The Teltonika FMC880 was developed for maximum simplicity. Thanks to the clever clamp connectors, you connect the tracker directly to the poles of your vehicle battery. Plus to Plus, Minus to Minus – that's all. Within minutes, your vehicle is secured and online, ready for monitoring. Ideal for fleets, rental cars, or protecting your private car.
Precision that Sets Standards: Dual-Band GNSS for Tracking Under 1 Meter
Where standard GPS Trackers reach their limits, the FMC880 plays to its strengths. The built-in dual-band GNSS receiver uses both the L1 and L5 frequency bands. The result? A drastically reduced error rate due to atmospheric disturbances and superior position accuracy of less than one meter. Even in urban canyons or dense forests, you always know exactly where your vehicle is located. This high-precision Car GPS Tracker is the first choice for demanding applications.
Built for Emergencies: Robust, Weatherproof, and with Accident Detection
The engine compartment is a harsh environment. Heat, humidity, and dust place high demands on electronics. No problem for the FMC880. Its housing is IP65 certified, meaning it is completely dustproof and protected against jet water. But it's not just robust, it's also intelligent: The integrated accelerometer and gyroscope enable precise accident detection. In the event of an accident, the device records detailed data that can be crucial for reconstructing the sequence of events.
More Than Just Tracking: Flexible Connectivity for Extended Data
The FMC880 is more than just a tracking device; it is a platform for comprehensive vehicle monitoring. Via the integrated Bluetooth 4.0 LE interface, you can pair a variety of external sensors. Monitor the temperature in the cargo area, read vehicle data via an OBDII dongle, or integrate barcode scanners for logistics applications. In combination with reliable 4G data transmission, this `GPS Tracker` becomes the central data interface of your vehicle.
Strengths & Notes at a Glance
- Pro: Extremely fast and easy installation directly to the vehicle battery without expert knowledge.
- Pro: Outstanding tracking precision (<1m) thanks to dual-band (L1+L5) GNSS receiver.
- Pro: Robust and weatherproof IP65 housing allows direct mounting in the engine compartment.
- Pro: Flexible connectivity with 4G, 2G fallback, and Bluetooth LE for external sensors.
- Note: A Micro-SIM card with a data plan is required for operation, which incurs ongoing costs.
- Note: Integration into professional third-party platforms may require technical know-how.
Specifications & Features
| Manufacturer: | Teltonika |
| Model: | FMC880 |
| EAN: | 4779027310688 |
| Device Class: | Client / GNSS Tracker |
| GNSS Systems: | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS |
| GNSS Technology: | Dual-Band (L1 + L5) |
| GNSS Receiver Channels: | L1: 75, L5: 60 |
| GNSS Sensitivity: | Up to -165 dBM |
| GNSS Position Accuracy: | < 1 Meter CEP |
| GNSS Hot Start (TTFF): | < 1 s |
| GNSS Cold Start (TTFF): | < 35 s |
| Cellular Technology: | 4G Cat 1, 2G (GSM/GPRS) Fallback |
| 4G Frequency Bands (EU Variant): | B1, B3, B5, B7, B8, B20, B28 |
| 2G Frequency Bands: | B2, B3, B5, B8 |
| Data Rate (4G): | Max. 10 Mbps Download / 5 Mbps Upload |
| SIM Card: | 1x Micro-SIM |
| Bluetooth: | Bluetooth 4.0 + LE |
| Sensors: | Accelerometer, Gyroscope |
| Internal Memory: | 128 MB Flash |
| Connections: | Micro-USB 2.0, Clamp Connectors for Battery |
| Input Voltage: | 10 - 30 V DC (with overvoltage protection) |
| Backup Battery: | Li-Ion, 3.7 V, 170 mAh |
| Power Consumption (Ultra Deep Sleep): | approx. 1.5 - 2.8 mA @ 12V |
| Protection Class: | IP65 (dustproof, protected against jet water) |
| Operating Temperature: | -40 °C to +85 °C (without battery) |
| Dimensions: | 92.5 x 57.6 x 14 mm |
| Weight: | 63 g |
| Certifications: | CE/RED, UKCA, E-Mark, RCM, RoHS, REACH |
Scope of Delivery
| 1 x Teltonika FMC880 GPS Tracker with Connection Cables (Clamp Connectors) |
Frequently Asked Questions (FAQ)
How is the Teltonika FMC880 installed?
Installation is very simple. The device is connected directly to the positive and negative terminals of the vehicle battery using the included clamp cables. Elaborate wiring in the vehicle interior is not necessary.
Is the Teltonika FMC880 waterproof?
Yes, the tracker is IP65 certified. This means it is completely dustproof and protected against jet water from any angle, making it ideal for mounting under the hood.
Which SIM card does the FMC880 require?
The device requires a Micro-SIM card with an activated data plan. An SMS function is also required for configuration via SMS command. The SIM card's PIN protection should be deactivated.
Can the FMC880 detect accidents?
Yes. Thanks to the integrated accelerometer and gyroscope, the device has a precise accident detection function (Crash Detection) that can record detailed data about the event.
What is the advantage of dual-band GNSS in the FMC880?
Receiving signals on two frequencies (L1 and L5) significantly reduces errors due to atmospheric disturbances and improves accuracy in areas with poor reception, such as between tall buildings, leading to more reliable and precise positioning.
Can I connect external sensors to the FMC880?
Yes, various external sensors, such as temperature and humidity sensors, can be paired via the Bluetooth LE interface to monitor additional vehicle or environmental data.
