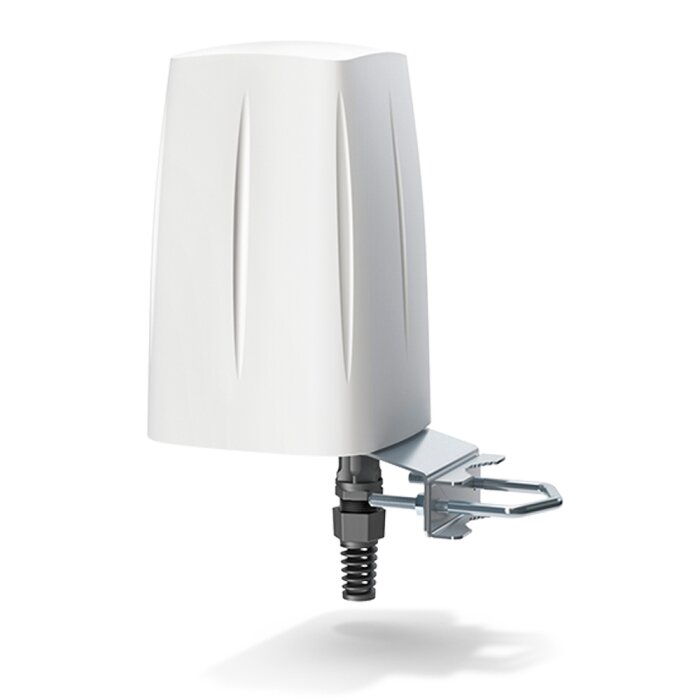

The QuSpot AX50S antenna is an integrated solution with Muti-Band 4G and 5G omnidirectional antenna, weatherproof housing for the installation of a TELTONIKA RUTX50 5G router, an integrated GPS antenna and an integrated WiFi omni antennas. Using the QuSpot antenna you can improve the performance for your 4G / 5G connection. The integrated omni antenna is connected directly to the antenna connector on the TELTONIKA RUTX50 5G router.
The QuSpot is an omnidirectional antenna. It is not necessary to align the antenna. It is perfect for mobile use or in difficult terrain. The QuSpot AX50S antenna covers all 4G and 5G frequency ranges (600MHz-4300MHz). The scope of delivery also includes integrated weatherproof WiFi omnidirectional antenns which are also directly connected to the RUTX50 with almost no loss. So you get a good coverage here as well and can supply your WiFi devices with a reliable WiFi and Internet signal.
The enclosure of the QuSpot antenna is absolutely weatherproof (IP67) and is specially designed for outdoor use. This allows you to use the QuSpor antenna even in extreme weather conditions.
Please note that the power supply of the TELTONIKA router needs to be done using PoE. Suitable PoE injectors and power supplies can be found in our webshop.Technical Data - 4G / 5G Antenna:
| Type of Antenna: | Omnidirectional Antenna |
| Frequency: | 694 - 966MHz 1710 - 2700MHz 3300 - 4300MHz |
| Gain: | 2.5dBi 4dBi 4.5dBi |
| VSWR: | max. 2.0 max. 2.0 max. 2.5 |
| Polarisation: | Vertical |
| Beamwidth: | 360° Horizontal 25° Vertical |
| Impedance: | 50 Ohm |
Technical Data - WiFi:
| Type: | WiFi Omni Antenna |
| Frequency: | 2.4GHz 5GHz |
| Gain: | 6dBi 7.5dBi |
| VSWR: | max. 1.7 max. 2.0 |
| Polarisation: | Vertical |
| Beamwidth: | 360° Horizontal 25° Vertical |
| Impedance: | 50 Ohm |
Mechanical Data:
| Material: | ABS, aluminum, PTFE |
| Appliance: | Indoor / Outdoor (IP67 Rated) |
| Temperature Range (Operating): | -40° to 75 C |
| Dimensions: | 16 x 16 x 24cm |
| Weight: | 1.5 kg |
Scope of delivery:
| 1 x QuSpot AX50S Antenna for TELTONIKA RUTX50 5G router |
| 1 x Mounting Equipment |
