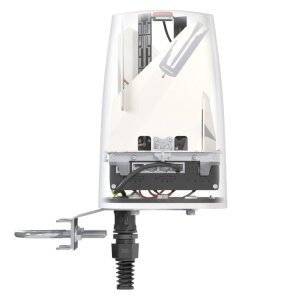

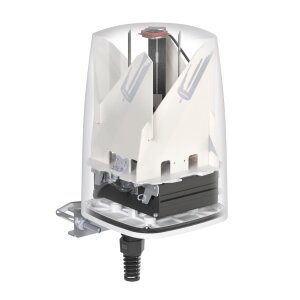

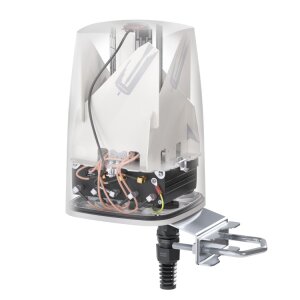

The QuSpot AC50S 5G antenna from QuWireless is a weatherproof multiband 4x4 MIMO LTE / 5G omnidirectional antenna specifically designed for the Teltonika RUTC50 5G router. By integrating the router within the antenna enclosure, signal losses typically associated with conventional coaxial cables are almost completely eliminated. This transforms the Teltonika RUTC50 into a powerful 5G outdoor router that provides optimal connection quality.
The integrated LTE / 5G omnidirectional antenna of the QuSpot AC50S significantly enhances your 5G or LTE connection and covers a wide frequency range from 617 MHz to 4.3 GHz. Additionally, the antenna enclosure is equipped with an integrated GPS antenna as well as WLAN omnidirectional antennas, which can also be connected to the RUTC50 5G router. This allows you to access the Teltonika router's WLAN network as usual, even when it is installed outdoors.
The QuSpot AC50S enclosure is weatherproof according to IP67 standards and designed for outdoor use. The Teltonika router is powered via PoE (Power over Ethernet), with a suitable PoE injector optionally available. This robust and powerful antenna is ideal for use in demanding environments where a reliable and strong 5G or LTE connection is required.
It should be noted that the Teltonika router is powered via PoE. Suitable PoE injectors and power supplies can be found in our range.Technical Data LTE / 5G Antenna:
| Antenna Type: | Omnidirectional antenna |
| Frequency Range: | 694 - 966MHz 1710 - 2700MHz 3300 - 4300MHz |
| Supported 5G Bands: | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256 |
| Supported 4G Bands: | 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106 |
| Gain: | 2.5dBi 4dBi 4.5dBi |
| VSWR: | max. 2.0 max. 2.0 max. 2.5 |
| Polarization: | Vertical |
| Beamwidth: | 360° Horizontal 35° Vertical |
| Impedance: | 50 Ohms |
Technical Data WLAN:
| Antenna Type: | WLAN Omnidirectional Antenna |
| Frequency Range: | 2.4GHz 5GHz 6GHz |
| Gain: | 6dBi 7.5dBi |
| VSWR: | max. 1.7 max. 2.0 |
| Polarization: | Vertical |
| Beamwidth: | 360° Horizontal 25° Vertical |
| Impedance: | 50 Ohms |
Mechanical Data:
| Material: | ABS, aluminum, PTFE |
| Application: | Indoor and Outdoor (IP67) |
| Operating Temperature: | -40° to 75°C |
| Dimensions: | 16 x 16 x 24 cm |
| Weight: | 1.5 kg |
Scope of Delivery:
| 1 x QuSpot AC50S All-in-One Omnidirectional Antenna for TELTONIKA RUTC50 5G Router |
| 1 x Mounting Accessories |
