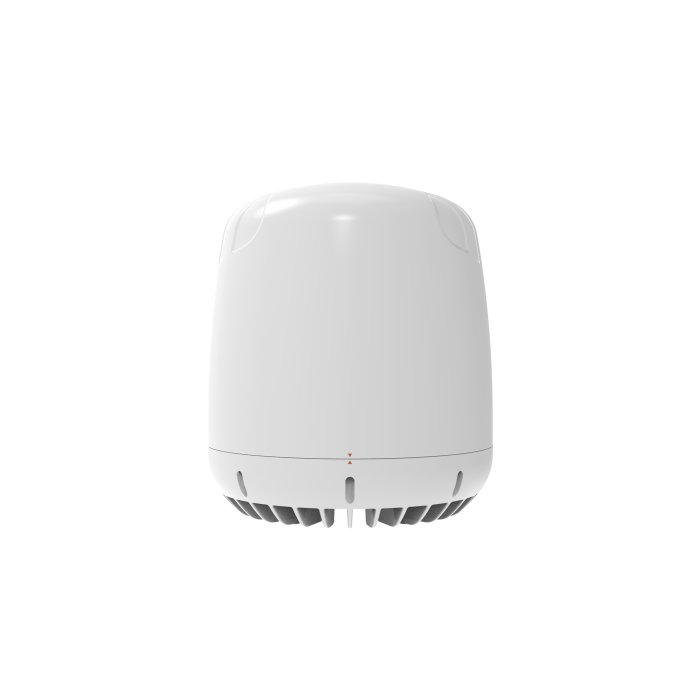

Your Gateway to Digital Freedom at Sea
Imagine navigating your superyacht or commercial vessel across the world's oceans, always perfectly connected. No dead zones, no dropped video conferences, no interrupted data streams. This is exactly what the Poynting WaveHunter makes possible. This revolutionary 5G Marine Antenna is the answer to the challenges of connectivity on the high seas. It bundles the power of multiple 4G / 5G Routers in a single, extremely robust Antenna Enclosure, creating an uninterrupted, highly available, and lightning-fast internet connection. Whether for navigation, communication with the mainland, onboard entertainment, or operational processes – the WaveHunter is your reliable anchor in the digital world, ideal for all Marine Applications, from private Yacht / Camper / Motorhome tours to long-haul freighters.
Unrivaled Performance and Robustness for Extreme Conditions
The Poynting WaveHunter sets new standards in terms of performance and resilience. Its impressive 24x24 Multi-MIMO architecture, realized through twelve cross-polarized Antennas, offers exceptionally high Antenna gain (11 dBi) and seamless 360° coverage. This means for you: maximum signal strength and reliability, even in the most remote corners. The Ultra-Broadband frequency coverage from 617 MHz to 4200 MHz ensures that you can optimally use all important 4G/4G Connectivity and 5G bands. And when it comes to robustness, the WaveHunter is unbeatable: IP69K certification guarantees maximum protection against water, dust, and salt spray. The UV-stable E-glass housing and the thermally optimized aluminum heatsink ensure reliable operation under the harshest conditions – a truly robust design for your Antennas.
The Ultimate Communication Hub for Your Fleet
The WaveHunter is far more than just an antenna; it is a complete communication hub. It offers you the unique possibility for Router Integration of up to six 4G / 5G Routers to achieve a massive increase in data throughput. In addition to mobile connectivity, it features integrated Dual-Band WiFi (4x4 MIMO) for your local Network onboard and precise GPS/GNSS Integration for navigation systems. This comprehensive connectivity makes it the ideal solution for superyachts, cruise ships, or commercial freighters that require an uninterrupted, highly available, and fast internet connection far from the coast. It is also the perfect choice for temporary communication nodes in harsh terrestrial environments such as oil platforms or remote research stations.
Artificial Magnetic Conductor (AMC): The Secret to Your Superior Connection
What makes the Poynting WaveHunter so exceptionally powerful? A crucial factor is the innovative Artificial Magnetic Conductor (AMC) Technology. This advanced technology, derived from Poynting's proven XPOL Antennas, ensures superior signal performance and significantly contributes to the exceptionally high antenna gain (11 dBi) across the most important 4G and 5G bands. You benefit from optimized radiation characteristics and more efficient energy transfer, which directly translates into a more stable and faster connection. With Artificial Magnetic Conductor (AMC) Technology, you are always one step ahead and enjoy connectivity that you won't find in any other 5G Marine Antenna.
Strengths & Notes at a Glance
- Pro: Extremely high throughput rates and reliability through 24x24 Multi-MIMO architecture and integration of up to six 4x4 MIMO routers.
- Pro: Robust design for extreme environments with IP69K certification, UV-stable E-glass, and thermally optimized aluminum heatsink.
- Pro: Comprehensive connectivity with Ultra-Broadband frequency coverage for 5G/4G (617-4200 MHz), integrated 4x4 MIMO WiFi (2.4 & 5-7.2 GHz), and precise 2x2 GPS/GNSS.
- Note: Requires additional hardware (routers), as the WaveHunter is an antenna Enclosure and does not contain routers. These must be purchased and installed separately.
- Note: High investment costs and complexity due to advanced technology and the ability to integrate multiple high-end routers, requiring technical expertise.
Specifications & Features
| Manufacturer: | Poynting Antennas |
| Product Name: | WaveHunter |
| Product Code: | A-WHUNTER-001-V4-101 |
| Antenna Type: | X-polarized, High-Performance, Multi-Directional 5G/4G Antenna Array in an Enclosure |
| Technology: | Artificial Magnetic Conductor (AMC) |
| MIMO Architecture (Cellular): | 12 cross-polarized 2x2 MIMO directional antennas (360° coverage) |
| MIMO Capability (System): | Integration of up to six 4x4 MIMO routers (24x24 Multi-MIMO) |
| Frequency Range Cellular (4G/5G): | 617 – 960 MHz & 1710 – 4200 MHz |
| Frequency Range WiFi: | 2400 – 2500 MHz & 5000 – 7200 MHz |
| Frequency Range GPS/GNSS: | 1575.42 MHz / 1600 MHz (L1, L2, L5) |
| Peak Gain Cellular (4G/5G): | 11 dBi |
| Peak Gain WiFi: | 7.5 dBi |
| Peak Gain GPS/GNSS: | 21 dBi |
| Polarization Cellular: | Vertical, Horizontal & ±45° |
| Polarization WiFi: | Linear |
| Polarization GPS/GNSS: | Circular |
| VSWR: | ≤ 2.5:1 over 90% of bands |
| Radiation Pattern: | Multi-Directional (360° coverage) |
| Ingress Protection: | IP69K (Weather-/Dust-/Waterproof) |
| Enclosure Material: | UV-stable E-glass |
| Base Material: | Aluminum heatsink |
| Operating Temperature: | -40°C to +80°C |
| Cable Type (internal): | RG141 (for 4G, WiFi & GPS) |
| Cable Length (internal): | 750 mm |
| Connector Types Cellular (internal): | 24 x SMA (M) |
| Connector Types WiFi (internal): | 4 x RP-SMA (M) |
| Connector Types GPS/GNSS (internal): | 2 x SMA (M) |
| Router Capacity: | Up to 6 routers (max. 450 x 280 x 110 mm with optional brackets) |
| Dimensions (L x W x H): | 652 mm x 652 mm x 750 mm |
| Weight (Antenna): | 52.78 kg |
| Applications: | Marine (Superyachts, commercial vessels), harsh environments, critical infrastructures |
| Certifications: | RoHS 2011/65/EU compliant, ISO 9001:2015 |
Scope of Delivery
| 1 x Poynting WaveHunter Marine Antenna (A-WHUNTER-001-V4-101) |
| 1 x Mounting Base (if applicable for V4-101) |
Frequently Asked Questions (FAQ)
What does '24x24 Multi-MIMO' mean for the Poynting WaveHunter?
'24x24 Multi-MIMO' means that your Poynting WaveHunter, as an antenna enclosure, allows the integration of up to six 4x4 MIMO routers. The internal antenna arrangement consists of 12 cross-polarized 2x2 MIMO antennas for mobile communication, which, in combination with the routers, allows you a massive increase in data throughput and connection reliability.
Is the Poynting WaveHunter truly waterproof and suitable for use at sea?
Yes, your Poynting WaveHunter is specifically designed for maritime applications and harsh environments. It features an IP69K certification, which ensures maximum protection against water ingress (even during high-pressure cleaning), dust, salt spray, and extreme temperatures.
Which frequency bands does the Poynting WaveHunter cover?
Your Poynting WaveHunter offers ultra-wideband frequency coverage for mobile communication from 617 MHz to 960 MHz and 1710 MHz to 4200 MHz, covering all important LTE and 5G bands. Additionally, it supports dual-band Wi-Fi (2.4 GHz and 5-7.2 GHz) and GPS/GNSS (L1, L2, L5 frequencies).
Can I install my own routers in the Poynting WaveHunter?
Yes, your Poynting WaveHunter is designed as an antenna enclosure that can accommodate a variety of router and Network modules. You can mount up to two routers with dimensions of 250 x 150 x 50 mm³ directly on the base, and with optional brackets, even routers up to 450 x 280 x 110 mm. Additional devices can be integrated into a custom frame.
What antenna gain does the Poynting WaveHunter offer?
Your Poynting WaveHunter achieves a peak antenna gain of up to 11 dBi for mobile communication (LTE/5G). For WLAN, it offers you a gain of up to 7.5 dBi, and for GPS/GNSS, up to 21 dBi.
What advantages does the Artificial Magnetic Conductor (AMC) technology offer in the WaveHunter?
The Artificial Magnetic Conductor (AMC) technology, derived from the Poynting XPOL-2-5G, is used in your WaveHunter to achieve superior signal performance. It contributes to the exceptional high performance and high gain of your antenna across the most important 4G/5G bands.
