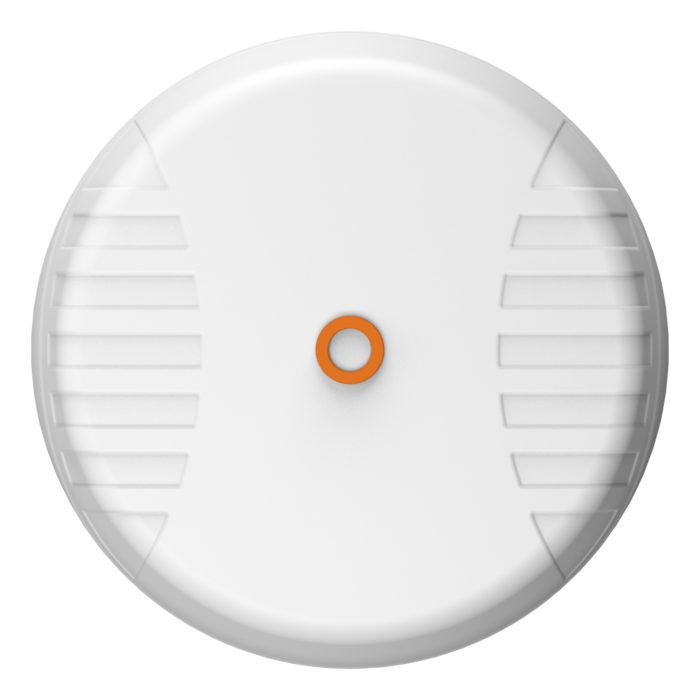

The Poynting SWIRL-4 is a cross-polarized 4x4 MIMO antenna designed for 5G and 4G reception, including WiFi 7 support. With a signal gain of 6dBi and frequency coverage from 617 to 6000 MHz, it is the perfect companion both at sea and on land. Its IP69K certification ensures resistance to harsh environments and severe weather conditions, making it indispensable in maritime applications. While primarily intended for marine use, the SWIRL-4 is also suitable for various mobility applications, making it a versatile choice for different connectivity needs.
Additionally, the SWIRL-4 can be converted into a CPE (Customer Premises Equipment) device by installing the SWIRL-BASE (sold separately). This die-cast aluminum base is specifically designed to house 5G routers. By integrating the router into the base, coaxial cables are reduced, enhancing performance by minimizing signal loss.
Applications:
- Marine Applications: Cruise ships, freighters, tankers, boats, yachts, fishing vessels, offshore platforms
- Coastal Applications: Ports, coast guard stations, waterfront promenades
- Mobile Applications: Emergency vehicles, broadcast vans, temporary networks, events, sporting events
Technical Specifications:
| Manufacturer: | Poynting |
| Model: | A-SWIRL-0004-V1-01 |
| Antenna Type: | 4x4 MIMO Omni-Directional |
| Cellular Bands: | 5G: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n51, n53, n65, n66, n67, n71, n74, n75, n76, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n102, n104, n106 / 4G: B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B74, B85, B103, B106 |
| Gain: | 6 dBi |
| Impedance: | 50 Ohm |
| Frequency Range: | 617 to 6000 MHz |
| Connector: | 9 x SMA |
| WiFi Standards: | Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Polarization: | Cross-polarized |
| Application Area: | Outdoor / IP69K Marine Grade |
| Dimensions: | Ø382 x 127 mm |
| Color: | White |
Scope of Delivery:
| 1 x Poynting SWIRL-4 Antenna incl. mounting accessories |
