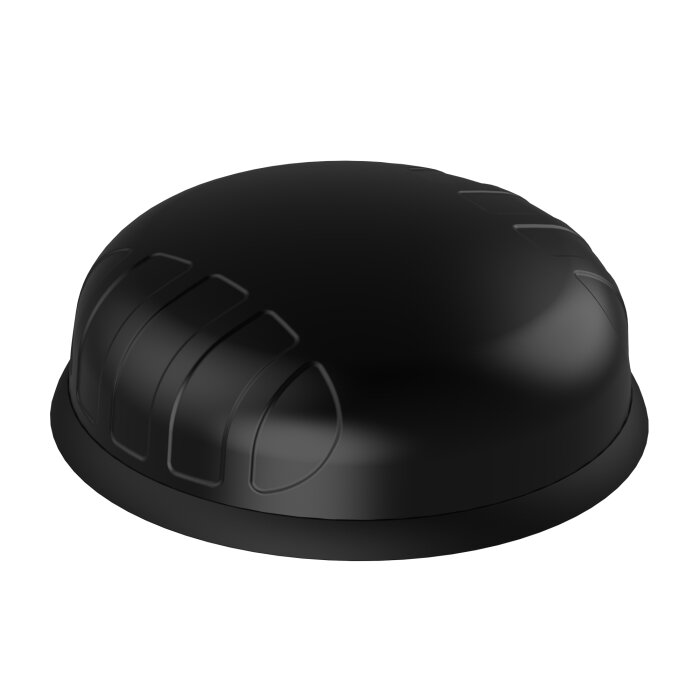

Your WiFi Upgrade that Withstands Anything
Imagine an Antenna that you can mount on the roof of your off-road vehicle and then drive through the car wash – even with a high-pressure cleaner. The Poynting PUCK-12 makes exactly that possible. Thanks to its extreme IP69K and IK10 certification, it's not only completely sealed against water and dust but also maximally shock and impact resistant. This makes it the first choice for use on vehicles, ships, in agriculture, or in public and industrial areas where reliability and durability are crucial.
Future-Proof Connection: From Wi-Fi 6E to Wi-Fi 7
Don't invest in yesterday's technology. With its broad frequency range from 2400 MHz to 7200 MHz, the PUCK-12 is already ready for the WiFi generations of the future. It supports not only current standards like Wi-Fi 5 and 6 but also the extended 6 GHz band of Wi-Fi 6E and is even designed for Wi-Fi 7 (802.11be). As a 2x2 MIMO Outdoor Antenna for Wi-Fi 6E Routers, it ensures a stable and fast connection by sending and receiving data over two separate streams simultaneously. The result: fewer interferences and noticeably better data throughput.
Mounting? Easier and More Flexible Than Ever Before
Forget buying additional Antenna Mounting Accessories. With the PUCK-12, everything you need is included. Do you want to quickly attach it to your car roof? Use the strong magnetic base. Do you have a GRP roof on your motorhome? The 3M adhesive pad ensures a rock-solid hold. For permanent installation, a tripod thread mount with two different length bolts and a bracket for pole or wall mounting are available. You can't get more flexibility than that.
Compact Design, Uncompromising Performance
Don't be fooled by the compact and inconspicuous design. Inside the PUCK-12 is highly developed Antenna technology. The omni-directional characteristic ensures 360° reception without you having to precisely align the Antenna. It works independently of a ground plane, meaning it delivers consistently high performance on metal, plastic, or GRP surfaces. It's the perfect weatherproof Omni-Directional Antenna for vehicle WiFi and maritime applications.
Strengths & Notes at a Glance
- Pro: Extremely robust (IP69K & IK10), ideal for vehicles, boats, and industry.
- Pro: Maximum mounting flexibility through 6 included options.
- Pro: Future-proof thanks to support for Wi-Fi 6E and Wi-Fi 7.
- Pro: High gain and 2x2 MIMO in a compact design.
- Note: The permanently installed 2-meter WiFi Antenna cables can be a fixed length specification in some scenarios.
- Note: For extreme reception conditions in very remote areas, larger Antennas might physically offer more performance.
Specifications & Features
| Manufacturer: | Poynting |
| Model: | PUCK-12-V2 |
| Manufacturer Article Number (MAN): | A-PUCK-0012-V2-01 |
| EAN: | 6009710928394 |
| Antenna Type: | 2-in-1 Wi-Fi Omni-Directional Antenna |
| MIMO Technology: | 2x2 MIMO |
| Frequency Bands: | 2400-2500 MHz, 5000-6000 MHz, 6000-7200 MHz |
| Gain @ 2.4 GHz: | 5.0 dBi |
| Gain @ 5.0-7.2 GHz: | 7.5 dBi |
| Supported WiFi Standards: | Wi-Fi 3 (11g), Wi-Fi 4 (11n), Wi-Fi 5 (11ac), Wi-Fi 6 (11ax), Wi-Fi 6E (11ax), Wi-Fi 7 (11be) |
| Supported Technologies: | Wi-Fi, Bluetooth |
| VSWR: | ≤ 2.5:1 over 95% of bands |
| Radiation Characteristic: | Omni-Directional |
| Polarization: | Linear Vertical |
| Impedance: | 50 Ohm (nominal) |
| Ground Plane Dependency: | Independent |
| Number of cables: | 2 |
| Cable Type: | RTK-031 with protective sleeve |
| Cable Length: | 2 Meters |
| Connectors: | 2x SMA Male |
| Included Adapters: | 2x RP-SMA (m) to SMA (f) Adapters |
| Dimensions: | Ø 99.3 mm x 36 mm |
| Weight (packaged): | 0.55 kg |
| Packaging Dimensions: | 150 x 150 x 120 mm |
| Housing Material: | UV-stable PC + ABS |
| Color: | Black |
| IP Protection Class: | IP69K |
| Impact Resistance: | IK10 |
| Wind Resistance: | Up to 220 km/h |
| Operating Temperature: | -40°C to +80°C |
| Humidity (Operating): | Up to 98% |
| Salt Spray Resistance: | MIL-STD 810F / ASTM B117 |
| Flammability Rating: | UL 94-HB |
| Certifications: | CE, RoHS |
Scope of Delivery
| 1 x Poynting PUCK-12-V2 Antenna with 2m Cable and SMA connectors |
| 1 x Magnetic Base Mount |
| 1 x Adhesive Pad Mount (3M) |
| 1 x Spigot Mount |
| 1 x Threaded Bolt 30 mm |
| 1 x Threaded Bolt 70 mm |
| 1 x Pole/Wall Mount |
| 4 x M4 Screws |
| 2 x RP-SMA (m) to SMA (f) Adapters |
Frequently Asked Questions (FAQ)
Do you need a special router for the PUCK-12 antenna?
No, you don't need a special router. Your device or hotspot only needs to have two external WiFi Antenna connections (usually SMA or RP-SMA). Thanks to the included adapters, the PUCK-12 fits both types. To utilize the full 2x2 MIMO power, simply connect both cables to your device.
What practical benefits does 2x2 MIMO technology offer you?
Imagine MIMO as a multi-lane highway for your data. Instead of just one lane, with 2x2 MIMO, you use two parallel data streams simultaneously. This not only increases your speed but also makes your Network connection significantly more stable and reliable, especially in cities or in your vehicle.
Can you mount the antenna on your metal RV or boat roof?
Yes, absolutely! The antenna is perfectly suited for this. Simply use the strong magnetic base for quick mounting on steel or iron surfaces. Since the antenna is 'Ground Plane Independent', it works just as well on metal as it does on plastic or GRP roofs, for which you would use adhesive or screw mounting.
Is the antenna also suitable for harsh marine use?
Definitely! The PUCK-12 is made for your adventure at sea. Its housing is UV-stable, salt spray resistant, and thanks to IP69K sealing, completely impervious to saltwater and the harshest weather conditions.
Does this antenna only improve your WiFi or also your 4G/5G signal?
This antenna, the PUCK-12, is a pure specialist for WiFi (2.4 GHz Components, 5 GHz Components, and WiFi 6E / WiFi 7 Antennas) and Bluetooth. It does not improve your mobile signal. If you are looking for an antenna for 4G / LTE Routers or 5G Antennas / Outdoor Antennas, check out the other models in Poynting's PUCK series.
Do I need to drill holes for mounting the antenna?
Not necessarily! You have several drill-free options. The super strong magnetic and adhesive mounting methods require no drilling at all. Drilling is only necessary if you want to route the cables invisibly through the roof or use the extremely stable threaded mounting.
