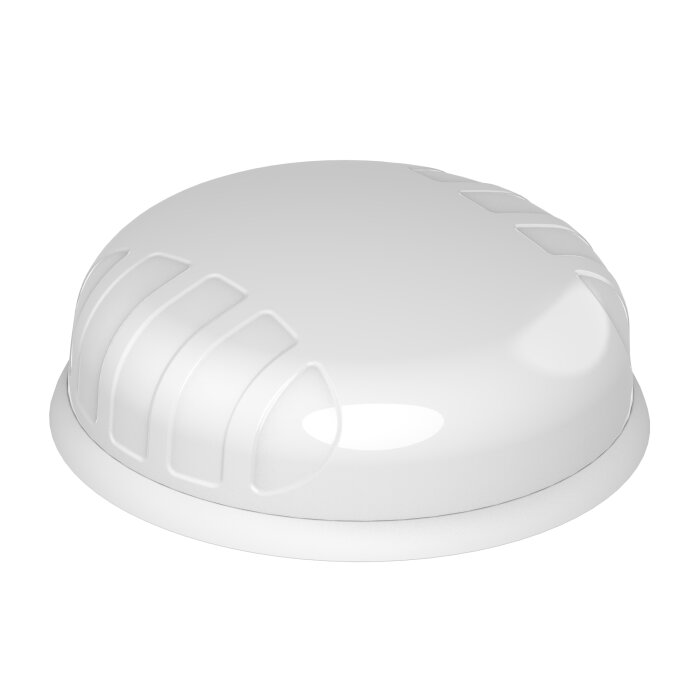

Built to Last: Your Wi-Fi Fortress Against Wind and Weather
If you're looking for an Antenna that won't let you down, the PUCK-12-V2 is the answer. Its housing is not only UV-stable but also IP69K certified. This means it can withstand even being cleaned with a high-pressure washer at close range. The IK10 impact resistance rating classifies it as vandal-proof – ideal for use in public places or on vehicles. Whether at -40°C in winter or +80°C in the desert sun, this Antenna consistently delivers reliable performance. It is the ultimate 'install and forget' solution for your WiFi Network.
Future-Proof Wi-Fi: Ready for Wi-Fi 7 and Beyond
Invest in technology that grows with your needs. The PUCK-12-V2 not only covers the classic 2.4 GHz and 5 GHz bands but extends up to the 7.2 GHz range. This makes you perfectly equipped for the latest and fastest WiFi standards like Wi-Fi 6E and the upcoming Wi-Fi 7. In combination with the powerful 2x2 MIMO technology, this Antenna ensures massively improved data throughput and a significantly more stable connection, even in challenging radio environments. Get your Network ready for the future.
Mounting Master: Adhesive, Screw, Magnetic – You Decide
Poynting has thought of everything. No matter how or where you want to mount the PUCK-12-V2, the right Accessories are already included. Use the strong magnetic base for quick and temporary mounting on metallic surfaces. Choose the 3M adhesive pad for permanent mounting on fiberglass roofs of motorhomes or boats. For the most theft-proof installation, use the spigot mount through a drilled hole. And even mounting it on a pole or wall is no problem with the included bracket. You can't get more flexibility.
Perfect Reception for Campers, Boats, and Industry
This antenna is a true all-rounder. As a rugged Wi-Fi 6E antenna for vehicles, it significantly improves the WiFi reception in your campervan or truck. At sea, it proves its strengths as a saltwater-resistant 2x2 MIMO outdoor antenna for routers, ensuring a stable connection to the harbor WiFi. But it also fully leverages its extreme durability in industrial applications, on vending machines, or in IoT installations. Wherever a reliable Wi-Fi connection is critical under harsh conditions, the PUCK-12-V2 is the professional choice.
Strengths & Notes at a Glance
- Pro: Extremely rugged and weatherproof (IP69K, IK10), ideal for outdoor use on vehicles and boats.
- Pro: Future-proof frequency coverage up to 7200 MHz, ready for Wi-Fi 6E and Wi-Fi 7.
- Pro: Maximum mounting flexibility thanks to extensive included Accessories for any surface.
- Pro: High antenna gain of up to 7.5 dBi for excellent range and signal strength.
- Note: The 2-meter long cables are permanently attached and can only be extended with separate extensions.
- Note: For the theft-proof spigot mount, a hole must be drilled in the mounting surface.
Specifications & Features
| Manufacturer: | Poynting |
| Model: | PUCK-12-V2 |
| Manufacturer Part Number (MPN): | A-PUCK-0012-V2-01-W |
| EAN: | 6009710928417 |
| Color: | White |
| Product Type: | 2x2 MIMO Wi-Fi Antenna |
| Frequency Bands: | 2400-2500 MHz, 5000-7200 MHz |
| Supported Wi-Fi Standards: | Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Max. Antenna Gain: | +5.0 dBi @ 2400-2500 MHz |
| +7.5 dBi @ 5000-7200 MHz | |
| MIMO Configuration: | 2x2 MIMO |
| VSWR: | ≤2.5:1 over 95% of the bands |
| Polarization: | Linear Vertical |
| Impedance: | 50 Ohm (nominal) |
| Radiation Pattern: | Omnidirectional |
| Ground Plane Independent: | Yes |
| Number of cables: | 2 (integrated) |
| Cable Length: | 2 meters |
| Cable Type: | RTK-031 with braided sheath |
| Cable Attenuation: | 0.91 dB/m @ 2400 MHz, 1.65 dB/m @ 5800 MHz |
| Connectors: | 2x SMA Plugs (male) |
| Included Adapters: | 2x RP-SMA (male) to SMA (female) Adapters |
| Diameter: | 99.3 mm |
| Height: | 36 mm |
| Product Weight: | approx. 0.5 kg |
| Housing Material: | UV-stable, fire-resistant (UL 94-HB) material |
| IP Protection Class: | IP68, IP69K |
| IK Impact Resistance Rating: | IK10 |
| Wind Resistance: | up to 220 km/h |
| Operating Temperature: | -40°C to +80°C |
| Operating Humidity: | Up to 98% |
| Salt Spray Resistance: | MIL-STD 810F / ASTM B117 |
Scope of Delivery
| 1 x Poynting PUCK-12-V2 Antenna with 2m cable and SMA plugs |
| 1 x Magnetic base |
| 1 x 3M adhesive pad for surface mounting |
| 1 x Threaded spigot 30mm |
| 1 x Threaded spigot 70mm |
| 1 x Pole/wall mount |
| 2 x RP-SMA (m) to SMA (f) adapters |
Frequently Asked Questions (FAQ)
Will the PUCK-12 antenna also fit my router, for example, a Fritz!Box?
Yes, absolutely! The PUCK-12 fits almost any WiFi Router with detachable Antennas. It comes with standard SMA connectors. If your router, like many Fritz!Box models, has RP-SMA connections, that's no problem – we include the right adapters directly in the package for you. So you don't need to buy anything extra.
Can I magnetically mount the antenna on my motorhome with a GRP roof?
Good question! Unfortunately, the magnetic base won't hold on a GRP or aluminum roof. But don't worry, we've thought of you: included in the delivery is a super-strong 3M adhesive pad for a rock-solid surface mount. Alternatively, you can use the spigot mount from our Mounting Systems if you want to drill a hole for the cables.
What exactly is 2x2 MIMO and does it really benefit me?
Imagine 2x2 MIMO as a two-lane data highway for your WiFi. The antenna has two transmitting and receiving units, so your router can send and receive data simultaneously. The result for you? Significantly more speed and a much more stable connection. If your router supports it, you'll love the difference!
Is the PUCK-12 antenna also suitable for use on my boat?
You bet! The PUCK-12 is made for use at sea. With its IP69K certification, it's protected not just against splashes, but even against high-pressure cleaners and submersion. It's also tested against salt spray according to military standards and is UV-stable. So you can count on it to withstand wind and weather, making it ideal for your yacht or camper.
Does this antenna only improve my WiFi range or also the speed?
It does both! Thanks to its high antenna gain, it captures a stronger signal, thus increasing your range. At the same time, the clever 2x2 MIMO technology in these WiFi Antennas ensures a more stable connection with higher data throughput. You'll notice this directly in the form of faster downloads and smooth streaming.
What's the difference between the PUCK-12 and other PUCK models?
The PUCK series is a whole family of Antennas. The PUCK-12, which you're looking at here, is the specialist purely for dual-band WiFi. Other models also pack 4G/5G cellular and GPS into the housing. So if your goal is specifically to boost your Wi-Fi signal, the PUCK-12 is the perfect choice.
