Brutal Robustness Meets High-Speed Reception
If you're looking for an Antenna that can truly handle anything, the Poynting PUCK-8-V2 is your first choice. With the highest protection class IP69K, it's not only protected against rain and dust but can even withstand cleaning with a high-pressure steam jet. The IK10 impact resistance also makes it extremely vandal-proof and shock-resistant. This makes it the perfect omnidirectional 5G/4G/WiFi combo Antenna for marine use or for tough applications on construction vehicles, trucks, and in public areas where reliability is paramount.
A Frequency Champion for Today and Tomorrow
Forget compatibility issues. The PUCK-8-V2 covers an enormous frequency spectrum. The cellular Antennas operate from 617 MHz to 6000 MHz, seamlessly supporting all 2G, 3G, 4G/4G, and 5G networks worldwide. But that's not all: the Wi-Fi Antenna extends up to 7200 MHz, making it ready for the latest standards like Wi-Fi 6E and the upcoming Wi-Fi 7. So you're not just investing in excellent reception today, but also in the future of your connectivity.
Installation? Easier and More Flexible Than Ever Before
Poynting has thought of everything with the PUCK-8-V2. You don't need to buy any additional Accessories, as everything you need for a flexible installation is already included. Simply choose the method that suits you best: the permanent threaded spigot mount (up to 60mm material thickness), the quick magnetic mount, the straightforward adhesive mount, or the versatile pole and wall mount. This weatherproof 3-in-1 antenna for outdoor 4G routers can be installed in minutes, wherever you need it.

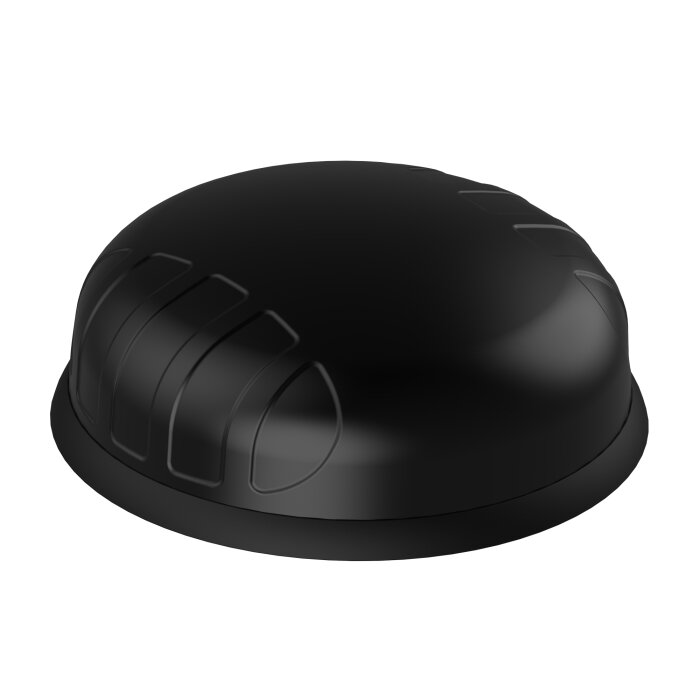

Compact, Discreet, and Still a Powerhouse
Despite the concentrated technology inside, the PUCK-8-V2 is surprisingly compact. With a diameter of less than 10 cm and a height of just 3.6 cm, it blends discreetly into any vehicle or building design. Whether on the roof of your motorhome, on an IoT gateway, or a digital advertising display – it delivers maximum performance without being conspicuous. Its UV-stable ASA housing ensures it looks as good as new even after years in the sun.
Strengths & Notes at a Glance
- Pro: Extreme robustness and durability thanks to IP69K and IK10 certification.
- Pro: Enormously wide frequency spectrum ensures compatibility with current and future cellular and Wi-Fi standards.
- Pro: Maximum mounting flexibility with four included mounting options for every scenario.
- Pro: Compact, low-profile, and discreet design, ideal for vehicles and aesthetically demanding installations.
- Note: The Wi-Fi part only supports SISO technology (1x1), which can be a limitation for high-end Wi-Fi applications requiring MIMO.
- Note: The 2-meter connection cables are permanently attached to the antenna and cannot be easily replaced if damaged.
Specifications & Features
| Manufacturer: | Poynting Antennas |
| Model: | PUCK-8-V2 |
| Manufacturer Number (HAN/MPN): | A-PUCK-0008-V2-01 |
| EAN / GTIN: | 6009710928370 |
| Antenna Type: | 3-in-1 Multiband Combo Antenna |
| Antenna Elements: | 2x 5G/4G (2x2 MIMO), 1x Wi-Fi (SISO) |
| Radiation Pattern: | Omnidirectional |
| Polarization: | Linear (Vertical) |
| Frequency Bands (Cellular): | 617-960 MHz; 1427-1517 MHz; 1710-2700 MHz; 3400-4200 MHz; 5000-6000 MHz |
| Supported Cellular Technologies: | 2G, 3G, 4G/4G, 5G, Private 5G, 5G RedCap |
| Maximum Gain (Cellular): | 6.5 dBi |
| Frequency Bands (Wi-Fi): | 2400-2500 MHz; 5000-7200 MHz |
| Supported Wi-Fi Standards: | 802.11n, 802.11ac, 802.11ax (Wi-Fi 6/6E), 802.11be (Wi-Fi 7) |
| Maximum Gain (Wi-Fi): | 4.5 dBi |
| VSWR: | < 2.5:1 over all bands |
| Feed Impedance: | 50 Ohm |
| Cable: | 3x 2 Meter RTK-031 Cable (permanently attached) |
| Connectors: | 2x SMA Plug (Male) for 5G/4G, 1x SMA Plug (Male) for Wi-Fi |
| Included Adapter: | 1x RP-SMA (Male) to SMA (Female) Adapter for Wi-Fi |
| Dimensions: | Ø 99.3 mm x 36 mm height |
| Weight (Packaged): | 0.606 kg |
| Housing Material: | UV-stable ASA (Acrylonitrile Styrene Acrylate) |
| Protection Class: | IP69K (dustproof, protection against high-pressure/steam jet cleaning) |
| Impact Resistance: | IK10 (protection against 20 Joules of impact energy) |
| Flammability Rating: | UL 94-HB, ECE-R 118.02 certified cables |
| Wind Load (Survival Rate): | ≤ 220 km/h |
| Operating Temperature: | -40°C to +80°C |
| Special Feature: | Ground plane independent |
| Country of Origin: | CN (China) |
Scope of Delivery
| 1 x Poynting PUCK-8-V2 Antenna with 3x 2m connection Cable |
| 1 x Threaded spigot mounting kit |
| 1 x Adhesive mounting kit |
| 1 x Magnetic mounting kit |
| 1 x Pole/wall mount |
| 1 x RP-SMA (Male) to SMA (Female) Adapter |
Frequently Asked Questions (FAQ)
Do you need a metallic surface for the PUCK-8 to function optimally?
No, that's one of the biggest advantages of the PUCK-8! It's designed to be 'ground plane independent'. This means for you: you get consistently high performance, whether you mount it on a metal, plastic, or fiberglass roof of your motorhome.
My router has two cellular and two Wi-Fi ports. Is the PUCK-8 compatible?
The PUCK-8 is perfect for the cellular part of your router, as it provides exactly the two connections needed for a stable 2x2 MIMO connection. For Wi-Fi, it's a partial solution: since the antenna has one Wi-Fi connection (SISO), you can use it to supply one of the two Wi-Fi ports on your router.
Can I also use the antenna on my boat or on the coast?
Yes, absolutely! The PUCK-8 is made for maritime use. Its housing is UV-stable and even tested against salt spray. Combined with its extreme IP69K water resistance, it's your ideal companion on boats and yachts.
Is the PUCK-8 future-proof and does it also work with Wi-Fi 6E or Wi-Fi 7?
Yes, definitely! The antenna's Wi-Fi frequency band extends up to 7200 MHz, completely covering the new 6 GHz bands. So you are well-equipped for the latest standards like Wi-Fi 6E and Wi-Fi 7 and future generations of routers.
My router has an RP-SMA connector for Wi-Fi. Will the PUCK-8's cable fit?
Don't worry, we've thought of that! The antenna comes standard with an SMA connector. However, we include a suitable adapter to RP-SMA for you. This way, you can easily connect your PUCK-8 to your router without any additional Accessories.
I need to drill a hole for mounting. Is that complicated?
Not at all, the installation is kept super simple. For a fixed installation with the threaded spigot, you only need a 22mm hole. To ensure a perfect fit, you can find a 1:1 drilling template for printing on the manufacturer's website. The included seals ensure that everything is completely waterproof.
