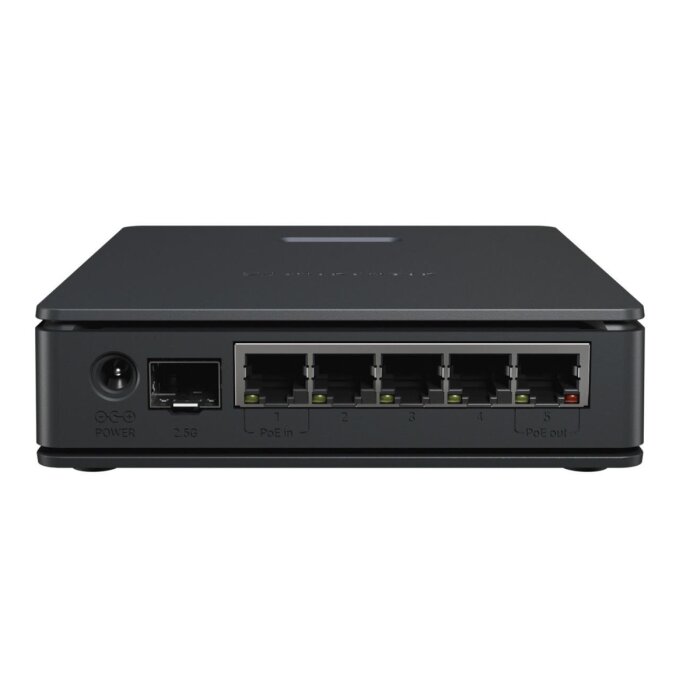

Your Upgrade for Fiber Optic: The 2.5G SFP-Port
Are you ready for the future of the internet? The MikroTik hAP ax S comes with a decisive advantage: a 2.5G SFP-Port. This allows you to connect your MikroTik Router directly to a modern fiber optic connection (FTTH) and bypass the often limiting hardware of your internet provider. Utilize the full speed of your tariff or build an ultra-fast connection to your server or NAS. In combination with the five Gigabit Ethernet Switch ports, this MikroTik Router becomes the flexible hub for your entire Network. For connection, you typically need suitable SFP / SFP\+ Modules.
Stable Wi-Fi 6 with Triple-Chain Power
While many WiFi Routers in the 5 GHz Components band only rely on two Antennas (2x2 MIMO), the hAP ax S goes a step further. With its Triple-Chain design (3x3 MIMO), it offers noticeably better signal quality and stability, especially when multiple devices are active simultaneously. The result is more reliable WiFi coverage in your home or office and higher overall performance of your wireless Network. Enjoy the benefits of Wi-Fi 6, optimized for a world full of smart devices.
RouterOS v7: The Professional Software for Your Home Network
The heart of the hAP ax S is the legendary RouterOS v7. What is otherwise only found in expensive Enterprise-hardware is fully available to you here. Set up secure VPN tunnels for your home office (including WireGuard), prioritize important data traffic with QoS, segment your Network with VLANs, or automate processes with scripts. Whether you are a curious tech enthusiast or an experienced Network administrator – RouterOS gives you the tools you need.
Pure Flexibility: PoE-In and PoE-Out for Smart Installations
Cable clutter is a thing of the past. The hAP ax S can be powered not only via the classic power adapter but also via Passive PoE-In. The real highlight, however, is the PoE-Out port on Port 5. This allows you to power another device, such as an IP Cameras or another MikroTik Access Points, directly from the MikroTik Router. This saves an additional power adapter and significantly simplifies installation in hard-to-reach places. This is a great feature for PoE Injectors / Power Supplies.
Strengths & Notes at a Glance
- Pro: The combination of five Gigabit Ethernet Switch ports and a 2.5G SFP-Port is exceptional in this price range and ideal for FTTH or NAS connections. This utilizes SFP / SFP\+ Modules.
- Pro: Superior 5 GHz Components WiFi performance through Triple-Chain (3x3 MIMO) for more stable connections and better coverage.
- Pro: Professional RouterOS v7 offers granular control over Firewall, VPN, VLANs, and QoS without additional costs.
- Pro: Flexible Power Supply via DC or PoE-In, as well as the ability to power another device via PoE-Out. This is a great feature for PoE Injectors / Power Supplies.
- Note: The Dual-Core CPU and 512 MB RAM may reach their limits with very computationally intensive tasks such as complex QoS rules.
- Note: 160 MHz channel width is not supported in the 5 GHz Components band, which limits the maximum WiFi throughput for individual clients.
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | hAP ax S |
| EAN: | 4752224009821 |
| Product Code: | E62iUGS-2axD5axT |
| Function Classification: | WiFi Router, WiFi Access Points |
| CPU: | MediaTek EN7562CT |
| CPU Architecture: | ARM 32bit |
| CPU Cores: | 2 |
| CPU Clock Frequency: | 950 MHz |
| RAM: | 512 MB DDR3 |
| Storage: | 128 MB, NAND |
| Switch-Chip Model: | EN7523 |
| MTBF (estimated): | approx. 100,000 hours at 25°C |
| WiFi 2.4 GHz Standards: | 802.11b/g/n/ax (Wi-Fi 6) |
| WiFi 2.4 GHz max. Data Rate: | 574 Mbit/s |
| WiFi 2.4 GHz MIMO: | 2x2 |
| WiFi 2.4 GHz Antenna Gain: | 5.5 dBi |
| WiFi 2.4 GHz Chipset: | MediaTek MT7916 |
| WiFi 5 GHz Standards: | 802.11a/n/ac/ax (Wi-Fi 6) |
| WiFi 5 GHz max. Data Rate: | 2400 Mbit/s |
| WiFi 5 GHz MIMO: | 3x3 |
| WiFi 5 GHz Antenna Gain: | 6.5 dBi |
| WiFi 5 GHz Chipset: | MediaTek MT7976 |
| WiFi Encryption: | WPA3, WPA2, WPA, WEP |
| Gigabit Ethernet Ports: | 5 x 10/100/1000 Mbps RJ45 |
| SFP-Port: | 1 x SFP cage (up to 2.5 Gbit/s), compatible with SFP / SFP\+ Modules |
| USB Port: | 1 x USB 2.0 Type A |
| Number of DC Inputs: | 2 (DC barrel jack, PoE-IN) |
| Voltage Range (DC Jack): | 12 - 28 V |
| PoE-In: | Passive PoE |
| Voltage Range (PoE-In): | 18 - 28 V |
| PoE-Out: | Yes, on Port Ether5 (Passive PoE) - a feature of PoE Injectors / Power Supplies |
| Max. Output Current (PoE-Out): | 0.6 A |
| Max. Total Power (PoE-Out): | 16.8 W |
| Max. Power Consumption (without peripherals): | 11 W |
| Max. Power Consumption (total): | 34 W |
| Included Power Supply: | 24 V, 1.5 A |
| Operating System: | MikroTik RouterOS v7 |
| RouterOS License Level: | 4 |
| Software Features: | Firewall, VLAN, VPN (WireGuard, IPsec, OpenVPN), QoS, CAPsMAN, Scripting |
| Dimensions: | 156 x 127 x 36 mm |
| Tested Ambient Temperature: | -40°C to 70°C |
| Cooling: | Passive |
| Certifications: | CE, FCC, IC, EAC, ROHS |
| IP Protection Class: | IP20 |
Scope of Delivery
| 1 x MikroTik hAP ax S |
| 1 x Power Supply (24 V, 1.5 A) |
| 1 x Stand |
| 1 x Wall Mounting Systems Set |
Frequently Asked Questions (FAQ)
Is the MikroTik hAP ax S suitable for beginners?
Conditionally. While basic configuration can be done via the MikroTik Mobile App or a simple web interface, this MikroTik Router only unlocks its full potential with RouterOS. It is ideal for tech-savvy home users and IT professionals; absolute beginners might be overwhelmed by the complexity of the advanced functions of this Network device.
Can I replace my ISP modem with the hAP ax S?
Yes, in many cases. Thanks to the 2.5G SFP port, this Router can be directly connected to a fiber optic connection (FTTH), often using a suitable GPON SFP Module. This allows bypassing the often less powerful hardware of the internet provider. It's a versatile alternative to standard DSL / VDSL Routers or even 4G / 5G Routers.
Does the Router support VPN connections for home office?
Yes, absolutely. RouterOS v7 offers robust support for various VPN protocols, including modern WireGuard, IPsec, and OpenVPN. The hAP ax S, a powerful MikroTik Router, can be configured as both a VPN server for remote access and a client for connecting to a corporate Network.
What is the main difference between the hAP ax S and the hAP ax²?
The hAP ax S has a 2.5G SFP port and better 3x3 MIMO WiFi in the 5 GHz Components band. In contrast, the hAP ax² does not have an SFP port but features a more powerful Quad-Core 64-bit CPU and twice the RAM (1 GB), making it better for compute-intensive tasks. Both are excellent WiFi Routers.
Can I power any device with the PoE-Out port?
No. The port only provides passive PoE in the voltage range of 18-28 V. It is not compatible with standardized 802.3af/at (48V) PoE. It is suitable for powering other MikroTik devices or devices that explicitly support passive 24V PoE. This is a specific type of PoE Injectors / Power Supplies.
What is the real WiFi speed of the hAP ax S?
Although the theoretical maximum data rate is high, in the 5 GHz Components band, under real-world conditions with a Wi-Fi 6-capable client, you can expect a TCP throughput of approximately 600 to 900 Mbit/s. This makes it a high-performance WiFi Router and a great WiFi Access Point.
