The Problem: Is Your Network Holding You Back?
Do you know the feeling when your internet connection is fast, but your Wi-Fi router just can't keep up? Lagging streams, high latency in online gaming, and constant disconnections as soon as multiple devices are active simultaneously – this is not only annoying but also robs you of valuable time and nerves. Especially in modern households with smart home devices, 4K TVs, and gaming PCs, older Wi-Fi technology quickly reaches its limits. The result: frustration instead of seamless connectivity. Your digital life deserves an infrastructure that grows with your demands and doesn't become a bottleneck.
The Solution: The Cudy WR6500H – Your Gateway to the WiFi 7 Future!
The Cudy WR6500H BE6500 WiFi 7 Router is the answer to all your Network problems. With the brand-new WiFi 7 (802.11be) technology, it sets new standards in speed and efficiency. Experience a combined Wi-Fi speed of up to 6.5 Gbps, split into an impressive 5765 Mbps on the 5 GHz band and 688 Mbps on the 2.4 GHz band. Thanks to the dedicated 2.5G WAN port, you can unleash the full potential of your multi-gigabit internet connection. This router is designed to master even the most demanding scenarios and guarantee you a seamless, lag-free online experience.
Technology That Excites: Performance and Stability
At the heart of the Cudy WR6500H beats a powerful Broadcom 2 GHz Quad-Core Processor, supported by 512 MB DDR4 RAM and 128 MB NAND Flash. This hardware configuration enables the router to manage up to 200 devices simultaneously while ensuring outstanding stability. Innovative WiFi 7 features like MLO (Multi-Link Operation), MU-MIMO, OFDMA, and 4K-QAM optimize signal transmission and significantly reduce latencies. The six fixed high-performance Antennas with Beamforming technology ensure a maximum range of up to 140 m² and focused signal strength, even through multiple walls.
Your Network, Your Control: Smart Features for Maximum Security
The Cudy WR6500H offers not only raw power but also comprehensive control and security. With the intuitive Cudy App or the web interface, you can easily manage your network, set up guest networks, and utilize effective parental controls. Thanks to support for common VPN protocols like WireGuard, OpenVPN, and IPsec, you can securely access your home network on the go or protect your online privacy. The integrated Mesh technology also allows you to seamlessly expand your Wi-Fi network as needed, optimally covering large areas. This router is not just a device, but an intelligent system that adapts to your needs and offers you maximum flexibility.
Technical Specifications
| Model: | Cudy WR6500H BE6500 |
| Wi-Fi Standard: | WiFi 7 (802.11be), backward compatible |
| Wi-Fi Bands: | Dual-Band (2.4 GHz & 5 GHz) |
| 2.4 GHz Speed: | Up to 688 Mbps (2x2 MIMO) |
| 5 GHz Speed: | Up to 5765 Mbps (4x4 MIMO) |
| Total Wi-Fi Speed: | Up to 6.5 Gbps (6500 Mbps) |
| Processor: | Broadcom 2 GHz Quad-Core (ARM Cortex-A7) |
| RAM: | 512 MB DDR4 |
| Flash Memory: | 128 MB NAND |
| WAN Ports: | 1x 2.5 Gigabit Ethernet (RJ45) |
| LAN Ports: | 4x Gigabit Ethernet (RJ45) |
| Antennas: | 6x fixed high-performance Antennas |
| Wi-Fi Features: | MLO, MU-MIMO, OFDMA, Puncturing, 4K-QAM, Beamforming, BSS Color |
| Max. Connected Devices: | Up to 200 |
| Wi-Fi Coverage: | Up to 140 m² (1,500 sq. ft) |
| Security: | WPA/WPA2/WPA3, Firewall, Parental Control |
| VPN Support: | Server & Client (WireGuard, OpenVPN, IPsec, L2TP, PPTP, Zerotier) |
| Management: | Cudy App, Web Interface, Cloud Control |
| Operating Modes: | Router, Access Point, Range Extender |
| Dimensions (WxDxH): | 253 x 152.5 x 48.2 mm |
Scope of Delivery

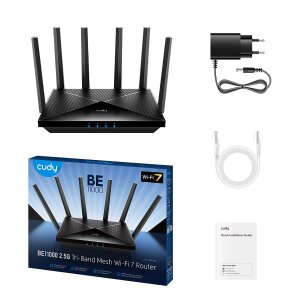

| 1 x Cudy WR6500H WiFi 7 Router |
| 1 x Power Adapter (12V 1.5A) |
| 1 x Ethernet Cable |
| 1 x Installation Guide |
Frequently Asked Questions (FAQ)
What is the main advantage of WiFi 7 over WiFi 6/6E?
WiFi 7 (802.11be) offers significant improvements in speed, efficiency, and latency. Key features include Multi-Link Operation (MLO), higher modulation rates like 4K-QAM, and enhanced spectrum utilization through puncturing and Multi-RU, leading to significantly better performance with many simultaneously connected devices.
Does the Cudy WR6500H support a 6 GHz band?
No, the Cudy WR6500H is a dual-band router that supports 2.4 GHz and 5 GHz frequencies. While it offers WiFi 7 technology, it omits the 6 GHz band, making it a more cost-effective option that still delivers excellent performance.
Can I expand the Cudy WR6500H as a Mesh system?
Yes, the Cudy WR6500H is Mesh-compatible and can serve as the base for a Mesh system. You can add other Cudy Mesh-enabled devices to create seamless and extensive Wi-Fi coverage in your home or office.
Which VPN protocols are supported by the Cudy WR6500H?
The Cudy WR6500H supports a variety of common VPN protocols as both a server and a client, including WireGuard, OpenVPN, IPsec, L2TP, PPTP, and Zerotier. This provides you with flexible and secure connection options.
How many devices can the Cudy WR6500H manage simultaneously?
The Cudy WR6500H is designed to stably connect and manage up to 200 devices simultaneously. Thanks to its powerful quad-core processor and WiFi 7 optimizations, performance remains excellent even with a high number of devices.
