Maximum 5G Performance without Signal Loss

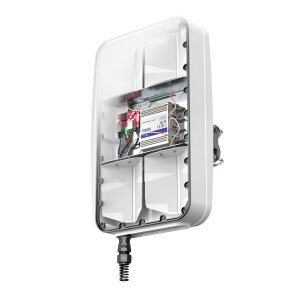

Every centimeter of Antenna Cable costs you valuable signal strength. The QuMax A500MO solves this problem in the most elegant way: it is not just an Antenna, but a complete Outdoor Enclosure into which you directly install your Teltonika TRB500 Gateway. The connection between the Gateway and the powerful 4x4 MIMO Antenna is only a few millimeters long. The result: Virtually zero attenuation, maximum transmission rates, and a noticeably more stable 5G connection that you would never achieve with external Cabling solutions.
One Cable for Everything: Ingenious Installation with Passive PoE
Forget complex cable clutter. With the A500MO, only a single standard Ethernet Cable leads to the Enclosure. This cable carries both the Gigabit data connection and the Power Supply for your TRB500. This is made possible by the cleverly integrated passive PoE Splitter. This not only drastically reduces installation effort but also minimizes potential sources of error. Simply connect to a suitable passive 24V PoE Injector and get started.
Built for Extremes: Your IP67 Antenna for Every Adventure
Whether on the roof of your motorhome, on the mast of your boat, or on an exposed house wall – the QuMax A500MO is designed for the toughest conditions. The IP67 protection class guarantees that neither dust nor heavy rain or temporary submersion can harm the electronics. The high-quality material mix of ABS, aluminum, and fiberglass withstands extreme temperatures from -40 °C to +75 °C, making this solution one of the most reliable Outdoor Antennas on the market.
Strengths & Notes at a Glance
- Pro: Maximum signal integrity by eliminating Antenna Cables and avoiding attenuation losses.
- Pro: Extremely simple installation with only one Ethernet Cable for data and power (passive PoE).
- Pro: Extremely robust and weatherproof IP67 Enclosure, ideal for mobile and demanding environments.
- Pro: No alignment effort thanks to 360° omnidirectional characteristic, perfect for Vehicles - 4G, 5G, WiFi and Boats.
- Note: Absolutely requires a passive PoE Injector (max. 24V) and is not compatible with standard 802.3af/at PoE Switches.
- Note: Supports the 5G-band n77 only up to 3.8 GHz and does not support 4G band 32 at all, which can limit performance in some networks.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuMax A500MO |
| Manufacturer Part Number (MPN): | A500MO |
| EAN: | 5907772035825 |
| Product Type: | All-in-One Antenna Enclosure (Accessory) |
| Compatibility: | Exclusive for Teltonika TRB500 5G Gateway |

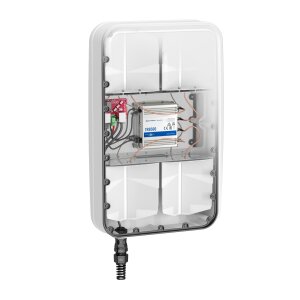

| Antenna Type 5G/4G: | 4x4 MIMO Omnidirectional Antenna |
| Frequency Range 1: | 617 - 960 MHz |
| Antenna Gain (617-960 MHz): | 3 dBi |
| Frequency Range 2: | 1700 - 2700 MHz |
| Antenna Gain (1700-2700 MHz): | 3.5 dBi |
| Frequency Range 3: | 3300 - 3800 MHz |
| Antenna Gain (3300-3800 MHz): | 4 dBi |
| Supported Technologies: | 5G, 4G |
| Polarization: | Vertical |
| Horizontal Beamwidth: | 360° |
| Vertical Beamwidth: | 35° (±5°) |
| Impedance: | 50 Ω |
| VSWR: | <1.80 (maximum <2.00) |
| Protection Class: | IP67 |
| Materials: | ABS Plastic, Aluminum, Fiberglass, PTFE |
| Dimensions (H x W x D): | 486.0 mm x 292.2 mm x 105.6 mm |
| Weight: | 2.5 kg |
| Color: | White |
| External Connector: | 1x RJ45 (waterproof) |
| Mounting: | Pole or Wall Mounting (Kit included) |
| Operating Temperature: | -40 °C to +75 °C |
| Humidity: | 10% to 90% (non-condensing) |
| PoE Support: | Yes, via included passive PoE Splitter |
| PoE Requirement: | Passive 24V (or lower) power source |
| PoE Compatibility Note: | Not compatible with 802.3af/at (active PoE) |
Scope of Delivery
| 1 x QuWireless QuMax Omni A500MO (All-in-One Antenna Enclosure) |
| 1 x Passive PoE Splitter |
| 1 x Mounting Kit |
Frequently Asked Questions (FAQ)
Is the Teltonika TRB500 Gateway included?
No, the Teltonika TRB500 Gateway is not included with the QuMax A500MO Antenna. The antenna provides a dedicated compartment where your separately purchased gateway can be installed, optimizing your 5G Network setup.
Can I operate the antenna with any PoE Switch?
No, this is a critical point. The A500MO absolutely requires passive PoE Power Supply with 24 volts or less. It is not compatible with standard PoE Switches (802.3af/at). A suitable passive PoE Injector must be used.
Do I need to align the antenna with a transmission mast?
No, as an omni-directional antenna, it receives signals from all horizontal directions (360°). Precise alignment is not necessary, making it ideal for mobile applications on vehicles or boats, enhancing your 4G / 5G Routers connectivity.
What is the advantage of integrating the router directly into the antenna?
The main advantage is the minimization of signal loss. Since no long Antenna Cables are needed between the router and the antenna, maximum signal quality is maintained. Additionally, the router is optimally protected within the weatherproof IP67 enclosure, a common feature in robust Mounting Systems.
Is the antenna suitable for use on a motorhome or boat?
Yes, absolutely. The robust, weatherproof IP67 construction and omni-directional characteristic make it perfect for mobile applications where a stable 5G/4G connection is needed under changing conditions, ideal for Yacht / Camper / Motorhome setups.
Does the antenna support all 5G frequencies?
It supports a very wide spectrum of 4G and 5G frequencies from 617 MHz to 3.8 GHz. However, it is important to note that the 5G band n77 is only supported up to 3800 MHz, and 4G band 32 is not supported at all. This makes it a versatile 5G Antennas / Outdoor Antennas solution.
