Your Network, Your Rules: Power with MikroTik RouterOS
Dive into the world of professional Network management possibilities with the MikroTik hAP ac lite TC. Thanks to the powerful MikroTik RouterOS (License Level 4), you have full control over your home Network or small office router. Configure detailed Firewall Router rules, set up VPN connections, or optimize your bandwidth management – everything is possible. This system goes far beyond what you know from conventional routers and offers you the flexibility to adapt your network precisely to your needs. Whether you are an experienced network technician or simply want to get more out of your network, RouterOS is your tool for maximum performance and security.
Dual-Band WiFi & Smart Power Supply: Your Flexible Network Upgrade
Experience seamless connectivity with the Dual-Band Access Point. The hAP ac lite TC operates simultaneously on 2.4 GHz (Wi-Fi 4, 802.11b/g/n) and 5 GHz (Wi-Fi 5, 802.11a/n/ac), offering you a combined AC750 WiFi speed. This means: older devices and applications requiring long range use the 2.4 GHz band, while data-intensive tasks like HD streaming or online gaming benefit from the faster 5 GHz band. But that's not all: The integrated PoE function with Passive PoE Output on port 5 is a real highlight. You can use it to power other small PoE-enabled devices, such as IP Cameras or another WiFi Access Point, directly via the network cable. This saves you additional power outlets and significantly simplifies installation.
Compact, Versatile, Fail-Safe: Your Router for Every Situation

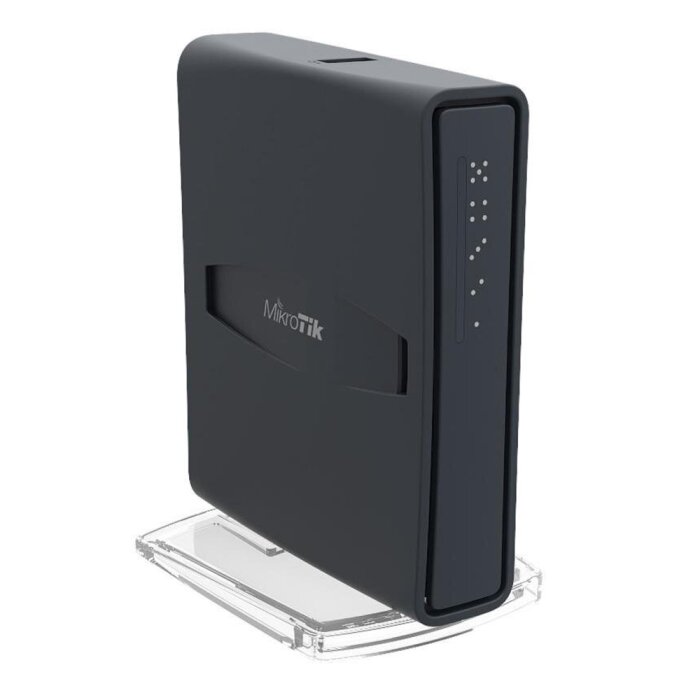

The MikroTik hAP ac lite TC impresses not only with its inner values but also with its thoughtful design. The compact Tower Case (TC stands for Tower Case) allows flexible placement – whether elegantly on the desk, discreetly on a shelf, or space-savingly wall-mounted (wall mounting kit is included). But flexibility goes even further: The integrated USB port is a real lifesaver. Simply connect a USB 3G/4G Modem Support and use mobile broadband as a primary or fail-safe backup connection. This way, you always stay online, even if your DSL or cable connection fails. Perfect for small offices, home offices, or as a reliable WiFi Router for on the go.
More Than Just a Router: Your Learning and Experimentation Field
For anyone who wants to delve deeper into the world of network technology, the MikroTik hAP ac lite TC is an excellent and cost-effective platform. With the full functionality of RouterOS (License Level 4), you can learn and test complex routing protocols, VLANs, VPNs, and advanced firewall rules in a controlled environment. It is the ideal device for aspiring network technicians, students, or hobbyists who want to gain practical experience with professional network hardware. Take the Opportunity to expand your knowledge and develop a deep understanding of how modern networks work – all with a single, versatile device.
Strengths & Notes at a Glance
- Pro: Versatile RouterOS: Offers an extremely powerful and feature-rich network configuration that goes far beyond the capabilities of typical home routers, including extensive routing, firewall, and VPN options for your network management.
- Pro: Dual-Band WiFi with PoE-Out: Simultaneously supports 2.4 GHz (Wi-Fi 4) and 5 GHz (Wi-Fi 5) for flexible device connectivity and features a passive PoE Output on port 5 for powering other small devices like IP Cameras.
- Pro: Flexible Deployment Options: The universal Tower Case allows for horizontal (desktop) or vertical (tower) positioning and wall mounting, facilitating integration into various environments. The USB port for 3G/4G Modem Support offers additional connectivity options.
- Note: 10/100 Mbit/s Ethernet Ports: All five Ethernet ports are limited to 100 Mbit/s, which can be a bottleneck for faster internet connections (above 100 Mbit/s) or internal network traffic.
- Note: Complexity of RouterOS for Beginners: The extensive configuration options of RouterOS require a certain technical understanding and learning curve, which can be a challenge for inexperienced home users.
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | hAP ac lite TC (RB952Ui-5ac2nD-TC) |
| Architecture: | MIPSBE |
| CPU: | QCA9531 |
| CPU Cores: | 1 |
| CPU Nominal Frequency: | 650 MHz |
| RAM: | 64 MB |
| Storage Size: | 16 MB |
| Operating System: | RouterOS |
| RouterOS License Level: | 4 |
| Ethernet Ports: | 5x 10/100 Mbit/s (Auto MDI/X) |
| WiFi Standards 2.4 GHz: | 802.11b/g/n (Wi-Fi 4) |
| WiFi Max. Data Rate 2.4 GHz: | 300 Mbit/s |
| Antenna Gain 2.4 GHz: | 1.5 dBi |
| WiFi Standards 5 GHz: | 802.11a/n/ac (Wi-Fi 5) |
| WiFi Max. Data Rate 5 GHz: | 433 Mbit/s |
| Antenna Gain 5 GHz: | 2 dBi |
| USB Ports: | 1x USB Type A (for 3G/4G Modem or Storage) |
| PoE-IN: | Passive PoE (10-28 V DC) |
| PoE-OUT: | Yes, on Port 5 (Passive PoE, max. 500mA / 12W) |
| Max. Power Consumption: | 20 W (8 W without connected devices) |
| Dimensions: | 34 x 119 x 98 mm |
| Tested Ambient Temperature: | -30°C to 70°C |
| Mounting: | Desktop, Tower (vertical), Wall Mount (Kit included) |
Scope of Delivery
| 1 x MikroTik hAP ac Lite TC (RB952Ui-5ac2nD-TC) |
| 1 x 24V 1.2A Power Adapter |
| 1 x K-47 Wall Mounting Kit |
Frequently Asked Questions (FAQ)
What is the difference between MikroTik hAP ac lite and hAP ac lite TC?
The main difference lies in the housing design: The 'TC' version (Tower Case) is designed for vertical placement (tower form) or wall mounting and often comes with a wall mounting kit, while the standard 'hAP ac lite' has a flatter desktop form. The internal specifications are largely identical, so you won't notice any difference in performance.
Can I use a 3G/4G USB modem with the MikroTik hAP ac lite TC?
Yes, your MikroTik hAP ac lite TC has a USB port (Type A) that supports connecting a 3G/4G USB modem. This allows you to use mobile communication as a primary or redundant internet connection.
Does the MikroTik hAP ac lite TC support PoE-Out and what can I use it for?
Yes, your hAP ac lite TC supports passive PoE-Out on its fifth Ethernet port. This means you can power other PoE-enabled devices (e.g., an IP camera, another access point, or a VoIP phone) with the same voltage supplied to the router, up to a maximum load of 500mA.
Which Wi-Fi standards does the MikroTik hAP ac lite TC support?
Your router supports dual-band Wi-Fi: on 2.4 GHz, it supports 802.11b/g/n (Wi-Fi 4) standards with a maximum data rate of 300 Mbit/s, and on 5 GHz, it supports 802.11a/n/ac (Wi-Fi 5) standards with a maximum data rate of 433 Mbit/s. The combined Wi-Fi speed is often referred to as AC750, so you can better assess the performance.
How is the MikroTik hAP ac lite TC powered?
Your device can be powered in two ways: via the DC barrel jack (10-28 V DC) or via passive PoE-In on the first Ethernet port (10-28 V DC). A 24V Power Supply is included in the scope of delivery, so you can start immediately.
Is the MikroTik hAP ac lite TC suitable for Gigabit internet connections?
No, your MikroTik hAP ac lite TC is not suitable for Gigabit internet connections due to its 10/100 Mbit/s Ethernet ports. The maximum wired throughput is limited to 100 Mbit/s, which you should consider given your internet speed.
Homepage: http://www.mikrotik.com/
