Interline SECTOR MIMO HV (IS-G1313-F2425-HV-M) 2sector antenna is designed for the 2.4 GHz ISM frequency band and supports all common standards (IEEE 802.11 b/g/n). Its a sector antenna for base stations developed with MIMO technology for use with radio equipment operating in the 802.11n standard. The sector antenna has two N female connectors, is relatively light and compact allowing you to save space on the mast.
Interline SECTOR series are the professional antennas designed for the construction of the base stations with large capacities. Antennas are capable of tilting, and thus can be used in the sector of radio cells, with a strong, focused signal. In the urban poor, high gain and beam allows coverage of large areas and providing users with a good quality signal at a distance of many miles. High quality housing allows operation in harsh weather conditions while maintaining the highest performance.

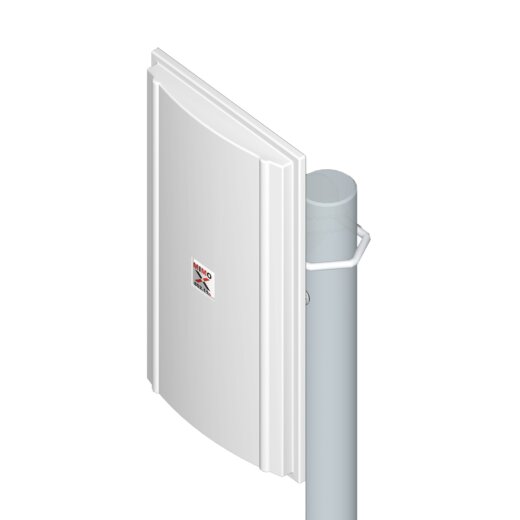

The Interline SECTOR MIMO HV is designed for mast/pole or wall handle installation. A mounting kit (angle bracket and u-clamp for 38-51mm diameter handles) is included. Suitable connection cables are available in our webshop.
Technical Data:
| Manufacturer: | Interline |
| Model: | SECTOR MIMO HV (IS-G1313-F2425-HV-M) |
| Type of Antenna: | Sector Antenna |
| Gain: | 13dBi |
| Impedance: | 50 Ohm |
| Frequency: | 2400 - 2500 MHz (IEEE 802.11 b/g/n) |
| VSWR: | max. 1.50 |
| Polarisation: | Dual Pol / HV (Linear) |
| Beam width: | 60° Horizontal 60° Vertical |
| FBR (Front/Back Ratio): | >30dB |
| Port to Port Isolation): | >37dB |
| Connector: | 2 x N female |
| Appliance: | In- and Outdoor (IP64 rating) |
| Max. wind load: | 88N (@170km/h) |
| DC-Ground: | Yes |
| Dimensions: | 34cm x 19.4cm x 2.5cm |
| Weight: | 840g |
| Color: | White |
Scope of delivery
| 1 x Interline IS-G1313-F2425-HV-M Sector Antenna |
| 1 x Mounting kit with angle bracket and u-clamp for 38-51mm handles |
