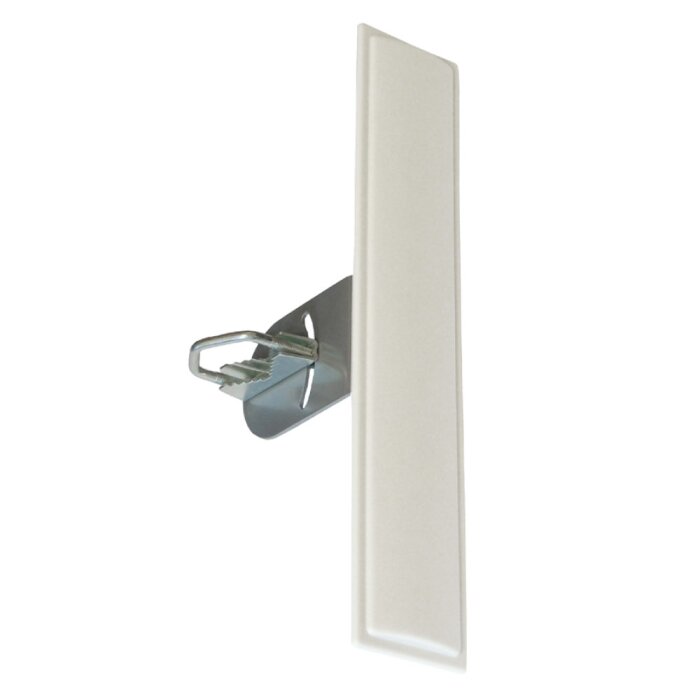

Interline SECTOR H60 WiFi sector antenna is designed for the 2.4GHz frequency band and supports all established WiFi standards (IEEE 802.11 a/n). It has a gain of 14dBi, horizontal polarisation (linear) and a beamwidth of 80°.
Interline SECTOR series are professional antennas designed for the construction of a WiFi base stations with large capacities. The antennas are capable of tilting, and thus can be used in the sector of radio cells, with a strong, focused signal. In the urban poor, high gain and beam allows coverage of large areas and providing users with a good quality signal at a distance of many miles. High quality housing allows operation in harsh weather conditions while maintaining the highest performance.
The enclosure of the Interline SECTOR H60 WiFi sector antenna is made of solid plastic and stainless steel. The robust, light weight and UV resistant construction is weatherproof (IP64 rating). Due to this, the antenna can be used for in- and outdoor appliances.
The antenna is designed for mast/pole or wall handle installation (see mounting hardware). A mounting kit (angle bracket and u-clamp for 38-51mm diameter handles) is included.
The Interline antenna has a N female connector. Suitable connection cables are available at our webshop.
Technical Data:
| Manufacturer: | Interline |
| Model: | SECTOR H60 (IS-G14-F2425-A60-H) |
| Type of Antenna: | Sector Antenna |
| Gain: | 14Bi |
| Impedance: | 50 Ohm |
| Frequency: | 2400-2500 MHz (IEEE 802.11 a/n) |
| VSWR: | 2.0:1 |
| Polarisation: | Horizontal (Linear) |
| Beam width: | 60° Horizontal 6° Vertical |
| FBR (Front/Back Ratio): | min. 24dB |
| XPD (Cross Polarization Discrimination): | min. 27dB |
| Connector: | N female |
| Appliance: | In- and Outdoor (IP64 rating) |
| Max. wind load: | 47N (@170km/h) |
| DC-Ground: | Yes |
| Connector: | N female< |
| Dimensions: | 8.3cm x 42.7m x 1.5cm< |
| Weight: | 580g |
| Color: | White |
Scope of delivery
| 1 x Interline SECTOR H60 - 2.4 GHz, 14dBi WiFi Sector Antenna |
| 1 x Mounting kit with angle bracket and u-clamp for 38-51mm handles |
