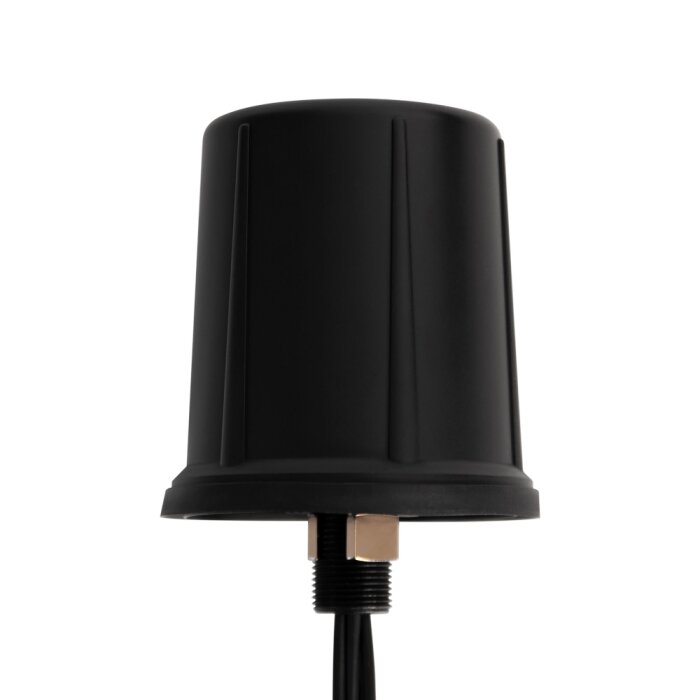

The multi-antenna combines 5 different, powerful antennas in one compact radome. Two of the integrated antenna modules are designed for the 3G / 4G data connection covering the frequency bands 698-960MHz and 1710-2690MHz. Another two antenna modules are responsible for the WiFi frequency bands 2.4 GHz and 5 GHz. The fifth antenna module is an active GPS / GLONASS module.
Enclosure
The enclosure of the antenna is made of robust, weatherproof and durable plastic. The multiband antenna can be used at temperatures from -30° to + 85°. The antenna can thus work even under the most extreme weather conditions.
Installation
The antenna has a 2.5cm long plastic thread with lock nut andd is suitable for ceiling mounting or fixed installation on devices / machines etc. A rubber lip on the edge of the enclosure provides additional protection against the ingress of moisture.
Application Areas
- Private Vehicles, Campers, Caravans, Motorhomes
- Public Vehicles, Trucks, Tractors, Industrial Vehicles
- Installations on ceilings, equipment cabinets or machines
- M2M (Machine to Machine) and other IoT (Internet of Things) applications
Connector / Cable
- 2 x 1.5m RG-174 cable - 4G with SMA plug
- 2 x 1.5m RG-174 cable - WiFi with RP-SMA plug
- 1 x 1.5m RG-174 cable - GPS / GLONASS with SMA plug
Technical Data:
| Manufacturer / Model: |
JARFT / GPM-35-2-GWN |
| Antenna Type: |
Omnidirectional Antenna |
| Cable / Connection: |
2 x 1.5m cable / SMA male (4G)
2 x 1.5m cable / RP-SMA male (WiFi)
1 x 1.5m cable / SMA male (GPS) |
| Appliance: |
In- and Outdoor |
| IP-Rating: |
IP 65 (exclude cable outlet) |
| Temperature Range: |
-30° to 85° C |
| Humidity: |
up to 95% |
| Dimensions: |
8.0cm (D) x 8.2cm (H) |
| Color: |
Black |
GPS / GLONASS:
| Frequency Range: |
1575.42 +- 1.023 MHz |
| Gain: |
max. 29dB |
| VSWR: |
max. 2.0 |
| Polarization: |
R.H.C.P. |
| Impedance |
50 Ohm |
| Supply Voltage: |
2.3 - 5.5 V |
| Power Consumption: |
2.5V : 6.6mA Typical
3V : 8.6mA Typical
4V : 12.6mA Typical
5V : 16.6mA Typical |
WiFi:
| Frequency: |
2.4 GHz & 5 GHz |
| Gain: |
2-3dBi |
| VSWR: |
max. 1.7 |
| Polarization: |
Vertical (Linear) |
| Impedance: |
50 Ohm |
4G:
| Frequency: |
800 / 1800 / 2600 MHz |
| Gain: |
1-4dBi |
| VSWR: |
max. 2.3 |
| Polarization: |
Vertical (Linear) |
| Impedance: |
50 Ohm |
Scope of delivery:
| 1 x 5in1 4G / WiFi / GPS / GLONASS Antenna, 1.5m cable, black |
