JARFT 2.4 / 5GHz WiFi Omni Antenna - 3/5dBi, IP65, RP-SMA, M2M

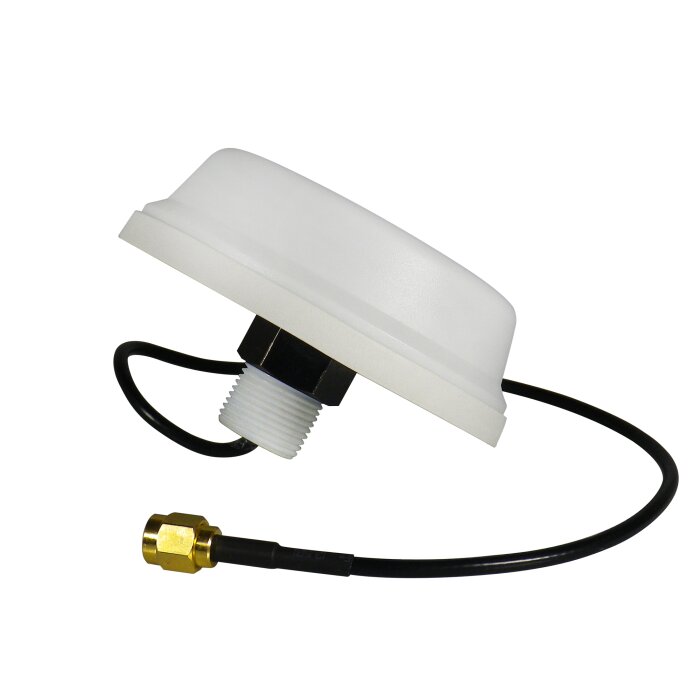

Dual-band 2.4 / 5GHz WiFi omnidirectional antenna designed for IoT, M2M, or automotive applications. This WiFiantenna is specifically designed for installation on ceilings, equipment cabinets, worktables, vending machines, machinery, or vehicles. The compact omnidirectional antenna has a gain of 3dBi in 2.4 GHz and 5dBi in 5 GHz WiFi frequency band. It features a compact, robust plastic housing (available in white or black) that complies with IP65 standards, allowing the antenna to be used outdoors without issues. The underside of the antenna has a 2.5cm plastic thread with a lock nut. A rubber lip on the edge of the housing provides additional protection against moisture. The antenna cable (available in 30cm or 150cm length) of type CLF100 comes with an RP-SMA connector.
ART7377 4251028604213 CA-2458-02
Antenna cable
Color
from
18,49 €
incl. 19% VAT , plus shipping costs (Standard)
  • Available immediately
Description

This compact dualband WiFi omni-directional antenna is designed for the 2.4 and 5GHz frequency band and supports all common WiFi standards within this frequency band (IEEE802.11 a/b/g/n/ac). The antenna is specifically designed for use in IoT, M2M, or automotive scenarios. It is available with a black or white housing and with either a 30cm or 150cm antenna cable.

The WiFi antenna is suitable for direct ceiling mounting, fixed installation on tables, vending machines, devices, machinery, or vehicles. On the underside of the antenna, there is a 2.5cm plastic thread with a lock nut for this purpose. A rubber lip on the edge of the housing provides additional protection against moisture. The antenna's housing is extremely robust and complies with the IP65 standard, allowing the antenna to be used outdoors without any issues in the long term.

The WiFi antenna is supplied with a CLF100 antenna cable with RP-SMA connector and can be directly connected to a WiFi device with an RP-SMA port.


Technical Specifications:

Antenna Type:Omni-directional Antenna
Gain:3dBi @ 2.4GHz
5dBi @ 5GHz
Impedance:50 Ohm
Frequency Range:2.4 GHz
5 GHz
VSWR:max. 1.7
Polarization:Vertical (Linear)

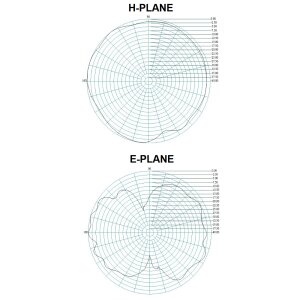

Signal Radiation Angle:360° Horizontal
360° Vertical
Application:Indoor and Outdoor
Housing meets IP65 standard
Connector:30cm or 150cm cable with RP-SMA connector

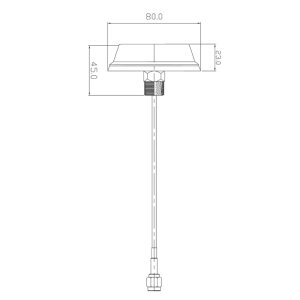

Dimensions:4.5 x 8 x 4.5 cm
Weight:80-100g
Color:White / Black
Operating Environment:-40°C to +80°C


Write the first review for this item and help others make a purchase decision!

There are no reviews yet.

Datasheet
