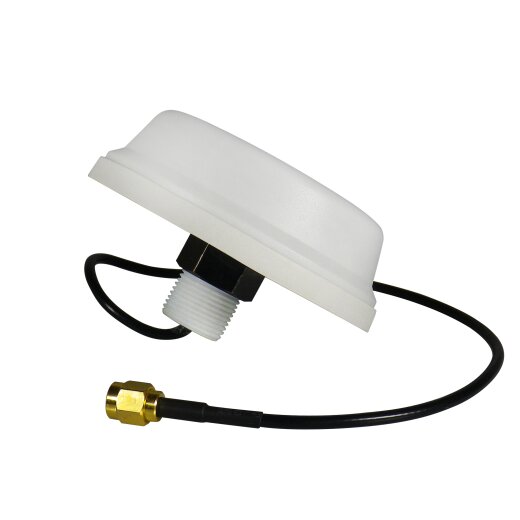

JARFT CA-24-04: Robust Wi-Fi for Machines & Vehicles
In the IoT and M2M (Machine-to-Machine) sector, antennas are often needed in places where normal rod antennas would break off or be in the way. The JARFT CA-24-04 solves this problem with its compact, durable design. It is not simply plugged on, but firmly screwed through the housing or roof.
Application: Industry & Vending
Vending machines, parking ticket machines, or digital billboards need a reliable connection but often stand outdoors or in public areas.
* Security: By screwing it from the inside (threaded spigot with nut), the antenna cannot be easily unscrewed or stolen from the outside.
* Connectivity: With 5 dBi gain, it penetrates even thicker housing walls or ensures reception when the machine is poorly positioned.
Application: Logistics & Automotive
Thanks to the wide temperature range (-40° to +80° C) and IP65 certification, the antenna is also at home on vehicles.
* Forklifts & AGVs: The antenna is compact enough not to get in the way on industrial trucks, but delivers the necessary Wi-Fi signal for the inventory management system.
* Robustness: Vibrations, splashing water, or dust cannot harm the housing. The rubber lip at the base reliably seals the drill hole.
Mounting & Connection
Installation is incredibly simple: Drill a hole, push the antenna through, tighten the nut from below – done. The hardwired CLF100 cable (Low Loss) is thin enough for tight radii but robust enough for continuous operation. The RP-SMA connector fits almost all common Wi-Fi routers and modules.
Technical Data
| Manufacturer / Model: | JARFT / CA-24-04 |
| Antenna Type: | WiFi Omnidirectional Antenna |
| Performance & Frequencies | |
| Frequency Range: | 2.4 GHz (2400 - 2485 MHz) |
| Standards: | IEEE 802.11 b/g/n (WiFi 4) / Bluetooth / ZigBee |
| Gain: | 5 dBi |
| VSWR: | < 1.8 |
| Impedanz: | 50 Ohm |

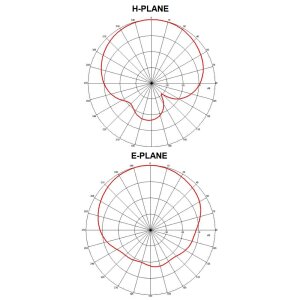

| Radiation: | 360° Horizontal (Omni) |
| Polarization: | Linear Vertical |
| Mechanical & Environmental | |
| Mounting: | Screw Mount (Threaded spigot 2.5 cm long) |
| Material: | Robust Plastic (ABS) |
| Protection Rating: | IP65 (Dust tight & Water resistant) |
| Temperature Range: | -40°C to +80°C |

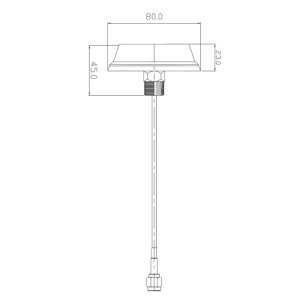

| Dimensions: | approx. 80 mm x 45 mm (H x W) |
| Weight: | approx. 80 - 100g |
| Cable & Connection | |
| Cable Type: | CLF100 (Low Loss) |
| Cable Length: | Selectable: 30cm or 150cm |
| Connector: | RP-SMA Plug (Male) |
Scope of Delivery
| 1 x JARFT CA-24-04 Antenna (Color & Length of choice) |
