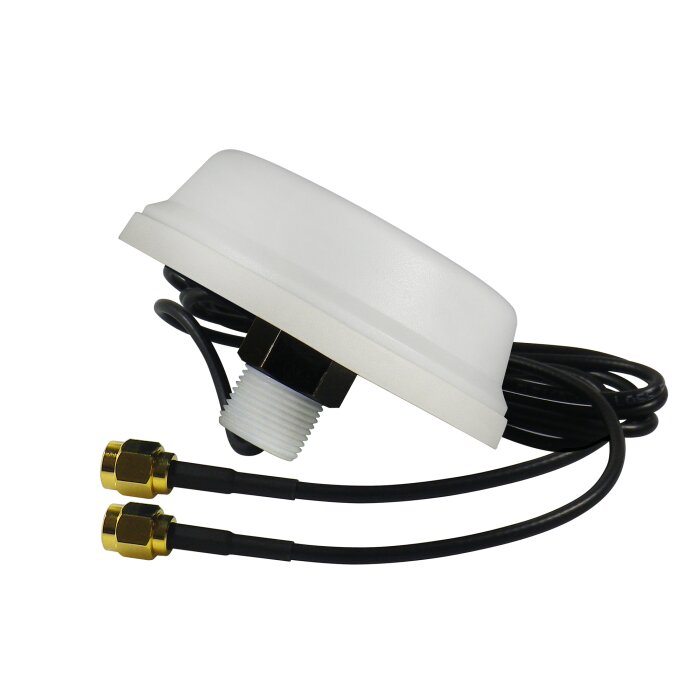

Multiband 4G Omni Antenna - 4dBi, 2x2 MIMO, IP65 Standard, M2M / IoT

Multiband 2x2 MIMO 4G Omni-directional Antenna for installation on ceilings, equipment cabinets, work tables, vending machines, machinery, or vehicles. The compact omni-directional antenna provides a gain of 1-4dBi and features a compact, sturdy, plastic housing (available in black and white) that complies with the IP65 standard. Therefore, the antenna can be easily used outdoors. On the underside of the 4G antenna, there is a 2.5cm long plastic thread with a lock nut. A rubber lip on the housing edge provides additional protection against the penetration of moisture into the object on which the antenna is mounted. The two antenna cables (available in 30cm and 150cm) of the RG174 type are each equipped with an SMA connector and can thus be connected to all common 4G routers or gateways.
ART7390 4251028604336 GPM-14-174
Antenna cable / Connector
Color
from
27,49 €
incl. 19% VAT , plus shipping costs (Standard)
  • Available immediately
Description

This compact 2x2 MIMO 4G Multiband Omni-directional Antenna is designed for all three 4G frequency bands (800 MHz, 1800 MHz, and 2600 MHz) and supports all common 4G standards within these frequency bands.

The 4G antenna is intended for direct ceiling mounting or fixed installation on tables or devices/machines. On the underside of the antenna, there is a 2.5cm long plastic thread with a lock nut. A rubber lip on the housing edge provides additional protection against moisture. The antenna's housing complies with the IP65 standard, allowing the 4G omni-directional antenna to be easily used outdoors. Due to the antenna's design, it is perfect for use in M2M and IoT scenarios.


Technical Specifications:

Antenna Type:Omni-directional Antenna
Gain:1dBi @ 700-960 MHz
4dBi @ 1700-2700 MHz
Impedance:50 Ohms
Frequency Range:LTE800, LTE1800, LTE2600
2x2 MIMO
VSWR:max. 1.8
Polarization:Vertical (Linear)

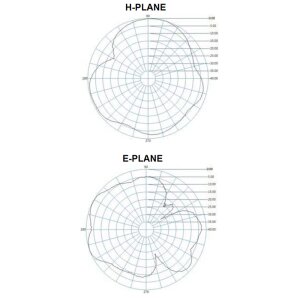

Signal Opening Angle:360° Horizontal
360° Vertical
Application Area:Indoor and Outdoor
Housing according to IP65 Standard
Connection:2 x RG-174 Cable with SMA Connecto (30cm or 150cm)r

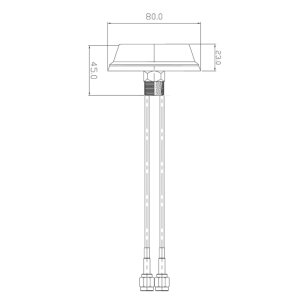

Dimensions:4.5 x 8 x 4.5 cm
Color:Black or White
Operating Environment:-40° to +80° C


Package Contents:

1 x Multiband 4G Antenna, 2x2 MIMO, 4dBi, SMA
