This WiFi sector antenna V-LINE 13 from Cyberbajt is designed for the 2.4 GHz frequency band (WiFi standard) and supports all common WiFi standards within this frequency band (IEEE802.11 b/g/n).
Since the signal is concentrated within the sector determined by the antenna's signal beamwidth, you can establish comprehensive WiFi coverage with this antenna. With a gain of 13 dBi, this antenna is designed for medium-range areas.
The antenna can be connected/operated with any WiFi devices that have an external antenna connector. Connection of the antenna to your WiFi device is via coaxial cable.
The antenna's housing is made of robust, weatherproof, and UV-resistant plastic. The backside of the antenna is made of stainless steel, allowing it to be used outdoors and withstand any weather conditions.

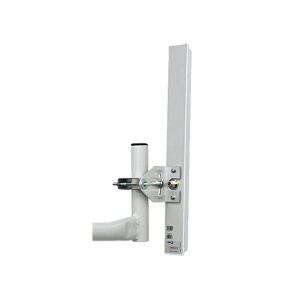

The antenna is intended for mounting on a mast or wall bracket (see mounting accessories). A pipe clamp (30mm - 50mm) is included in the delivery.
Technical Data:
| Manufacturer: | Cyberbajt |
| Model: | V-LINE 13 |
| Type of Antenna: | Sector Antenna |
| Gain: | 13dBi |
| Impedance: | 50 Ohm |
| Frequency: | 2400 - 2485 MHz (IEEE 802.11 b/g/n) |
| VSWR: | max 1.5 |
| Polarisation: | Vertical (Linear) |
| Beam width: | 180° Horizontal 20° Vertical |
| Connector: | N female |
| Appliance: | In- and Outdoor |
| Max input power: | 50W |
| Operating Temperature: | -30° to 75° C |
| Dimensions: | 47.5cm x 5.1cm x 3.3cm |
| Weight: | 280g |
| Color: | White |
Scope of delivery
| 1 x 2.4 GHz 13dBi WiFi Sector Antenna |
| 1 x Mounting kit with angle bracket and u-clamp for 30-50mm handles |
