The 90-Degree Solution: No More Kinked cables
Do you know the problem? Your Router is too close to the wall, the Antenna cables in the 19-Inch Racks can barely bend, or the 4G / 4G Outdoor Antennas is poorly mounted. A sharply kinked Cable not only looks unprofessional, but it also damages the internal structure and massively degrades your signal quality. This 90-degree Coaxial Adapters for 4G / 4G Antenna cables is the ingenious solution. It allows for clean and space-saving Cabling by changing the direction by exactly 90° – without compromising performance.
Maximum Signal Integrity for Your Connection
In high-frequency technology, every detail counts. That's why this Coaxial Adapters is uncompromisingly designed for performance. The impedance is precisely matched to 50 ohms to minimize signal reflections (VSWR). The dielectric made of high-quality PTFE (Teflon) and the gold-plated inner conductors ensure extremely low insertion loss. For you, this means the signal arrives at its destination as strong and clean as possible. Ideal for data-intensive applications like 5G Routers or high-performance WiFi Routers.
Built for Professional Use
This angle adapter is not a cheap disposable product. The robust, nickel-plated brass housing protects not only against corrosion but also against mechanical impacts. The design is rated for over 500 mating cycles, guaranteeing you a consistently reliable connection even with frequent reconnections. It reduces mechanical stress on the device's jack by diverting the Cable's weight and stiffness – an often underestimated factor for the longevity of your equipment.
Your Universal Helper in the 50-Ohm World
Whether you want to optimize your WiFi setup, connect a 4G / 4G Outdoor Antennas or 5G Antennas / Outdoor Antennas, or Cable measuring equipment in the lab – this Coaxial Adapters is the right choice. It connects two N-female jacks, making it perfect for connecting an Antenna Cables to a Router, a WiFi Repeaters, or another RF component. Important: Ensure your entire Network system is designed for 50 ohms, the standard in radio technology. It is not suitable for classic television (75 ohms).
Strengths & Notes at a Glance
- Pro: Solves space problems in tight installations and prevents cable breakage.
- Pro: Reduces mechanical stress on device jacks and extends their lifespan.
- Pro: High-quality materials guarantee low-loss signal transmission (low VSWR).
- Pro: Very robust and durable construction for continuous professional use.
- Note: Every Coaxial Adapters adds minimal attenuation, which should be considered with very weak signals.
- Note: For frequencies well above 6 GHz, special precision adapters are recommended.
Specifications & Features
| Manufacturer: | JARFT |
| Manufacturer Part Number (MPN): | N-13-10-TGN |
| EAN / GTIN: | 4251028601472 |
| Shop-SKU: | ART5851 |
| Product Type: | Coaxial Adapters |
| Connector 1: | N-Male |
| Connector 2: | N-Male |
| Design: | 90° Angled |
| Impedance: | 50 Ohm |
| Frequency Range: | DC to 6 GHz |
| VSWR (Voltage Standing Wave Ratio): | ≤ 1.25 |
| Insertion Loss: | approx. 0.1 dB - 0.15 dB @ 6 GHz |
| Housing Material: | Brass, nickel-plated |
| Inner Conductor / Contact Pin: | Brass or Beryllium Copper, gold-plated |
| Dielectric / Insulator: | PTFE (Polytetrafluoroethylene) |
| Mating Cycles: | ≥ 500 |
| Thread: | 5/8-24 UNEF |
| Inner Conductor Resistance: | ≤ 1 mΩ |
| Outer Conductor Resistance: | ≤ 1 mΩ |
| Insulation Resistance: | ≥ 5000 MΩ |
| Dielectric Withstanding Voltage: | 1000 V - 2500 V rms |
| Operating Temperature: | -55 °C to +155 °C |
| Protection Class (potential): | IP67 when screwed in |
| RoHS Compliance: | Yes |
| Weight (estimated): | approx. 70 g |
Scope of Delivery

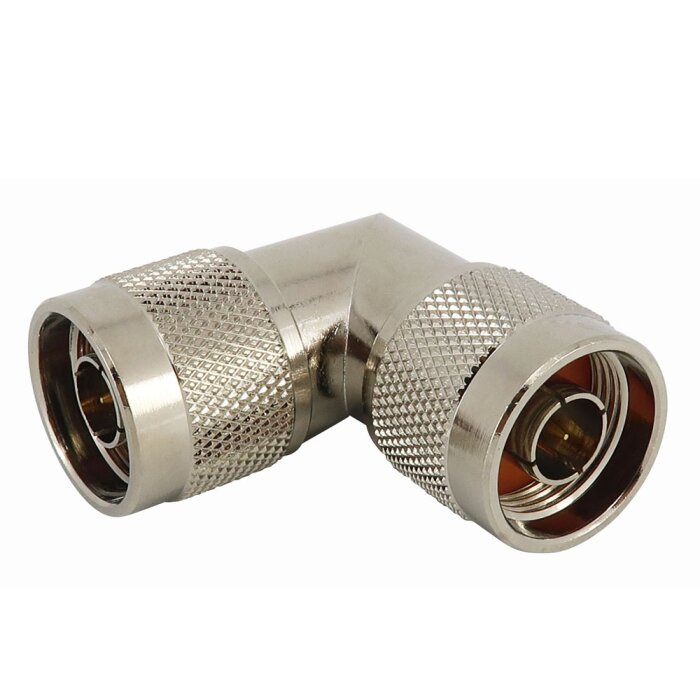

| 1 x JARFT Coaxial Adapters - N-Male to N-Male, 90° Angled (N-13-10-TGN) |
Frequently Asked Questions (FAQ)
Can I connect my WiFi Antenna Cables more space-efficiently to my router with this adapter?
Yes, absolutely! This adapter is made exactly for that. If your router and your Antenna Cables have N-sockets, you can connect the cable perfectly at a 90° angle with this angled adapter. This way, you prevent unsightly and damaging kinking of your cable.
Is the adapter weatherproof so I can use it outdoors with my antenna?
N-connectors are quite robust against moisture when screwed together. However, for a permanently weatherproof setup of your outdoor antenna, we recommend additionally wrapping the connection with self-vulcanizing sealing tape. This way, you give penetrating water no chance.
Does the 90° angle degrade the signal quality of my 5G or 4G connection?
Don't worry! With a high-quality adapter like this, the effects are so minimal that you won't notice them in practice. It's specifically designed so that the important 50-Ohm characteristic impedance is perfectly maintained, even 'around the corner'. So, your connection quality won't suffer.
I want to connect two Antenna Cables, both of which have an N-socket. Is this adapter right for me?
Yes, it's perfect for exactly that! This adapter has two N-plugs and thus connects two cables or devices that each have an N-socket (i.e., the female counterpart). With the 90° angle, you can achieve a super space-saving connection.
What material is the adapter made of, and why is that important for my connection?
We focus on quality you can feel. The housing is made of robust, nickel-plated brass, which protects it from corrosion. The crucial inner conductor is gold-plated. This ensures absolutely first-class and low-loss signal transmission, because gold doesn't rust and provides the best contact for your signal.
What does '50 Ohm' mean, and do I need to pay attention to it in my setup?
Absolutely, that's super important! 50 Ohm is the characteristic impedance, which is the standard for almost all radio applications like WiFi, 4G, or 5G. For your connection to work optimally, all your components – meaning your Antenna, Cables, and device – must also be designed for 50 Ohm. This way, you avoid signal losses. This adapter is not suitable for 75 Ohm TV technology.
