This compact 2x2 MIMO dual-band WiFi omnidirectional antenna is designed for the 2.4 GHz, 5 GHz, and the new 6 GHz frequency bands, supporting all common WiFi standards within this frequency range (IEEE 802.11 a/b/g/n/ac/ax). Due to the extended frequency range, this compact WiFi antenna can also be used for WiFi 6E applications.
The antenna is intended for direct ceiling mounting or fixed installation on tables, devices, or machines. On the underside of the WiFi antenna, there is a 2.5cm long plastic thread with a lock nut. A rubber lip on the housing edge provides additional protection against moisture. The antenna's housing complies with the IP65 standard, allowing it to be used as an outdoor antenna without any issues.
The WiFi antenna is supplied with two 150cm long cables (CLF100), each equipped with an RP-SMA connector, and can be directly connected to a WiFi device with an RP-SMA connection.
Technical Specifications:
| Antenna Type: | Omnidirectional Antenna |
| Gain: | 3dBi @ 2.4 GHz 3dBi @ 5 GHz 3dBi @ 6 GHz |
| Impedance: | 50 Ohms |
| Frequency Range: | 2.4 - 2.5 GHz 5.1 - 7.1 GHz 2x2 MIMO |
| VSWR: | max. 3 |
| Polarization: | Vertical (Linear) |
| Signal Opening Angle: | 360° Horizontal 360° Vertical |
| Application: | Indoor and Outdoor Housing according to IP65 Standard |
| Connection: | 2 x 150cm RG-174 Cable with RP-SMA Connector |

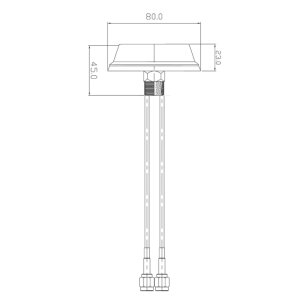

| Dimensions: | 4.5 x 8 x 4.5 cm |
| Weight: | approx. 100g |
| Color: | Black or White |
| Operating Environment: | -40° to +80° C |
Package Contents:
| 1 x 2.4 / 5 / 6 GHz WiFi 6E Antenna, 2x2 MIMO, 3dBi, 150cm, RP-SMA |
